KE70-ESCNS (1979)
Toyota Corolla
Production
Mar 1979
-
Aug 1981
Engine
4KU
Transmission
2FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8108)KE70 ; (8108- )AE70,KE70,73

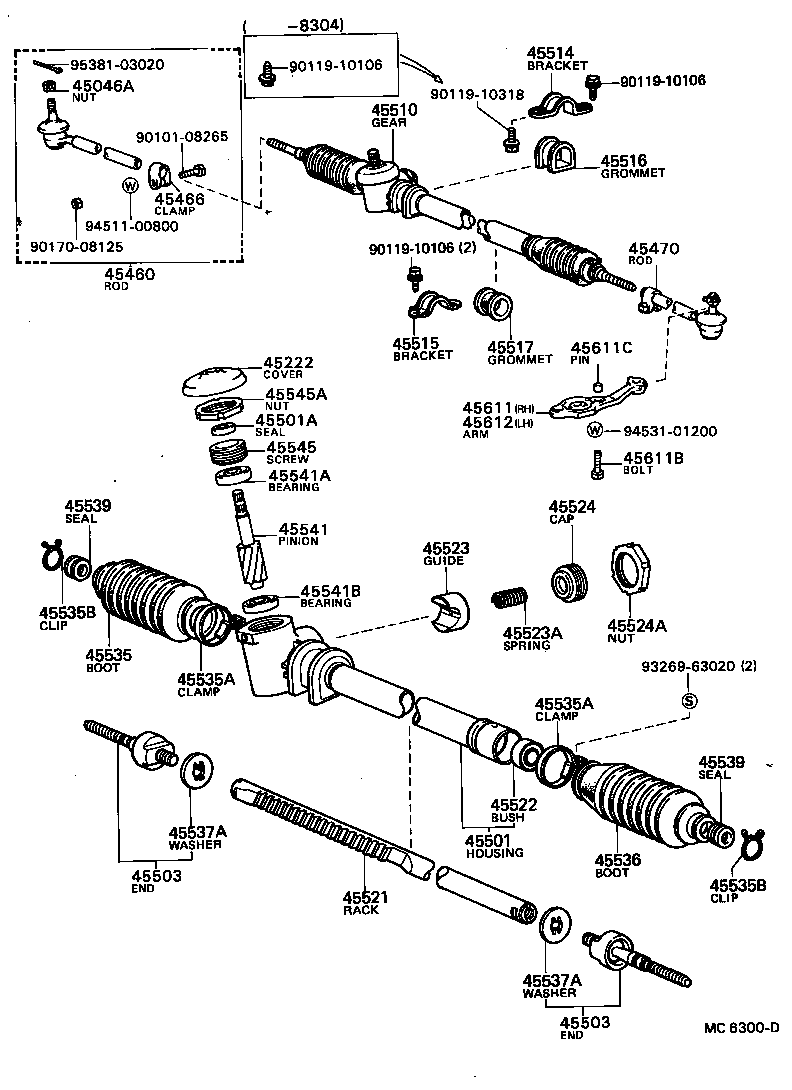

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-10030 |
KE70 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19125 |
KE70 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AE70,CE7#,KE7#,TE7# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19125 |
KE70 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-12070 |
KE70 |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
KE70 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19015 |
KE70 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19015 |
KE70 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-12010 |
KE70 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12010 |
KE70 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12010 |
KE70 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12020 |
KE70 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12020 |
KE70 |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-12030 |
KE70 |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-10030 |
KE70 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-10010 |
KE70 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
KE70 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
KE70 |
1 | ||
| 45524-10010 |
KE70 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36001 |
KE70 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12010 |
KE70 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
KE70 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
KE70 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-28002 |
KE70 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-28002 |
KE70 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-12010 |
KE70 |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
KE70 |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
KE70 |
2 | ||
| 45539 - GUIDE, REAR STEERING CONTROL CABLE, NO.1 | ||||
| 45539-10010 |
KE70 |
2 | ||
| 45539 - GUIDE, REAR STEERING CONTROL CABLE, NO.1 | ||||
| 45539-10010 |
KE70 |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-12011 |
KE70 |
1 | ||
| 45541-12010 |
KE70 |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
KE70 |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-15002 |
KE70 ID=15 |
1 | ||
| 90363-13001 |
KE70 ID=13 |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
KE70 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
KE70 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-12060 |
KE70 |
1 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12295 |
AE70,CE7#,KE7#,TE7# |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AE70,CE7#,KE7#,TE7# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-12060 |
KE70 |
1 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-10106 | ||||
| 90119-10318 | ||||
| 90170-08125 | ||||
| 93269-63020 | ||||
| 94511-00800 | ||||
| 94531-01200 | ||||
| 95381-03020 | ||||
