KE70-ELHNS (1981)
Toyota Corolla
Production
Aug 1981
-
Apr 1983
Engine
4KU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

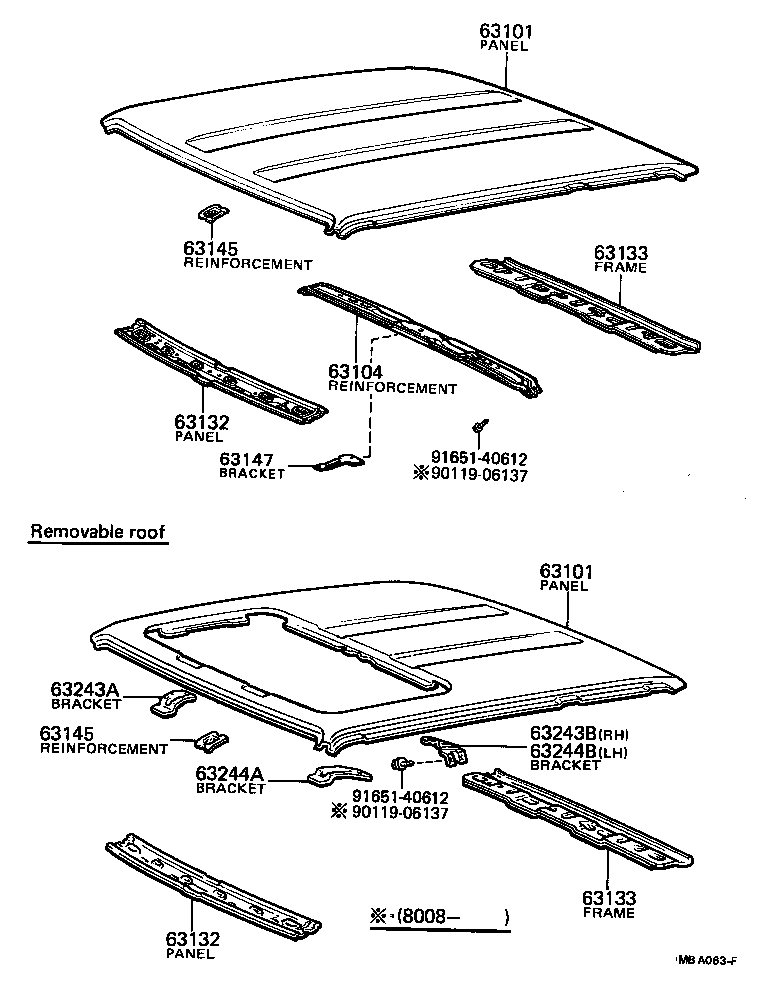

ILLUST NO. 1 OF 2(7903-8304)CP,LB
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-12160 |
AE70,KE70,TE70,71..LB |
1 | ||
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-12160 |
AE70,KE70,TE70,71..LB |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-12080 |
AE70,KE70,TE70,71..LB |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-12090 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-12090 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63105-12070 |
AE70,KE70,TE70,71..LB W/RR DEFOGGER,RR WIPER |
1 | ||
| 63105-12060 |
AE70,KE70..LB..(DX,GL,SX) W/DEFOGGER,W/O RR WIPER |
1 | ||
| 63105-12060 |
AE70,KE70,TE70..LB..(DX,GL) W/DEFOGGER,W/O RR WIPER |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63105-12070 |
AE70,KE70,TE70,71..LB W/RR DEFOGGER,RR WIPER |
1 | ||
| 63105-12060 |
AE70,KE70..LB..(DX,GL,SX) W/DEFOGGER,W/O RR WIPER |
1 | ||
| 63105-12060 |
AE70,KE70,TE70..LB..(DX,GL) W/DEFOGGER,W/O RR WIPER |
1 | ||
| 63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL | ||||
| 63145-12030 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL | ||||
| 63145-12030 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 91651-40612 | ||||
ILLUST NO. 2 OF 2(8108-8304)CP,LB
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 63297-12010 | ||||
| 90159-50074 | ||||
| 93229-55008 | ||||
| 93319-25014 | ||||
| 93520-24010 | ||||
| 94180-40600 | ||||
