KE70-ELCNS (1979)

Toyota Corolla

Production Mar 1979 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )KE70,74..ATM

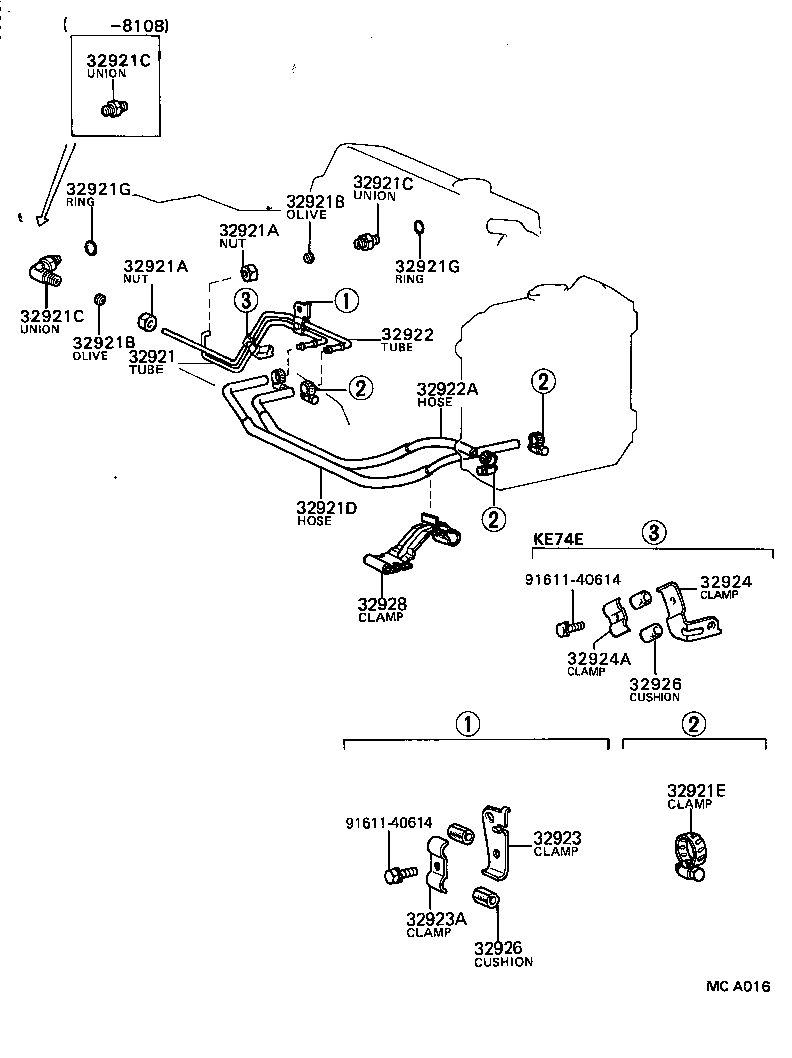

Click highlighted areas on diagram

diagram 32921 32921A 32921A 32921B 32921B 32921C 32921C 32921C 32921D 32921E 32921G 32921G 32922 32922A 32923 32923A 32924 32924A 32926 32926 32928 9161140614 9161140614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-10021

KE70..2FC

 1
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

AE70,CE70,71,KE70,74,TE70,73,74..ATM

 2
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

AE70,CE70,71,KE70,74,TE70,73,74..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

AE70,CE70,71,KE70,74,TE70,73,74..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

AE70,CE70,71,KE70,74,TE70,73,74..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13105

KE70..2FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13105

KE70..2FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13105

KE70..2FC

 2
32921D - HOSE(FOR OIL COOLER INLET)
32941-12030

KE70..2FC

 1
32941-12031

KE70..2FC

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

AE70,CE70,71,KE70,74,TE70,73,74..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-10021

KE70..2FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-12040

KE70..2FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-10020

KE70,74..ATM

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12085

CE70,71,KE70,74..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AE70,CE70,71,KE70,74,TE70,73,74..ATM

長さ=25,内径=8

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AE70,CE70,71,KE70,74,TE70,73,74..ATM

長さ=25,内径=8

 2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
90463-06600

CE70,KE70,TE70,73,74..ATM

 1
Common parts
91611-40614
