KE70-EEMNS (1979)

Toyota Corolla

Production Mar 1979 - Aug 1981
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )AE70,KE7#,TE7#..MTM

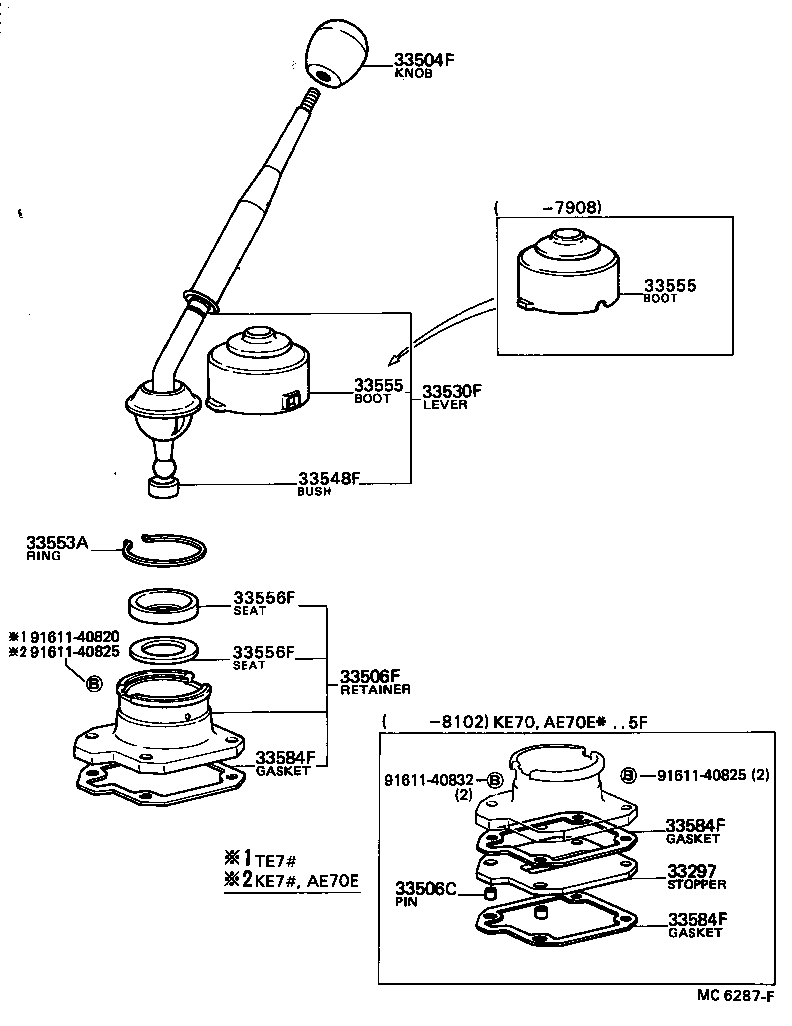

Click highlighted areas on diagram

diagram 33297 33504F 33506C 33506F 33530F 33548F 33553A 33555 33555 33556F 33556F 33584F 33584F 33584F 9161140820 9161140825 9161140825 9161140832
Part # Description Qty Price
33297 - STOPPER, SHIFT LEVER
33291-12010

KE70..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-1002014

AE70,KE70,TE70..5F..(GL,SL)

BLUE,BLUE,TRIM8#

 1
33504-1002001

AE70,KE70,TE70..5F..(GL,SL)

BLACK,BLACK,TRIM2#

 1
33504-1002005

AE70,KE70,TE70..SED..5F..GL

BEIGE,BEIGE,TRIM4#

 1
33504-12140

AE70,CE70,KE70,TE70..5F..SE

WOODY

 1
33506C - PIN, SHIFT LEVER RETAINER RING
90253-11001

KE70..5F

 2
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-14020

AE70,KE70,TE71..MTM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-12230

AE70,KE70,TE71..MTM

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-14010

AE70,KE7#,TE7#..MTM

 1
33553A - RING, SNAP (FOR SHIFT LEVER SPRING SHEET)
90521-49002

AE70,KE70,TE71..MTM

 1
33555 - BOOT, SHIFT LEVER
33555-20060

AE70,KE70,TE71..MTM

 1
33555 - BOOT, SHIFT LEVER
33555-20060

AE70,KE70,TE71..MTM

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-14020

AE70,KE7#,TE7#..MTM

T=3.0

 1
33556-14010

AE70,KE7#,TE7#..MTM

T=13.5

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-14020

AE70,KE7#,TE7#..MTM

T=3.0

 1
33556-14010

AE70,KE7#,TE7#..MTM

T=13.5

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-20010

AE70,KE7#,TE7#..MTM

T=0.3

 1
33584-12040

KE70..5F

T=0.5,LWR

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-20010

AE70,KE7#,TE7#..MTM

T=0.3

 1
33584-12040

KE70..5F

T=0.5,LWR

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-20010

AE70,KE7#,TE7#..MTM

T=0.3

 1
33584-12040

KE70..5F

T=0.5,LWR

 1
Common parts
91611-40820
91611-40825
91611-40832
