KE70-EEKNS (1979)

Toyota Corolla

Production Mar 1979 - Apr 1983
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(7903- )

Click highlighted areas on diagram

diagram 5585112090 87211 87211A 87211A 87211B 87211D 87211D 87212 87213 87214 87214 87214A 87214A 87215 87215 87215 87215A 87215A 9015960008 9018305094 9354014010 9354015016 9354055016 9354055016 9354055016 9354055016 9354055016 9354055016 9354055016 9356015014 9356015016 9356015016 9356015016 9356615514 9356755016
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87201-12020

AE70,CE7#,KE7#,TE7#

W/AIR MIX HEATER

 1
87211A - DUCT, AIR, NO.2
87211-12040

AE70,CE7#,KE7#,TE7#..SED,V,WG

W/AIR MIX HEATER

 1
87211A - DUCT, AIR, NO.2
87211-12040

AE70,CE7#,KE7#,TE7#..SED,V,WG

W/AIR MIX HEATER

 1
87211B - DUCT, AIR, NO.3
55086-12050

AE70,CE7#,KE7#,TE7#..SED,V,WG

 1
87212 - DUCT, AIR, REAR NO.1
87212-12040

AE70,KE70,TE70,71

 1
87213 - DUCT, AIR, REAR NO.2
87203-12010

AE70,KE70,TE70,71

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-12070

AE70,CE7#,KE7#,TE7#..SED,V,WG

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-12070

AE70,CE7#,KE7#,TE7#..SED,V,WG

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-12070

AE70,CE7#,KE7#,TE7#..SED,V,WG

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-12070

AE70,CE7#,KE7#,TE7#..SED,V,WG

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-12050

AE70,KE7#,TE7#..SED,V

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-12050

AE70,KE7#,TE7#..SED,V

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-12050

AE70,KE7#,TE7#..SED,V

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55088-12050

AE70,KE7#,TE7#..SED,V

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55088-12050

AE70,KE7#,TE7#..SED,V

 1
Common parts
55851-12090
90159-60008
90183-05094
93540-14010
93540-15016
93540-55016
93560-15014
93560-15016
93566-15514
93567-55016

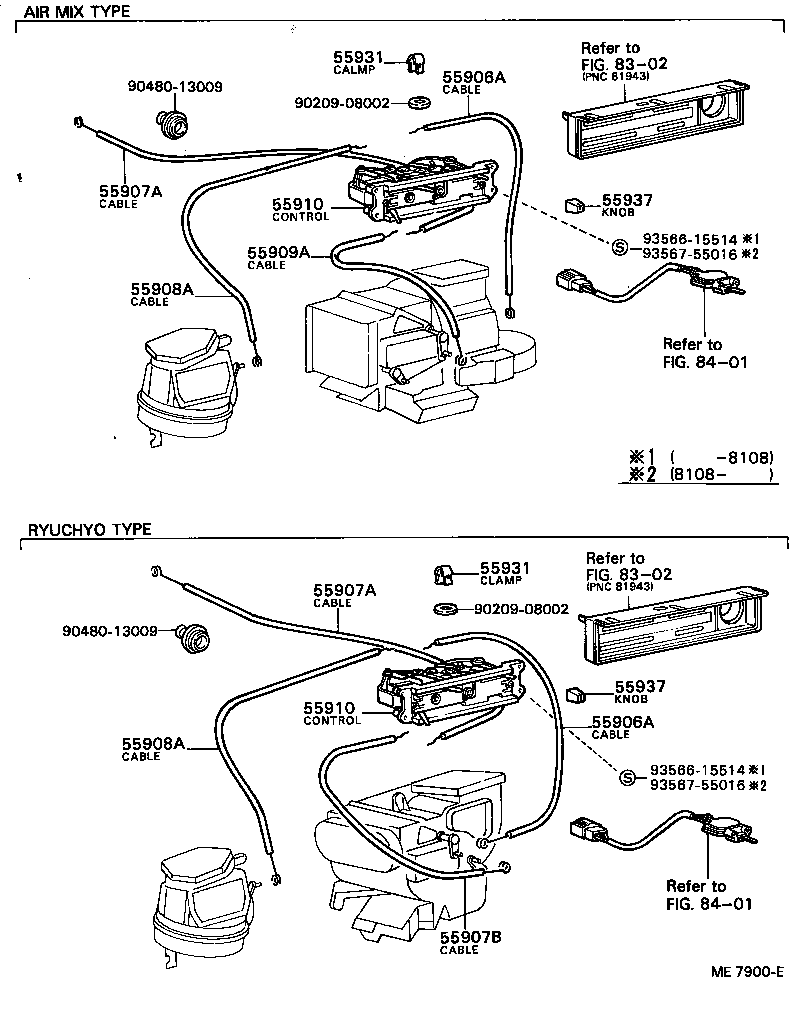

ILLUST NO. 2 OF 3(7903- )

Click highlighted areas on diagram

diagram 55906A 55906A 55907A 55907A 55907B 55908A 55908A 55909A 55910 55910 55931 55931 55937 55937 8302 8302 8401 8401 9020908002 9020908002 9048013009 9048013009 9356615514 9356615514 9356755016 9356755016
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12120

AE70,CE7#,KE7#,TE7#..SED,V,WG

L=380,AIR MIX HEATER

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12120

AE70,CE7#,KE7#,TE7#..SED,V,WG

L=380,AIR MIX HEATER

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12100

AE70,CE7#,KE7#..SED,V,WG

L=620

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12100

AE70,CE7#,KE7#..SED,V,WG

L=620

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12110

AE70,CE7#,KE7#,TE7#..SED,V,WG

L=730

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12110

AE70,CE7#,KE7#,TE7#..SED,V,WG

L=730

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55907-12090

AE70,CE7#,KE7#,TE7#..SED,V,WG

L=420

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12926

AE70,KE7#,TE7#

W/AIR MIX HEATER

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12926

AE70,KE7#,TE7#

W/AIR MIX HEATER

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-14020

AE70,KE7#,TE70,71

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-14020

AE70,KE7#,TE70,71

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-12060

AE70,CE7#,KE7#,TE7#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-12060

AE70,CE7#,KE7#,TE7#

 4
Common parts
90209-08002
90480-13009
93566-15514
93567-55016
Linked diagrams
8302
8401
