KE70-EEKNS (1979)

Toyota Corolla

Production Mar 1979 - Apr 1983
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )4K#

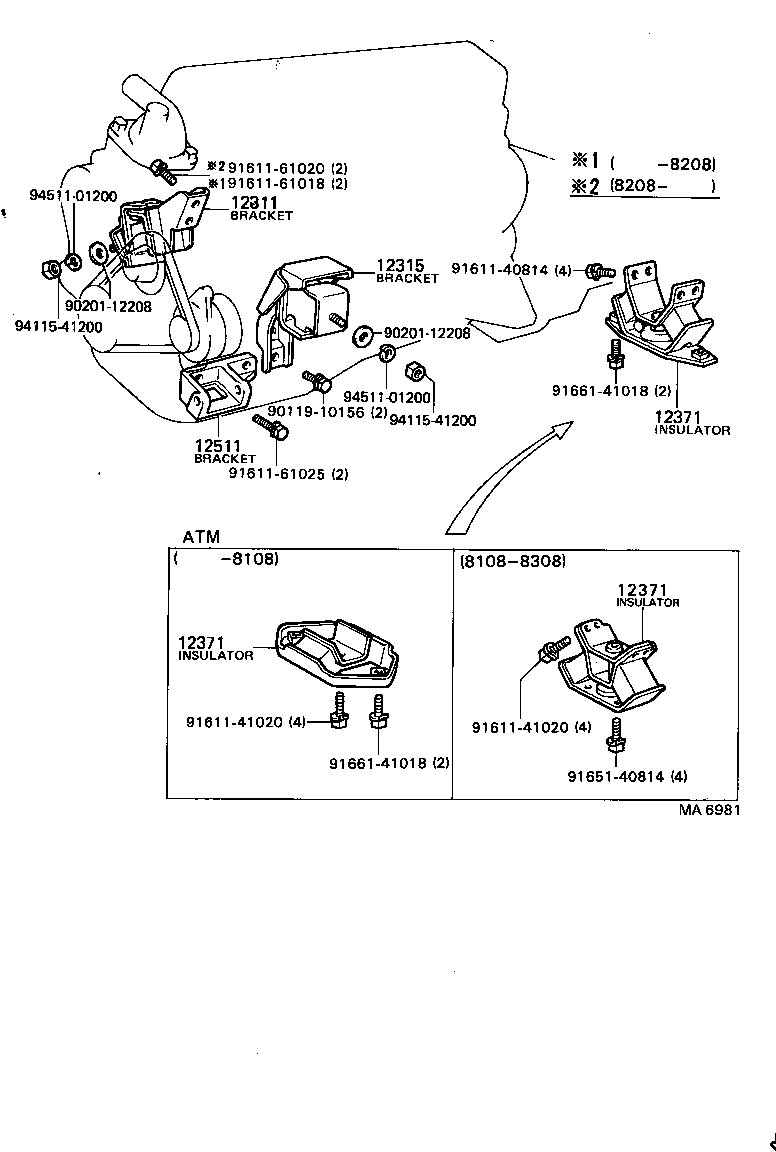

Click highlighted areas on diagram

diagram 12311 12315 12371 12371 12371 12511 9011910156 9020112208 9020112208 9161140814 9161141020 9161141020 9161161018 9161161020 9161161025 9165140814 9166141018 9166141018 9411541200 9411541200 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-13020

4K#..KE70,71,72,73

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-13042

4K#..KE7#

 1
12302-13070

4K#..KE7#

 1
12302-13043

4K#..KE7#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13030

4K#..KE70,71,72,73..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13030

4K#..KE70,71,72,73..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13030

4K#..KE70,71,72,73..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-24011

4K#,5KJ..KE7#

 1
Common parts
90119-10156
90201-12208
91611-40814
91611-41020
91611-61018
91611-61020
91611-61025
91651-40814
91661-41018
94115-41200
94511-01200
