KE70-EEHNS (1981)

Toyota Corolla

Production Aug 1981 - Apr 1983
Engine 4KU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )KE7#

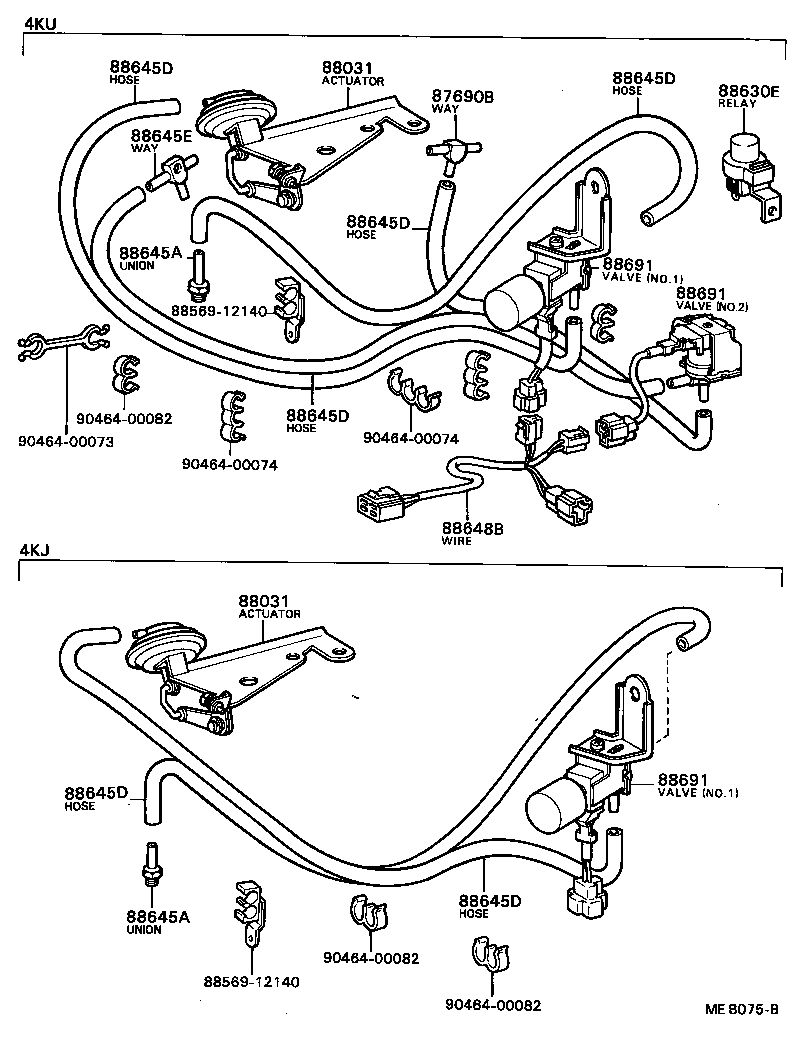

Click highlighted areas on diagram

diagram 87690B 88031 88031 8856912140 8856912140 88630E 88645A 88645A 88645D 88645D 88645D 88645D 88645D 88645D 88645E 88648B 88691 88691 88691 9046400073 9046400074 9046400074 9046400082 9046400082 9046400082
Part # Description Qty Price
87690B - WAY, 3
90414-04002

KE70

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12081

KE7#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12081

KE7#

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12150

KE7#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12150

KE7#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12150

KE7#

 1
Common parts
88569-12140
90464-00073
90464-00074
90464-00082
