KE70-EEHDS (1981)
Toyota Corolla
Production
Aug 1981
-
Apr 1983
Engine
4KU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )KE72,74 ; (8108- )KE70..3FC

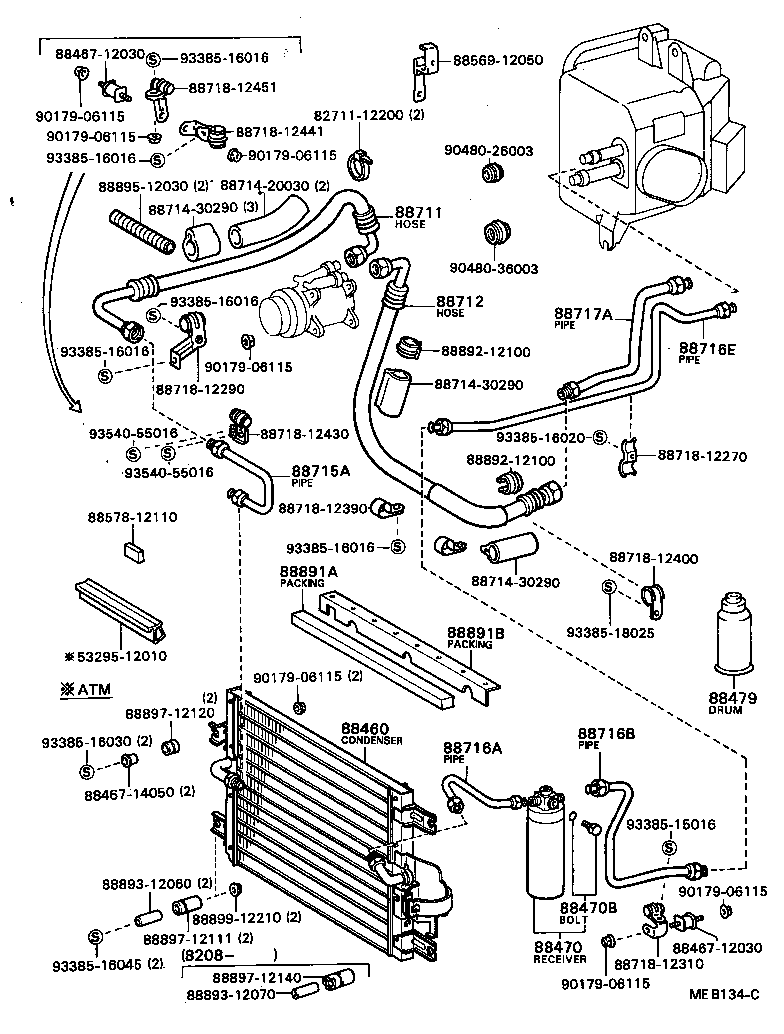

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12110 |
KE70 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12061 |
KE70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AE70,CE7#,KE7#,TE7# 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12140 |
KE70 |
1 | ||
| 88711-12200 |
KE72;KE70..3FC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12290 |
KE70 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-12160 |
KE70..3FC;KE72,TE7# |
1 | ||
| 88715-12120 |
KE70 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-12430 |
KE70 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-12440 |
KE70 |
1 | ||
| 88716-12570 |
KE70..3FC;KE72,TE7# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12110 |
KE70 |
1 | ||
| 88717-12130 |
KE70..3FC |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53291-12030 |
KE7# |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 53381-12100 |
AE70,KE70,TE71 |
1 | ||
| Common parts | ||||
| 53295-12010 | ||||
| 82711-12200 | ||||
| 88467-12030 | ||||
| 88467-14050 | ||||
| 88569-12050 | ||||
| 88578-12110 | ||||
| 88714-20030 | ||||
| 88714-30290 | ||||
| 88718-12270 | ||||
| 88718-12290 | ||||
| 88718-12310 | ||||
| 88718-12390 | ||||
| 88718-12400 | ||||
| 88718-12430 | ||||
| 88718-12441 | ||||
| 88718-12451 | ||||
| 88892-12100 | ||||
| 88893-12060 | ||||
| 88893-12070 | ||||
| 88895-12030 | ||||
| 88897-12111 | ||||
| 88897-12120 | ||||
| 88897-12140 | ||||
| 88899-12210 | ||||
| 90179-06115 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-15016 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-16030 | ||||
| 93385-16045 | ||||
| 93385-18025 | ||||
| 93540-55016 | ||||
