KE70-EDKRS (1979)

Toyota Corolla

Production Mar 1979 - Apr 1983
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )AE70,KE7#

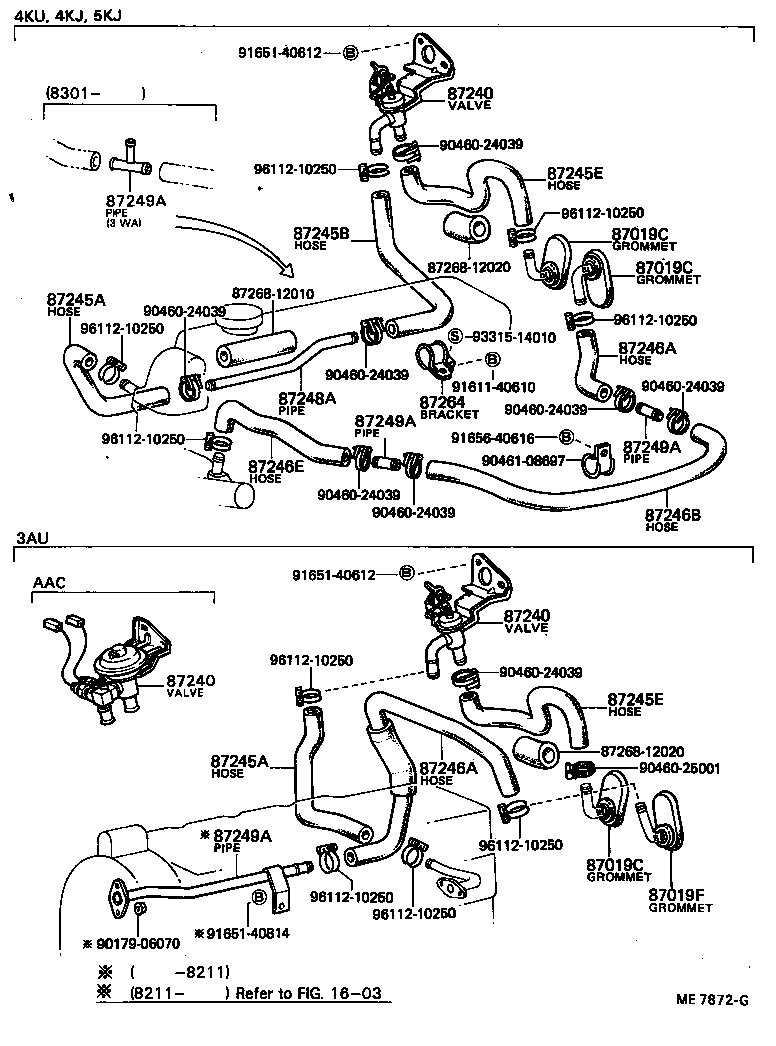

Click highlighted areas on diagram

diagram 1603 87019C 87019C 87019C 87019F 87240 87240 87240 87245A 87245A 87245B 87245E 87245E 87246A 87246A 87246B 87246E 87248A 87249A 87249A 87249A 87249A 87264 8726812010 8726812020 8726812020 9017906070 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046025001 9046108697 9161140610 9165140612 9165140612 9165140814 9165640616 9331514010 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

CE7#,KE7#,TE7#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

CE7#,KE7#,TE7#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

CE7#,KE7#,TE7#

 2
87240 - VALVE ASSY, HEATER WATER
87240-12130

CE72,KE70,73..CTD,DX,STD

W/RYUCHYO HEATER

 1
87240-12100

AE70,CE7#,KE7#

 1
87240 - VALVE ASSY, HEATER WATER
87240-12130

CE72,KE70,73..CTD,DX,STD

W/RYUCHYO HEATER

 1
87240-12100

AE70,CE7#,KE7#

 1
87240 - VALVE ASSY, HEATER WATER
87240-12130

CE72,KE70,73..CTD,DX,STD

W/RYUCHYO HEATER

 1
87240-12100

AE70,CE7#,KE7#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12261

KE7#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12261

KE7#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-12360

KE7#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12350

AE70,CE7#,KE7#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12350

AE70,CE7#,KE7#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12380

KE7#,TE70,73,74

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12380

KE7#,TE70,73,74

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-12470

KE7#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-12370

KE7#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-12150

KE7#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14090

KE7#,TE7#

 2
87249A - PIPE, HEATER WATER OUTLET, A
87248-14090

KE7#,TE7#

 2
87249A - PIPE, HEATER WATER OUTLET, A
87248-14090

KE7#,TE7#

 2
87249A - PIPE, HEATER WATER OUTLET, A
87248-14090

KE7#,TE7#

 2
87264 - BRACKET, HEATER WATER HOSE
87263-12130

KE7#

 1
Common parts
87268-12010
87268-12020
90179-06070
90460-24039
90460-25001
90461-08697
91611-40610
91651-40612
91651-40814
91656-40616
93315-14010
96112-10250
Linked diagrams
1603
