KE70-EDKNS (1979)

Toyota Corolla

Production Mar 1979 - Aug 1981
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8108)SED,V

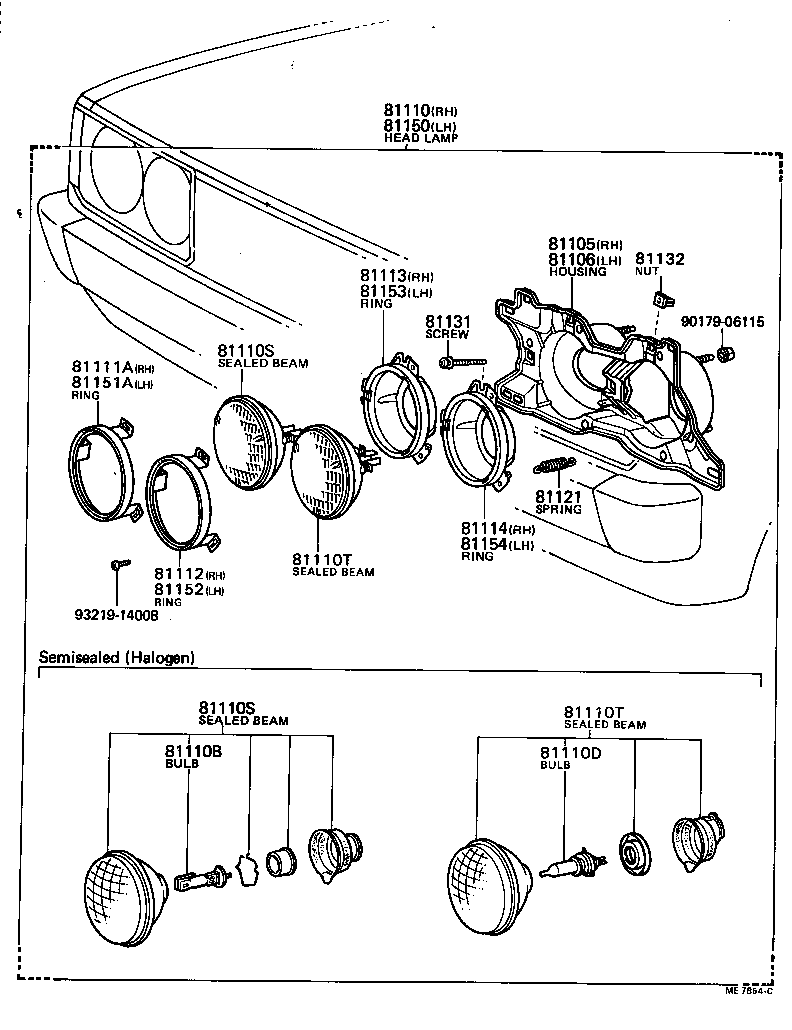

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110D 81110S 81110S 81110T 81110T 81111A 81112 81113 81114 81121 81131 81132 81150 81151A 81152 81153 81154 9017906115 9321914008
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-12550

AE70,KE7#,TE7#..SED,V

KOITO

 1
81105-12560

AE70,KE7#,TE7#..SED,V

IKI

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-12490

AE70,KE7#,TE7#..SED,V

IKI

 1
81106-12480

AE70,KE7#,TE7#..SED,V

KOITO

 1
81110 - HEADLAMP ASSY, RH
81110-80022

AE70,KE7#,TE7#..SED,V

IKI

 1
81110-80021

AE70,KE7#,TE7#..SED,V

KOITO

 1
81110S - SEALED BEAM UNIT, NO.1
90981-02039

AE70,KE7#,TE7#..SED,V

12V 37.5W,*WB,12V 37.5W,IKI

 2
90981-02011

AE70,KE7#,TE7#..SED,V

12V 37.5W,*WB,12V 37.5W,KOITO

 2
81110S - SEALED BEAM UNIT, NO.1
90981-02039

AE70,KE7#,TE7#..SED,V

12V 37.5W,*WB,12V 37.5W,IKI

 2
90981-02011

AE70,KE7#,TE7#..SED,V

12V 37.5W,*WB,12V 37.5W,KOITO

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02040

AE70,KE7#,TE7#..SED,V

12V 37.5/50W,*WB,12V 37.5/50W,IKI

 2
90981-02012

AE70,KE7#,TE7#..SED,V

12V 37.5/50W,*WB,12V 37.5/50W,KOITO

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02040

AE70,KE7#,TE7#..SED,V

12V 37.5/50W,*WB,12V 37.5/50W,IKI

 2
90981-02012

AE70,KE7#,TE7#..SED,V

12V 37.5/50W,*WB,12V 37.5/50W,KOITO

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-14261

AE70,KE7#,TE7#..SED,V

IKI

 1
81111-20280

AE70,KE7#,TE7#..SED,V

KOITO

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81111-20280

AE70,KE7#,TE7#..SED,V

KOITO

 1
81111-14261

AE70,KE7#,TE7#..SED,V

IKI

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-20100

AE70,KE7#,TE7#..SED,V

KOITO

 1
81113-14260

AE70,KE7#,TE7#..SED,V

IKI

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81154-20100

AE70,KE7#,TE7#..SED,V

KOITO

 1
81154-14260

AE70,KE7#,TE7#..SED,V

IKI

 1
81121 - SPRING, HEADLAMP TENSION
90506-18018

AE70,KE7#,TE7#..SED,V

IKI

 4
81121-20100

AE70,KE7#,TE7#..SED,V

KOITO

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20053

AE70,KE7#,TE7#..SED,V

IKI

 8
81131-20043

AE70,KE7#,TE7#..SED,V

KOITO

 8
81132 - NUT, HEADLAMP SELF LOCKING
81132-20380

AE70,KE7#,TE7#..SED,V

IKI

 8
81150 - HEADLAMP ASSY, LH
81150-80021

AE70,KE7#,TE7#..SED,V

KOITO

 1
81150-80022

AE70,KE7#,TE7#..SED,V

IKI

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20280

AE70,KE7#,TE7#..SED,V

KOITO

 1
81111-14261

AE70,KE7#,TE7#..SED,V

IKI

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81111-14261

AE70,KE7#,TE7#..SED,V

IKI

 1
81111-20280

AE70,KE7#,TE7#..SED,V

KOITO

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-20100

AE70,KE7#,TE7#..SED,V

KOITO

 1
81153-14260

AE70,KE7#,TE7#..SED,V

IKI

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81114-20100

AE70,KE7#,TE7#..SED,V

KOITO

 1
81114-14260

AE70,KE7#,TE7#..SED,V

IKI

 1
Common parts
90179-06115
93219-14008
