KE70-EDKDS (1979)

Toyota Corolla

Production Mar 1979 - Apr 1983
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )KE70,71,72,73..MTM

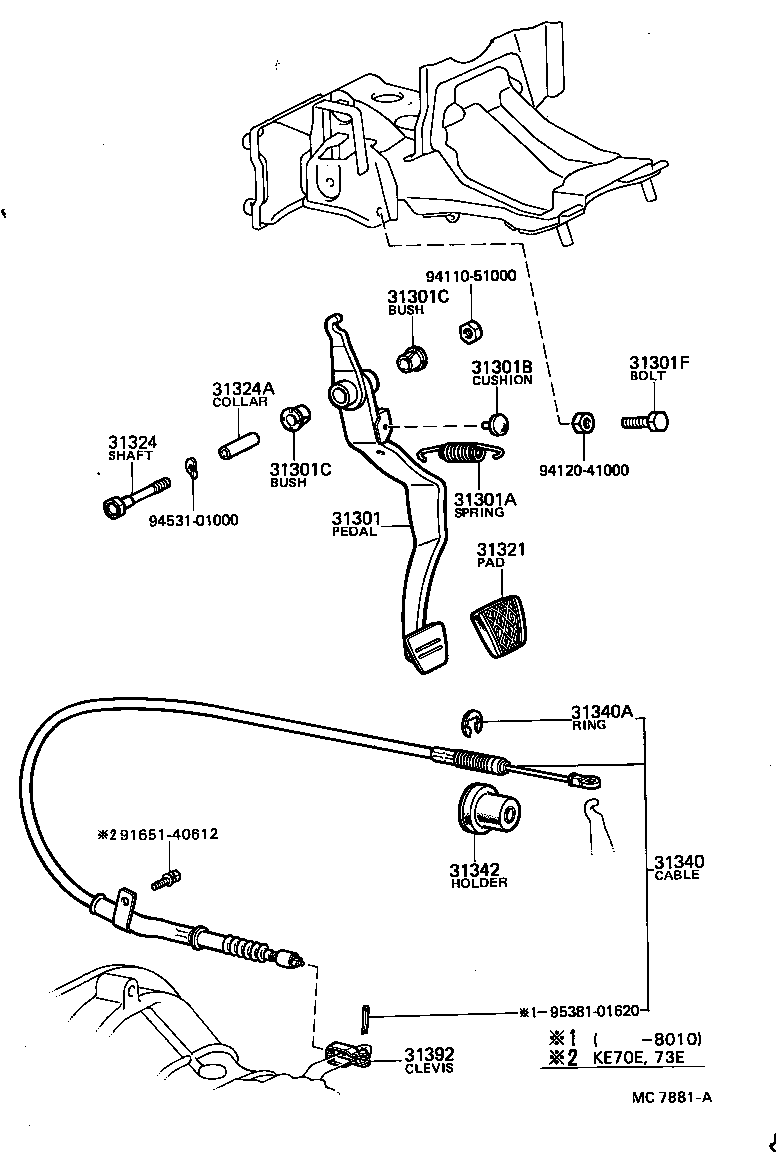

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31340 31340A 31342 31392 9165140612 9411051000 9412041000 9453101000 9538101620
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12120

KE70..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14003

AE70,CE7#,KE7#,TE7#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

AE70,CE7#,KE7#,TE7#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

AE70,CE7#,KE7#,TE7#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

AE70,CE7#,KE7#,TE7#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AE70,CE7#,KE7#,TE7#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-12030

AE70,CE7#,KE7#,TE7#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

AE70,CE7#,KE7#,TE7#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

AE70,CE7#,KE7#,TE7#..MTM

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-19205

KE70,73..MTM

 1
31340A - RING, E(FOR CLUTCH RELEASE CABLE)
96160-01200

AE70,KE70,71,72,73..MTM

 1
31342 - HOLDER, CLUTCH CABLE, INNER
31342-12901

AE70,KE70..MTM

 1
31392 - CLEVIS, CLUTCH CABLE
31392-10010

KE7#..MTM

 1
31392-10010

AE70,KE7#..MTM

 1
Common parts
91651-40612
94110-51000
94120-41000
94531-01000
95381-01620
