KE70-EDCNS (1979)

Toyota Corolla

Production Mar 1979 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )4K#,5KJ

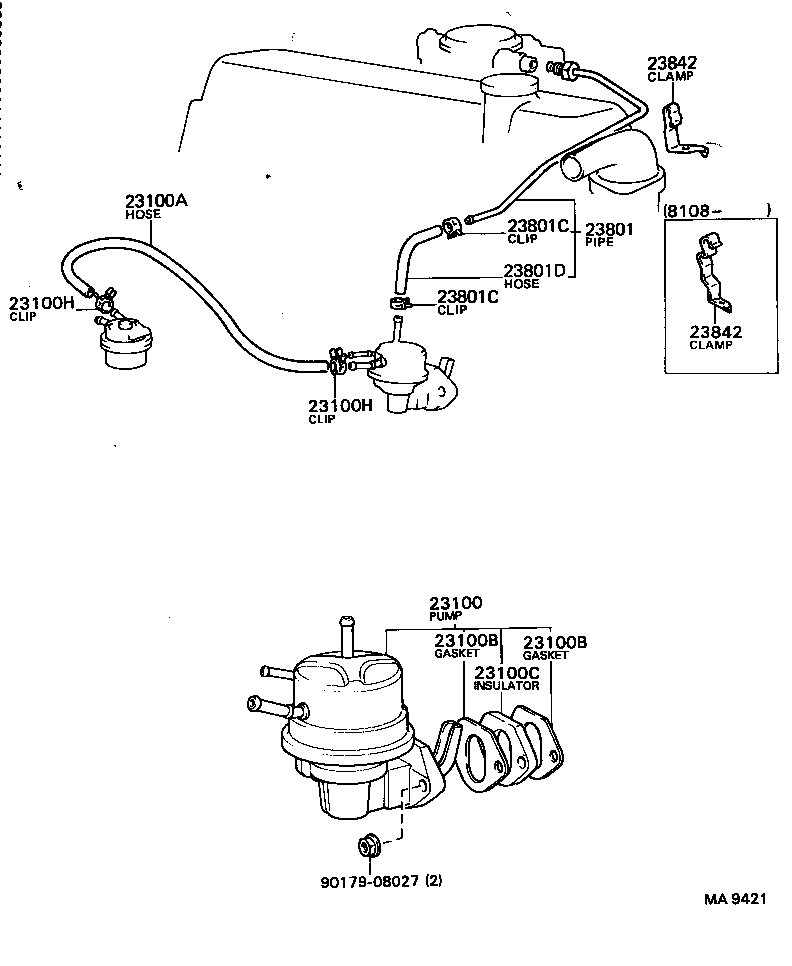

Click highlighted areas on diagram

diagram 23100 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801C 23801C 23801D 23842 23842 9017908027
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-19085

4KU..KE70

 1
23100A - HOSE, FUEL
95332-06040

4K#,5KJ..KE7#

*H,L=320

 1
23100B - GASKET, FUEL PUMP
90923-05006

4K#,5KJ..KE7#

 2
23100B - GASKET, FUEL PUMP
90923-05006

4K#,5KJ..KE7#

 2
23100C - INSULATOR, FUEL PUMP
90923-06003

4K#,5KJ..KE7#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

4K#,5KJ..KE7#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

4K#,5KJ..KE7#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-13050

4K#..KE7#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

4K#,5KJ..KE7#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

4K#,5KJ..KE7#

 2
23801D - HOSE, FUEL PIPE, NO.1
95332-06010

4K#..KE7#

*H,L=70

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
90461-08532

4K#..KE7#

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
90461-08532

4K#..KE7#

 1
Common parts
90179-08027
