KE70-EDCDS (1979)

Toyota Corolla

Production Mar 1979 - Aug 1981
Engine 4KU
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8304)SED..2D

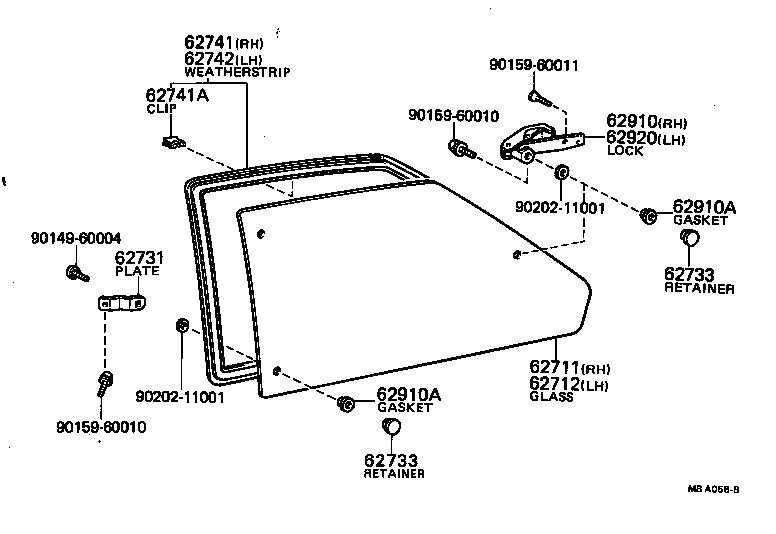

Click highlighted areas on diagram

diagram 62711 62712 62731 62733 62733 62741 62741A 62742 62910 62910A 62910A 62920 9014960004 9015960010 9015960010 9015960011 9020211001 9020211001
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-12270

KE70..SED..(DX,GL)..2D

*TT,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-12270

KE70..SED..(DX,GL)..2D

*TT,T=4.0

 1
62731 - PLATE, QUARTER OR SIDE WINDOW HINGE
62731-12070

KE7#,TE73..(SED,V)..2D

 4
62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE
62735-12010

KE7#,TE73..(SED,V)..2D

 6
62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE
62735-12010

KE7#,TE73..(SED,V)..2D

 6
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-12090

KE70..SED..2D

 1
62741A - CLIP, QUARTER WINDOW WEATHERSTRIP
62759-12010

KE7#,TE73..(SED,V)..2D

 10
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-12090

KE70..SED..2D

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-16010

KE70..SED..2D

 1
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
90385-11001

KE7#,TE73..(SED,V)..2D

 6
62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
90385-11001

KE7#,TE73..(SED,V)..2D

 6
62920 - LOCK ASSY, QUARTER WINDOW, LH
62920-16010

KE70..SED..2D

 1
Common parts
90149-60004
90159-60010
90159-60011
90202-11001
