KE70-ECMSS (1979)
Toyota Corolla

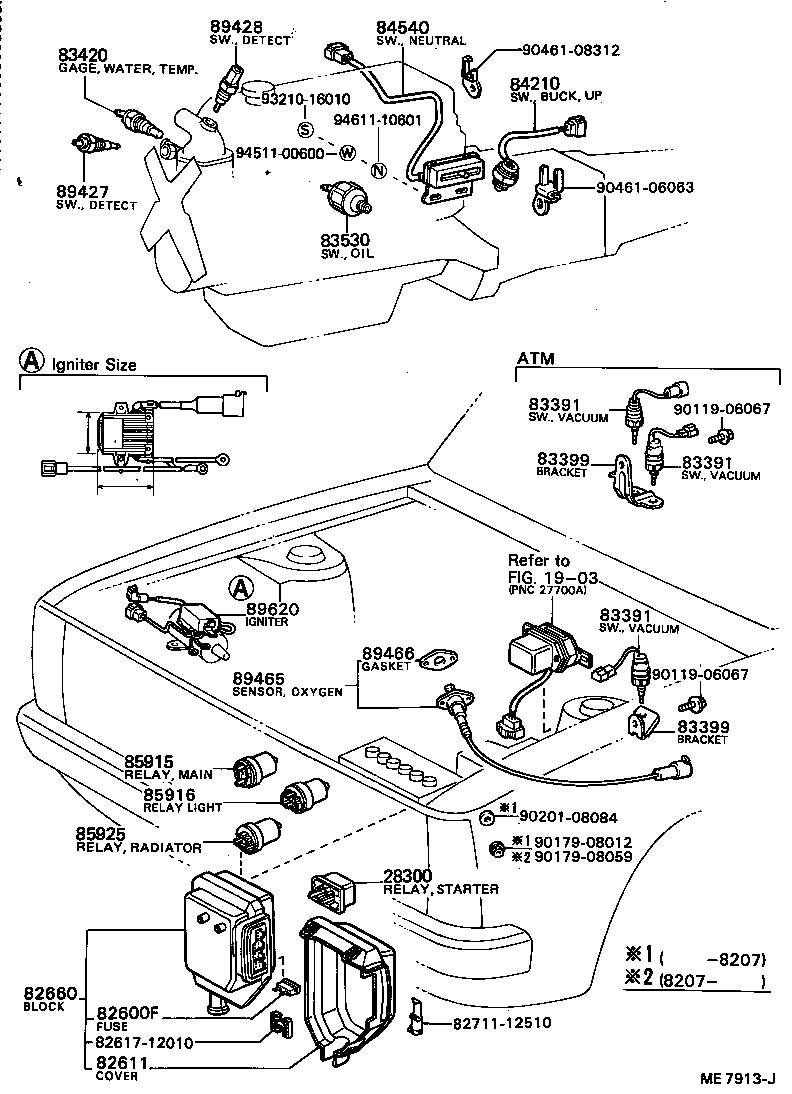

ILLUST NO. 1 OF 5(7903- )KE7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
AE70,KE7#,TE7# 5A,5A |
3 | ||
| 90982-09001 |
AE70,KE7#,TE7# 5A,5A |
2 | ||
| 90982-09002 |
AE70,CE7#,KE7#,TE7# 10A,10A |
9 | ||
| 90982-09003 |
AE70,CE7#,KE7#,TE7# 15A,15A |
6 | ||
| 90982-09004 |
AE70,CE7#,KE7#,TE7# 20A,黄,20A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12080 |
AE70,KE70,TE71 RH,COWL SIDE |
1 | ||
| 82611-12081 |
AE70,KE7#,TE7# RH,COWL SIDE |
1 | ||
| 82661-12010 |
AE70,KE7#,TE7# ENGINE ROOM |
1 | ||
| 82661-12011 |
AE70,KE7#,TE7# ENGINE ROOM |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-12080 |
AE70,KE7#,TE7# |
1 | ||
| 82660-12010 |
AE70,KE7#,TE7# |
1 | ||
| 82660-12011 |
AE70,KE7#,TE7# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
AE70,KE70,TE71 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
TE71..4D;AE70,KE7#,TE70,73..CTD,DX,GL,SE,SL,STD |
1 | ||
| 83530-10020 |
AE70,KE7#,TE70,73..CTD,DX,GL,SE,SL,STD |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10060 |
AE70,KE7#..MTM |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02001 |
AE70,KE7#,TE7# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
AE70,KE7#,TE7# |
2 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
KE70 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10040 |
KE70 COOLING FAN,COLD SPEC,MARK=98B |
1 | ||
| 89428-30030 |
KE70 COOLING FAN,MARK=95B |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-12130 |
KE70 SIZE=71X68.5 |
1 | ||
| 89620-12140 |
KE70 SIZE=78X54 |
1 | ||
| 89620-12230 |
KE70 SIZE=59X43 |
1 | ||
| Common parts | ||||
| 82617-12010 | ||||
| 82711-12510 | ||||
| 90119-06067 | ||||
| 90179-08012 | ||||
| 90179-08059 | ||||
| 90201-08084 | ||||
| 90461-06063 | ||||
| 90461-08312 | ||||
| 93210-16010 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 1903 | ||||

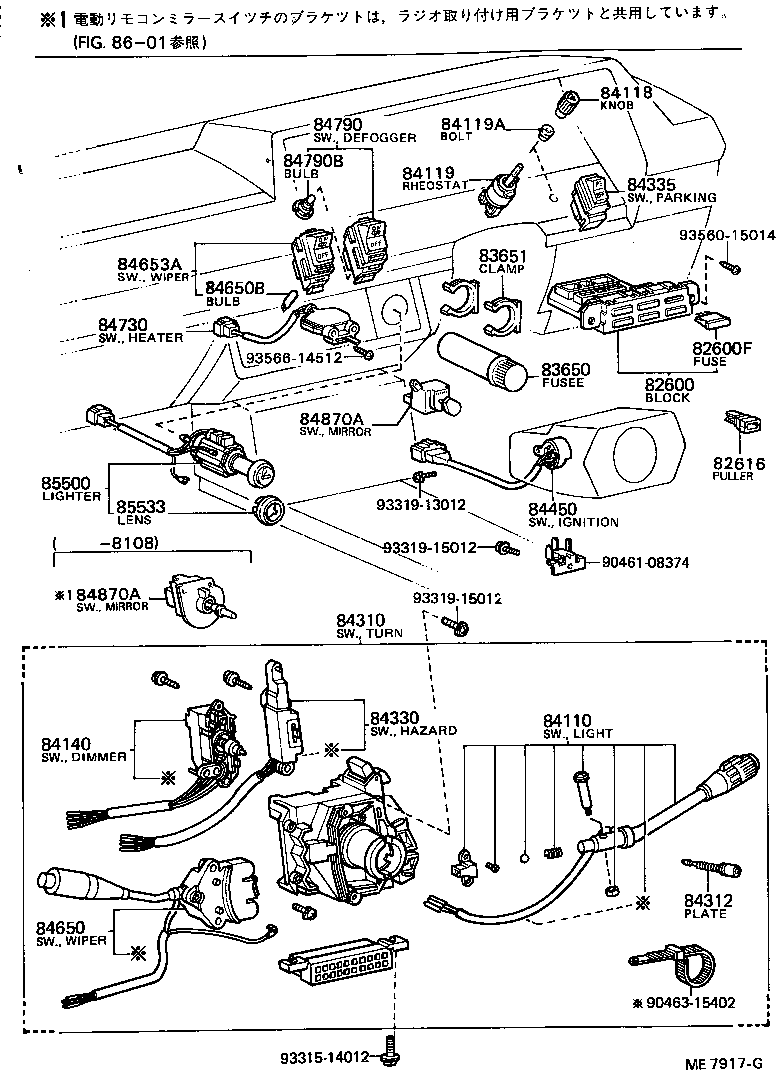

ILLUST NO. 2 OF 5(7903-8304)CP,HT,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-12110 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
AE70,KE7#,TE7# 5A,5A |
3 | ||
| 90982-09001 |
AE70,KE7#,TE7# 5A,5A |
2 | ||
| 90982-09002 |
AE70,CE7#,KE7#,TE7# 10A,10A |
9 | ||
| 90982-09003 |
AE70,CE7#,KE7#,TE7# 15A,15A |
6 | ||
| 90982-09004 |
AE70,CE7#,KE7#,TE7# 20A,黄,20A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25002 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19145 |
AE70,KE7#,TE7# TOKAIRIKA |
1 | ||
| 84112-19146 |
AE70,KE7#,TE7# TOKAIRIKA |
1 | ||
| 84112-19156 |
AE70,KE7#,TE7# MATSUSHITA |
1 | ||
| 84112-19155 |
AE70,KE7#,TE7# MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19035 |
AE70,KE7#,TE7# TOKAIRIKA |
1 | ||
| 84140-12021 |
AE70,KE7#,TE7# MATSUSHITA |
1 | ||
| 84140-12020 |
AE70,KE7#,TE7# MATSUSHITA |
1 | ||
| 84140-19036 |
AE70,KE7#,TE7# TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12291 |
AE70,KE70,TE70,71..GL,GT,LVN,SE,SL,SR W/*IW |
1 | ||
| 84310-12292 |
AE70,KE70,TE70,71..GL,GT,LVN,SE,SL,SR W/*IW |
1 | ||
| 84310-12301 |
AE70..DX;KE7#,TE73 |
1 | ||
| 84310-12290 |
AE70,KE70,TE70,71..GL,GT,LVN,SE,SL,SR W/*IW |
1 | ||
| 84310-12300 |
AE70..DX;KE7#,TE73 |
1 | ||
| 84310-12302 |
AE70..DX;KE7#,TE73 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12030 |
AE70,CE7#,KE7#,TE7# MATSUSHITA |
1 | ||
| 84312-12020 |
AE70,CE7#,KE7#,TE7# TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12060 |
AE70,KE7#,TE7# MATSUSHITA |
1 | ||
| 84332-19035 |
AE70,KE7#,TE7# TOKAIRIKA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-12100 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12060 |
AE70,KE7#,TE7# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12180 |
AE70,KE70,TE70,71..GL,GT,LVN,SE,SL,SR W/*IW,MATSUSHITA |
1 | ||
| 84652-19175 |
AE70..DX;KE7#,TE73 TOKAIRIKA |
1 | ||
| 84652-12181 |
AE70,KE70,TE70,71..GL,GT,LVN,SE,SL,SR W/*IW,MATSUSHITA |
1 | ||
| 84652-19185 |
AE70,KE70,TE70,71..GL,GT,LVN,SE,SL,SR W/*IW,TOKAIRIKA |
1 | ||
| 84652-19186 |
AE70,KE70,TE70,71..GL,GT,LVN,SE,SL,SR W/*IW,TOKAIRIKA |
1 | ||
| 84652-19176 |
AE70..DX;KE7#,TE73 TOKAIRIKA |
1 | ||
| 84650B - BULB, WINDSHIELD WIPER SWITCH | ||||
| 90981-11018 |
AE70,KE70,TE70,71..CP,LB 12V 1.4W |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-12040 |
AE70,KE70,TE70,71..CP,LB |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12061 |
AE70,KE7#,TE7# |
1 | ||
| 84732-12060 |
AE70,KE7#,TE7# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12070 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11014 |
AE70,KE70,TE70..CP,HT,LB 14V 1.4W,12V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12101 |
AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-12020 |
AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL) STANLEY |
1 | ||
| 85533-12010 |
AE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL) TOKAIRIKA |
1 | ||
| Common parts | ||||
| 90461-08374 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93560-15014 | ||||
| 93566-14512 | ||||

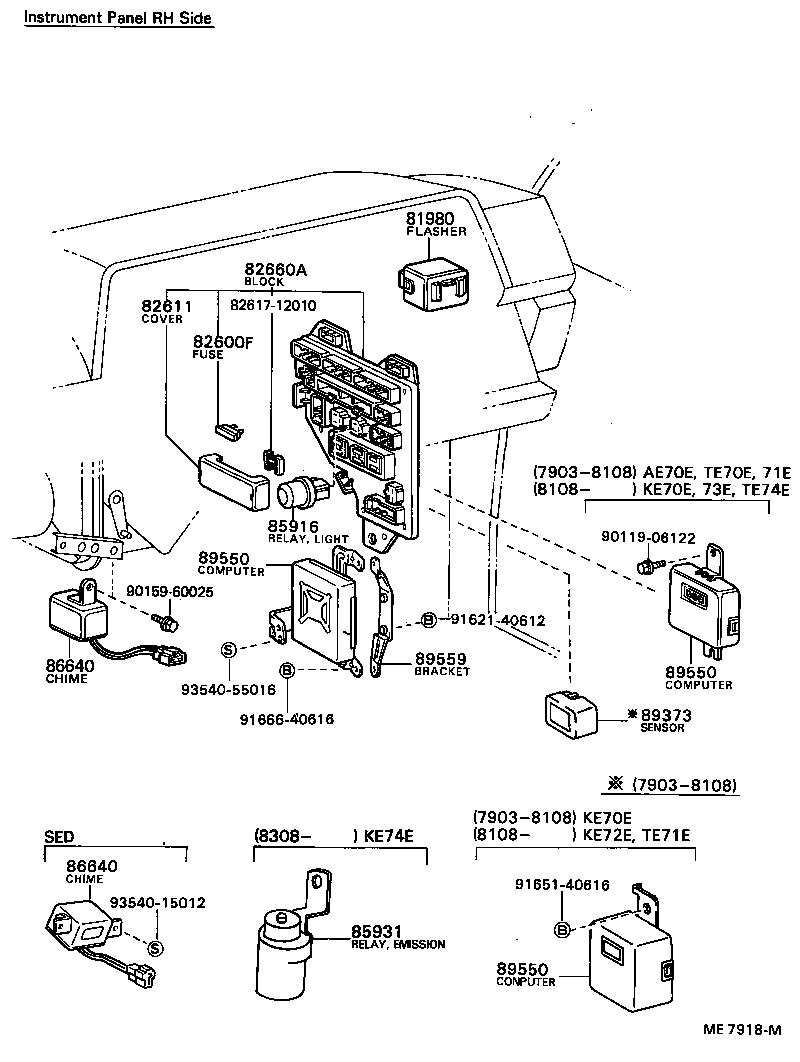

ILLUST NO. 3 OF 5(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
AE70,KE7#,TE7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
AE70,KE7#,TE7# 5A,5A |
3 | ||
| 90982-09001 |
AE70,KE7#,TE7# 5A,5A |
2 | ||
| 90982-09002 |
AE70,CE7#,KE7#,TE7# 10A,10A |
9 | ||
| 90982-09003 |
AE70,CE7#,KE7#,TE7# 15A,15A |
6 | ||
| 90982-09004 |
AE70,CE7#,KE7#,TE7# 20A,黄,20A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12080 |
AE70,KE70,TE71 RH,COWL SIDE |
1 | ||
| 82611-12081 |
AE70,KE7#,TE7# RH,COWL SIDE |
1 | ||
| 82661-12010 |
AE70,KE7#,TE7# ENGINE ROOM |
1 | ||
| 82661-12011 |
AE70,KE7#,TE7# ENGINE ROOM |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-12041 |
AE70,KE7#,TE7# |
1 | ||
| 82660-12040 |
AE70,KE70,TE71 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
AE70,KE7#,TE7# |
2 | ||
| 86640 - CHIME ASSY | ||||
| 86640-12040 |
AE70,KE7#,TE7# |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-12040 |
AE70,KE7#,TE7# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12390 |
KE70 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12390 |
KE70 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12390 |
KE70 |
1 | ||
| Common parts | ||||
| 82617-12010 | ||||
| 90119-06122 | ||||
| 90159-60025 | ||||
| 91621-40612 | ||||
| 91651-40616 | ||||
| 91666-40616 | ||||
| 93540-15012 | ||||
| 93540-55016 | ||||

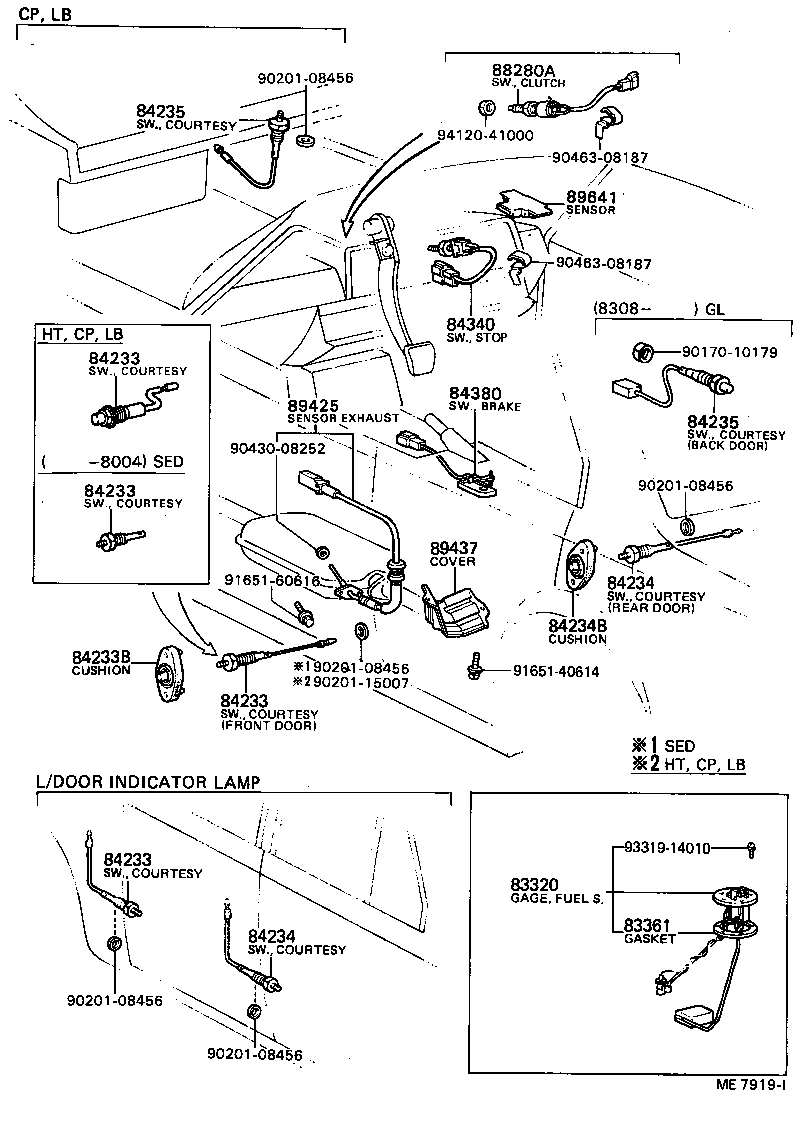

ILLUST NO. 5 OF 5(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19395 |
AE70,KE70,TE71..GL,GT,LVN,SE,SL,SR |
1 | ||
| 83320-19396 |
AE70,KE70,TE70,71..GL,GT,LVN,SE,SL,SR |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
AE70,KE7#,TE7# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12030 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,LVS,SE,SL,SR,SX) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12030 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,LVS,SE,SL,SR,SX) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12030 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,LVS,SE,SL,SR,SX) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12030 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,LVS,SE,SL,SR,SX) |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-95500 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) |
2 | ||
| 84234-20020 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
AE70,KE7#,TE7# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84550-12020 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19135 |
KE70 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-12030 |
KE70 |
1 | ||
| Common parts | ||||
| 90170-10179 | ||||
| 90201-08456 | ||||
| 90201-15007 | ||||
| 90430-08252 | ||||
| 90463-08187 | ||||
| 91651-40614 | ||||
| 91651-60616 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||

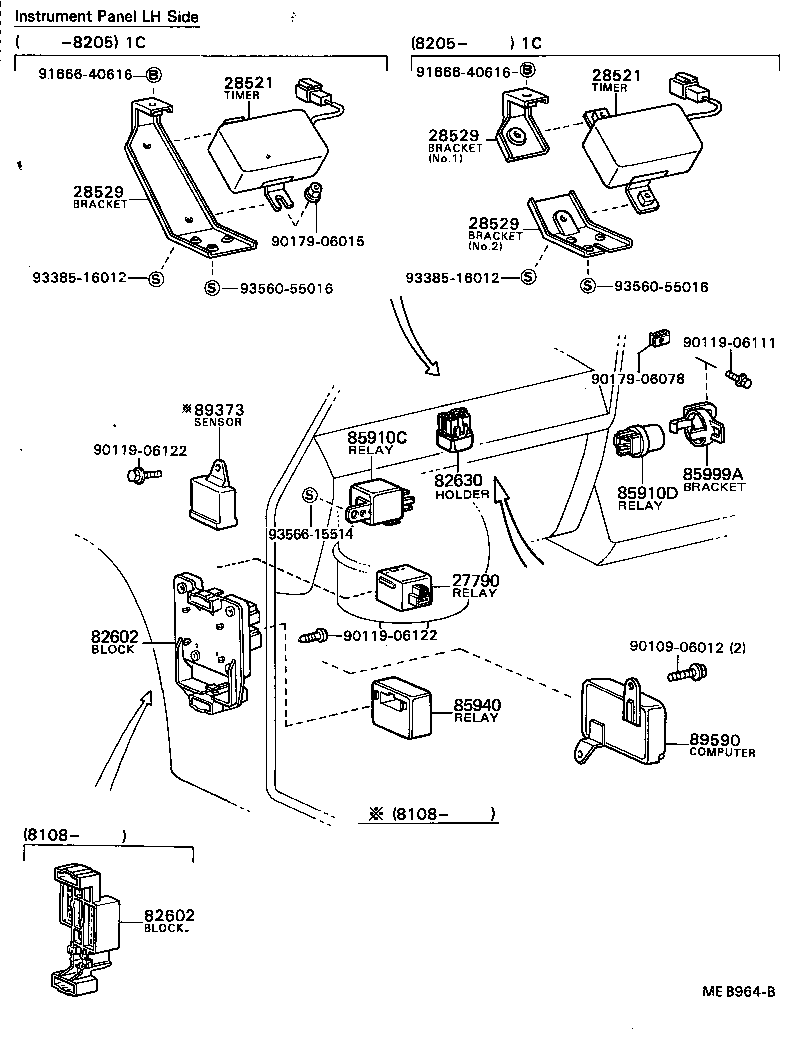

ILLUST NO. 4 OF 5(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-12050 |
KE70..GL,SL;AE70,KE71,TE7# LH,COWL SIDE |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-12050 |
KE70..GL,SL;AE70,KE71,TE7# LH,COWL SIDE |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-12010 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12020 |
AE70,KE70,TE70..GL,SL |
1 | ||
| Common parts | ||||
| 90109-06012 | ||||
| 90119-06111 | ||||
| 90119-06122 | ||||
| 90179-06015 | ||||
| 90179-06078 | ||||
| 91666-40616 | ||||
| 93385-16012 | ||||
| 93560-55016 | ||||
| 93566-15514 | ||||
