KE70-ECMSS (1979)
Toyota Corolla

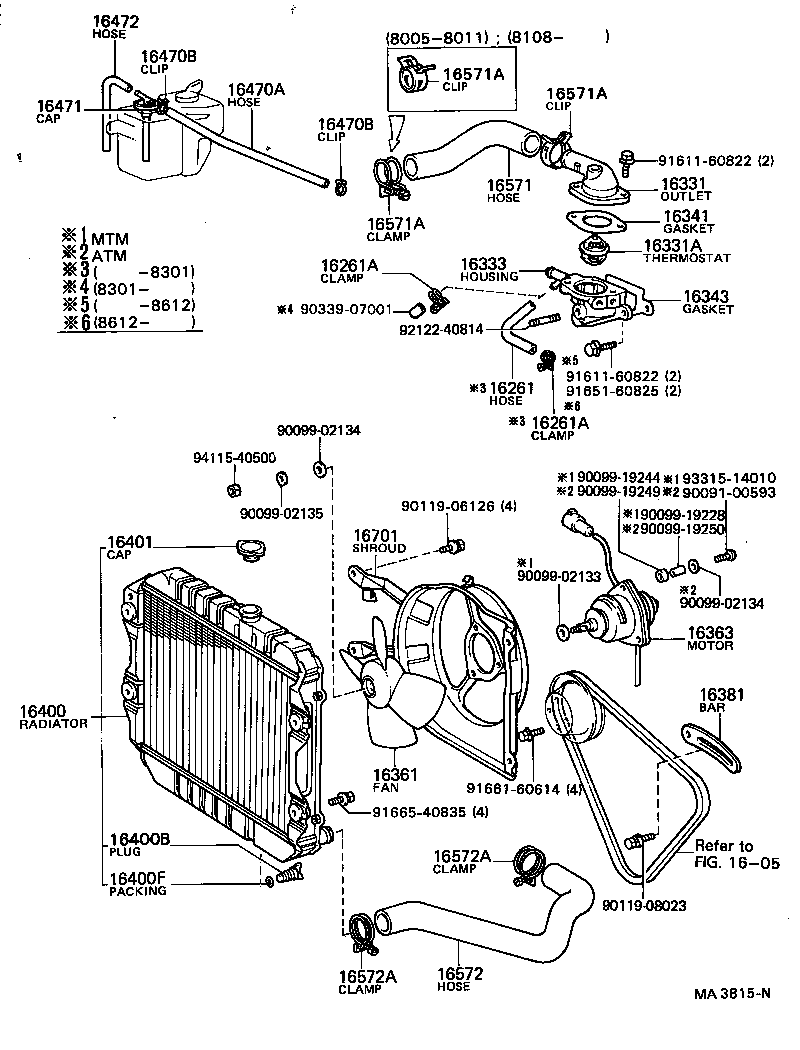

ILLUST NO. 1 OF 2(7903-8108)4KU ; (8108- )4KU..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-13010 |
4K#..KE7# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-15001 |
4K#..KE7# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-15001 |
4K#..KE7# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-13010 |
4KU..KE70 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03037 |
4K#..KE7# *WAX 82-95,KUZEH |
1 | ||
| 90916-03034 |
4KU..KE70 *WAX 82-95,*(F) |
1 | ||
| 90916-03036 |
4KU..KE70 COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03037 |
4KU..KE70 *WAX 82-95,KUZEH |
1 | ||
| 90916-03034 |
4K#..KE7# *WAX 82-95,*(F) |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-13012 |
4KU..KE70 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-13011 |
4K#,5KJ..KE7# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
4K#..KE7# |
1 | ||
| 16361 - FAN | ||||
| 16361-15010 |
4KU..KE70..MTM 4 BLADES,OD=250 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-24060 |
4KU..KE70..MTM 80W |
1 | ||
| 16363-24090 |
4KU..KE70..MTM 45W |
1 | ||
| 16363-24061 |
4KU..KE70..MTM 80W |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-24011 |
4K#,5KJ..KE7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-13080 |
4KU..KE70..MTM |
1 | ||
| 16400-13081 |
4KU..KE70..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
4K#,5KJ..KE7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
4K#..KE7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
4K#,5KJ..KE7# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
4K#..KE7# 長さ=420 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K#,5KJ..KE7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4K#,5KJ..KE7# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-12010 |
4K#,5KJ..KE7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16010 |
4K#,5KJ..KE7# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-13020 |
4KU..KE70 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# |
2 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# |
2 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# |
2 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
4K#..KE7# WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
4K#..KE7# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-13040 |
4KU..KE70 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4K#,5KJ..KE7# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
4K#,5KJ..KE7# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-13050 |
4KU..KE70..MTM |
1 | ||
| 16711-13130 |
4KU..KE70..MTM |
1 | ||
| Common parts | ||||
| 90091-00593 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-19228 | ||||
| 90099-19244 | ||||
| 90099-19249 | ||||
| 90099-19250 | ||||
| 90119-06126 | ||||
| 90119-08023 | ||||
| 90339-07001 | ||||
| 91611-60822 | ||||
| 91651-60825 | ||||
| 91661-60614 | ||||
| 91665-40835 | ||||
| 92122-40814 | ||||
| 93315-14010 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 1605 | ||||
