EE98V-AXKNS (1987)
Toyota Corolla
(8708- )CE96,97,EE96,97,98..DX,GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85341R - NOZZLE ASSY, WASHER | ||||
| 85341-13030 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) |
1 | ||
| 85341-13030 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
5 | ||
| 85349-89122 |
EE98..3FC..DX;CE96,97,EE97..DX,L;EE96,98..4F..(DX,GL) |
5 | ||
| 85349-89122 |
EE98..4F;EE96..3FC..DX;CE96,EE96..DX..02S;CE97,EE96,97..GL,L |
5 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
5 | ||
| 85349-89122 |
EE98..3FC..DX;CE96,97,EE97..DX,L;EE96,98..4F..(DX,GL) |
5 | ||
| 85349-89122 |
EE98..4F;EE96..3FC..DX;CE96,EE96..DX..02S;CE97,EE96,97..GL,L |
5 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
5 | ||
| 85349-89122 |
EE98..3FC..DX;CE96,97,EE97..DX,L;EE96,98..4F..(DX,GL) |
5 | ||
| 85349-89122 |
EE98..4F;EE96..3FC..DX;CE96,EE96..DX..02S;CE97,EE96,97..GL,L |
5 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
5 | ||
| 85349-89122 |
EE98..3FC..DX;CE96,97,EE97..DX,L;EE96,98..4F..(DX,GL) |
5 | ||
| 85349-89122 |
EE98..4F;EE96..3FC..DX;CE96,EE96..DX..02S;CE97,EE96,97..GL,L |
5 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
5 | ||
| 85349-89122 |
EE98..3FC..DX;CE96,97,EE97..DX,L;EE96,98..4F..(DX,GL) |
5 | ||
| 85349-89122 |
EE98..4F;EE96..3FC..DX;CE96,EE96..DX..02S;CE97,EE96,97..GL,L |
5 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
1 | ||
| 85355-20200 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85355-20080 |
EE98..4F;EE98..3FC..DX;AE91,92,CE96,97,EE90,96,97..(3D,5D,V,WG)..(DX,FXD,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL) |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33570 |
EE98..3FC..DX;CE96,97,EE97..DX,L;EE96,98..4F..(DX,GL) 長さ=3705 |
1 | ||
| 90099-33570 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL 長さ=3705 |
1 | ||
| 90099-33570 |
EE98..4F;EE96..3FC..DX;CE96,EE96..DX..02S;CE97,EE96,97..GL,L 長さ=3705 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) L=1450 |
1 | ||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) |
1 | ||
| 90099-33080 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL L=1450 |
2 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) |
1 | ||
| 90099-33080 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) L=1450 |
1 | ||
| 90099-33080 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L L=1450 |
2 | ||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
1 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) L=1450 |
1 | ||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) |
1 | ||
| 90099-33080 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL L=1450 |
2 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) |
1 | ||
| 90099-33080 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) L=1450 |
1 | ||
| 90099-33080 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L L=1450 |
2 | ||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
1 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) L=1450 |
1 | ||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) |
1 | ||
| 90099-33080 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL L=1450 |
2 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) |
1 | ||
| 90099-33080 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) L=1450 |
1 | ||
| 90099-33080 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L L=1450 |
2 | ||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
1 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) L=1450 |
1 | ||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) |
1 | ||
| 90099-33080 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL L=1450 |
2 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) |
1 | ||
| 90099-33080 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) L=1450 |
1 | ||
| 90099-33080 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L L=1450 |
2 | ||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
1 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) L=1450 |
1 | ||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) |
1 | ||
| 90099-33080 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL L=1450 |
2 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) |
1 | ||
| 90099-33080 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) L=1450 |
1 | ||
| 90099-33080 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L L=1450 |
2 | ||
| 90446-07001 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
1 | ||
| 90446-07001 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-13010 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
1 | ||
| 85372-13010 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL) L=1450 |
1 | ||
| 90099-33080 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;AE91,CE96,97,EE97..(V,WG)..(DX,G,L,LT) L=1450 |
1 | ||
| 85382 - COVER, REAR WASHER HOSE | ||||
| 85382-13010 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L |
2 | ||
| 85382-13010 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
2 | ||
| 85382 - COVER, REAR WASHER HOSE | ||||
| 85382-13010 |
EE98..4F;EE96..DX,GL;EE98..3FC..DX;CE96,97,EE97..DX,L |
2 | ||
| 85382-13010 |
EE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL |
2 | ||
| Common parts | ||||
| 90463-04033 | ||||

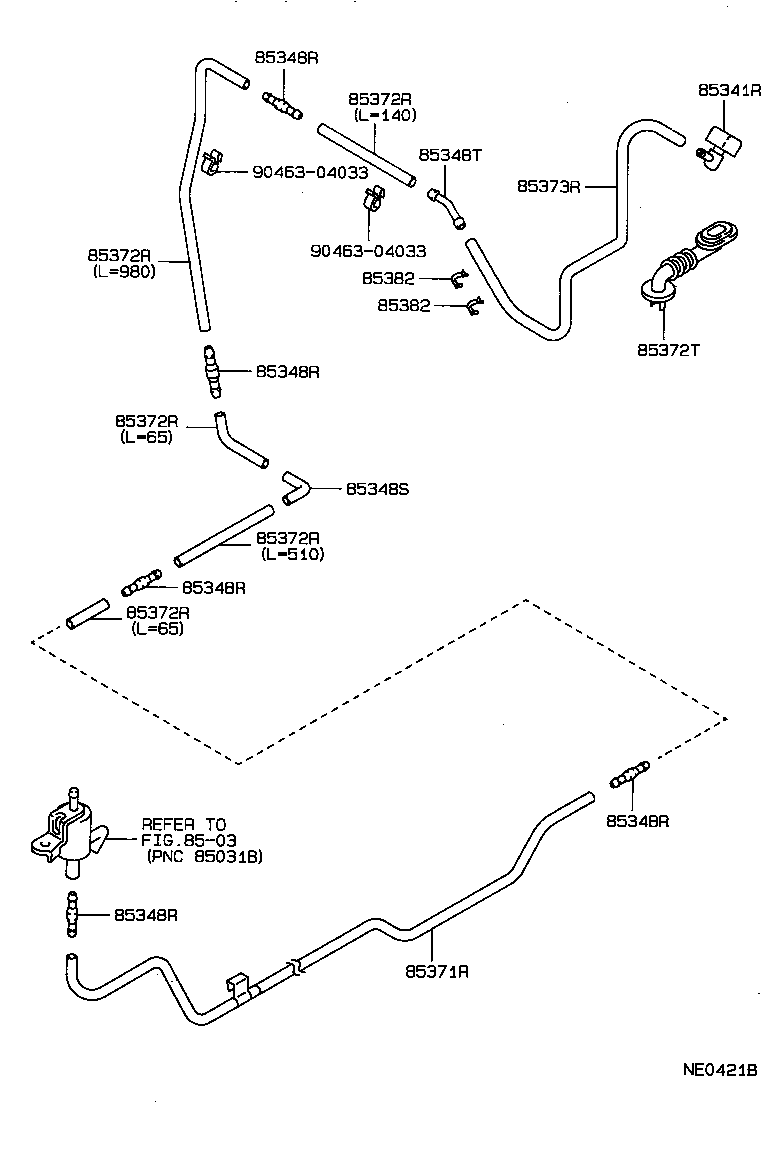

| Linked diagrams | ||||
| 8503 | ||||
