EE98V-AXKNS (1987)

Toyota Corolla

Production Aug 1987 - Sep 1991
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )V,WG

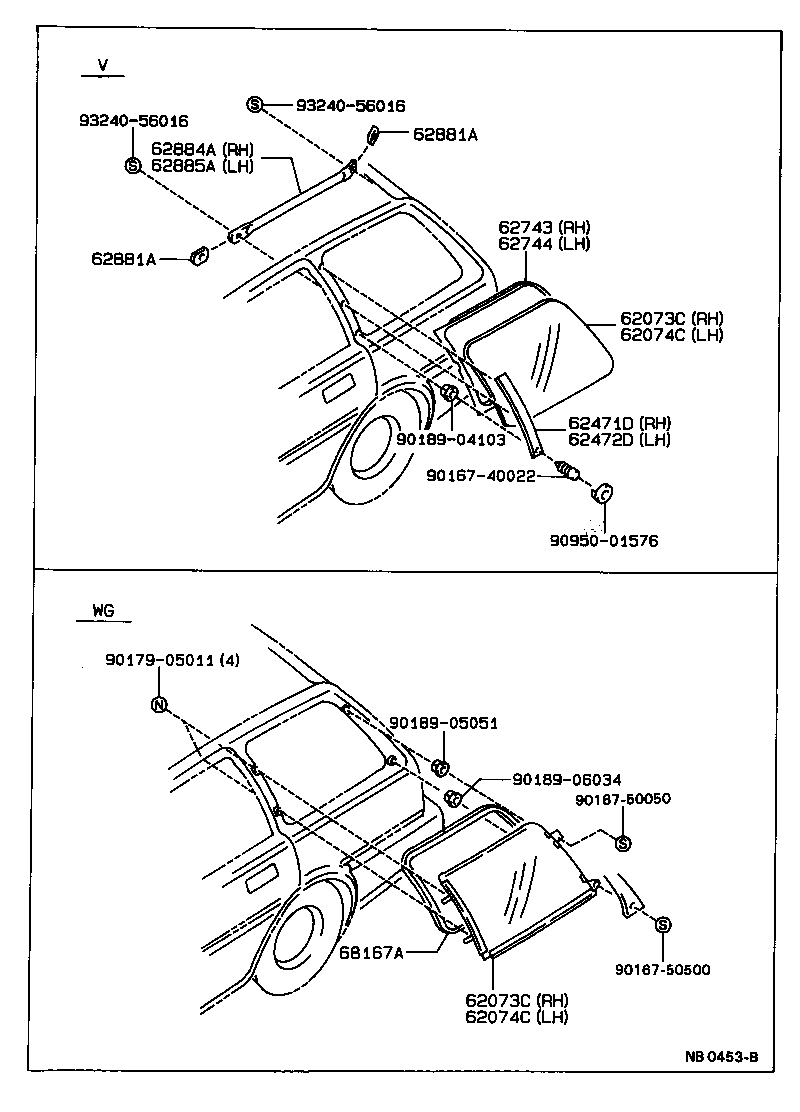

Click highlighted areas on diagram

diagram 62073C 62073C 62074C 62074C 62471D 62472D 62743 62744 62881A 62881A 62884A 62885A 68167A 9016740022 9016750050 9016750500 9017905011 9018904103 9018905051 9018906034 9095001576 9324056016 9324056016
Part # Description Qty Price
62073C - GLASS SUB-ASSY, QUARTER, REAR RH
68133-13030

CE96,97,EE96,97,98..CTD,DX,L,STD

*TEM,厚さ=3.5

 1
68133-13040

CE96,97,EE96,97,98..GL

*TT,厚さ=3.5

 1
62073C - GLASS SUB-ASSY, QUARTER, REAR RH
68133-13030

CE96,97,EE96,97,98..CTD,DX,L,STD

*TEM,厚さ=3.5

 1
68133-13040

CE96,97,EE96,97,98..GL

*TT,厚さ=3.5

 1
62074C - GLASS SUB-ASSY, QUARTER, REAR LH
68134-13030

CE96,97,EE96,97,98..CTD,DX,L,STD

*TEM,厚さ=3.5

 1
68134-13040

CE96,97,EE96,97,98..GL

*TT,厚さ=3.5

 1
62074C - GLASS SUB-ASSY, QUARTER, REAR LH
68134-13030

CE96,97,EE96,97,98..CTD,DX,L,STD

*TEM,厚さ=3.5

 1
68134-13040

CE96,97,EE96,97,98..GL

*TT,厚さ=3.5

 1
62471D - GARNISH, REAR PILLAR, UPPER RH
62471-13020

CE96,97,EE96,97,98

 1
62472D - GARNISH, REAR PILLAR, UPPER LH
62472-13020

CE96,97,EE96,97,98

 1
62743 - WEATHERSTRIP, QUARTER WINDOW, REAR RH
62743-13060

CE96,97,EE96,97,98

 1
62744 - WEATHERSTRIP, QUARTER WINDOW, REAR LH
62744-13060

CE96,97,EE96,97,98

 1
62881A - BRACKET, QUARTER WINDOW GUARD
62881-13040

CE96,EE96,98

 4
62881A - BRACKET, QUARTER WINDOW GUARD
62881-13040

CE96,EE96,98

 4
62884A - GUARD, QUARTER WINDOW, RH
62884-13080

CE96,EE96,98

 1
62885A - GUARD, QUARTER WINDOW, LH
62885-13020

CE96,EE96,98

 1
Common parts
90167-40022
90167-50050
90167-50500
90179-05011
90189-04103
90189-05051
90189-06034
90950-01576
93240-56016
