EE98V-AXKDS (1987)

Toyota Corolla

Production Aug 1987 - Sep 1991
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2E,3E..EE96,97,98..MTM

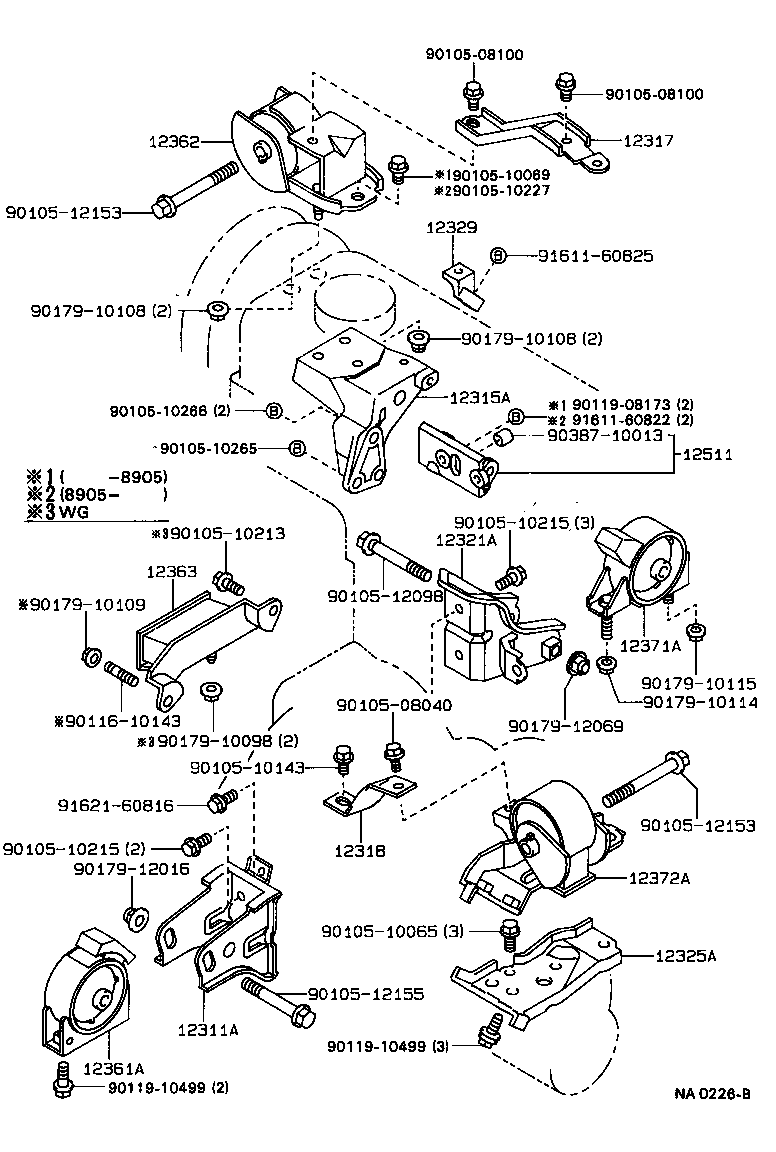

Click highlighted areas on diagram

diagram 12311A 12315A 12317 12318 12321A 12325A 12329 12361A 12362 12363 12371A 12372A 12511 9010508040 9010508100 9010508100 9010510065 9010510069 9010510143 9010510213 9010510215 9010510215 9010510227 9010510265 9010510266 9010512098 9010512153 9010512153 9010512155 9011610143 9011908173 9011910499 9011910499 9017910098 9017910108 9017910108 9017910109 9017910114 9017910115 9017912016 9017912069 9038710013 9161160822 9161160825 9162160816
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-11060

2E,3E..EE9#..MTM

 1
12311-11060

2E,3E..EE9#..MTM

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-11020

2E,3E..EE96,97,98..CTD,DX,GL,STD

 1
12315-11020

2E,3E..EE9#

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-11021

3E..EE98

 1
12317-11020

3E..EE98

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-16010

2E,3E..EE90,96,98..MTM

 1
12318-16010

2E,3E..EE9#..MTM

 1
12318-16010

2E,3E..EE90,96,98..MTM

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-11070

2E,3E..EE96,98..MTM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16060

2E..EE97..L;2E,3E..EE90,96,98..MTM

 1
12329 - SUPPORT, ENGINE MOUNTING STAY
12329-11010

2E,3E..EE9#

 1
12329-11020

3E..EE98

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-16040

2E,3E..EE9#..MTM

 1
12361-16040

2E,3E..EE9#..MTM

 1
12361-16040

2E,3E..EE9#..MTM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-11070

2E,3E..EE9#

 1
12362-11070

2E,3E..EE96,97,98..CTD,DX,GL,STD

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-11180

2E,3E..EE96,98..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15110

2E,3E..EE9#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-11010

2E,3E..EE9#

 1
12511-11020

2E,3E..EE9#

 1
12511-11020

2E,3E..EE9#

 1
12511-11010

2E,3E..EE9#

 1
12511-11010

2E,3E..EE9#

 1
Common parts
90105-08040
90105-08100
90105-10065
90105-10069
90105-10143
90105-10213
90105-10215
90105-10227
90105-10265
90105-10266
90105-12098
90105-12153
90105-12155
90116-10143
90119-08173
90119-10499
90179-10098
90179-10108
90179-10109
90179-10114
90179-10115
90179-12016
90179-12069
90387-10013
91611-60822
91611-60825
91621-60816
