EE98V-AXHNS (1987)
Toyota Corolla
Production
Aug 1987
-
Sep 1991
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )CE96,EE96,98

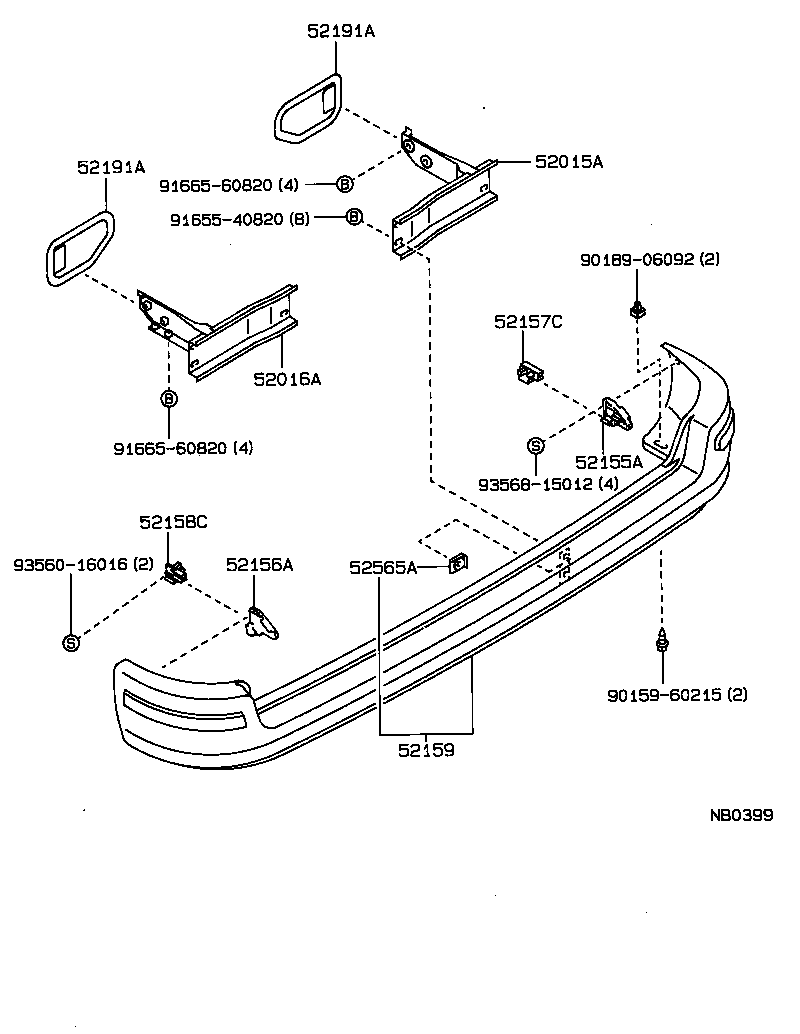

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-13070 |
CE96,97,EE96,97,98 |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-13060 |
CE96,97,EE96,97,98 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-13030 |
AE91,CE96,97,EE96,97,98..V,WG |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-13030 |
AE91,CE96,97,EE96,97,98..V,WG |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-13020 |
AE91,CE96,97,EE96,97,98..V,WG |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-13020 |
AE91,CE96,97,EE96,97,98..V,WG |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-13020 |
AE91,CE96,97,EE96,97,98..V,WG |
1 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-13090 |
CE96,97,EE96,97,98 右側 |
1 | ||
| 52192-13080 |
CE96,97,EE96,97,98 左側 |
1 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-13090 |
CE96,97,EE96,97,98 右側 |
1 | ||
| 52192-13080 |
CE96,97,EE96,97,98 左側 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12040 |
AE91,92,CE96,97,EE9#..3D,5D,V,WG |
8 | ||
| 52565-12040 |
AE91,CE96,97,EE96,97,98..V,WG |
8 | ||
| Common parts | ||||
| 90159-60215 | ||||
| 90189-06092 | ||||
| 91655-40820 | ||||
| 91665-60820 | ||||
| 93560-16016 | ||||
| 93568-15012 | ||||
