EE98V-AXHDS (1987)
Toyota Corolla

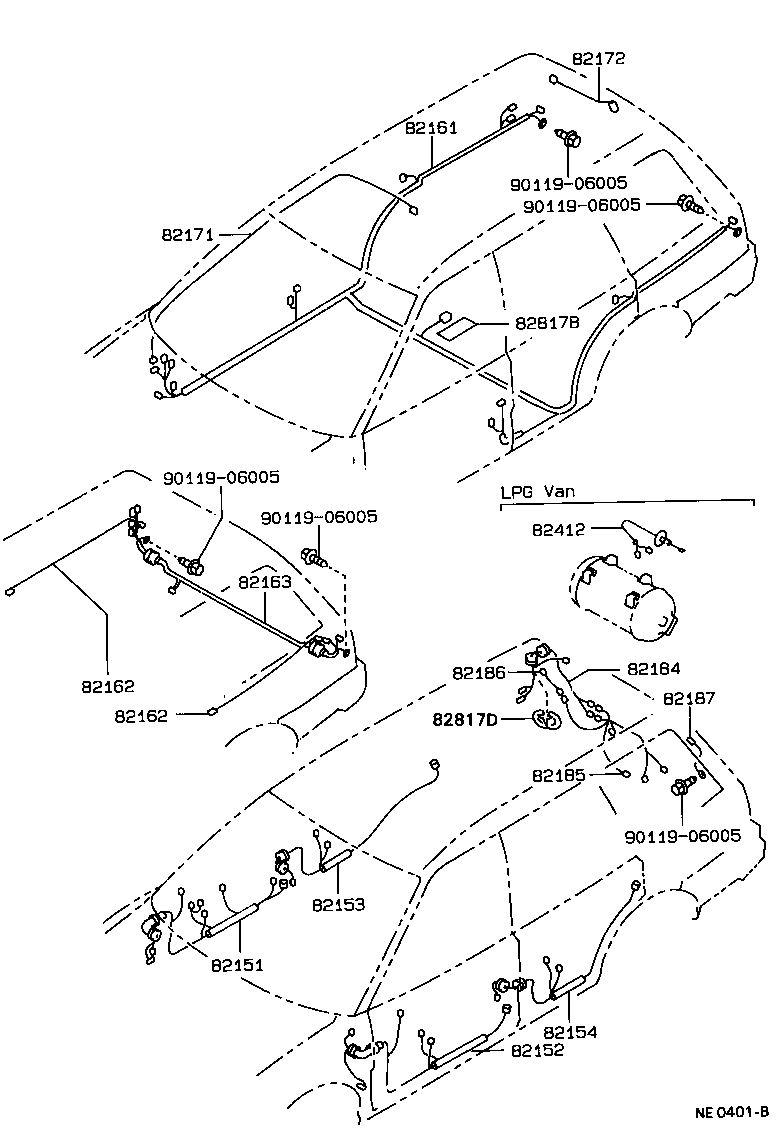

ILLUST NO. 2 OF 5(8708- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-13030 |
EE96..GL;CE97,EE97,98;CE96..(DX,GL)..05S ｱﾘ(*RW) |
1 | ||
| 82161-13030 |
EE98..3FC,5F;CE96..5F..DX..05S ｱﾘ(*RW) |
1 | ||
| 82161-13020 |
EE96..GL;CE96..05S;CE97,EE97,98 |
1 | ||
| 82161-13030 |
CE96,EE98..(3FC,5F)..DX..05S ｱﾘ(*RW) |
1 | ||
| 82161-13320 |
CE96,EE96,98..(CTD,DX)..05S |
1 | ||
| 82161-13340 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S ｱﾘ(*RW) |
1 | ||
| 82161-13430 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S ｱﾘ(*BDEL) |
1 | ||
| 82161-13440 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S ｱﾘ(*BDEL & *RW) |
1 | ||
| 82161-13330 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S LPG ﾊﾞﾝ & ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾃﾞﾌｵｶﾞ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-13020 |
CE97,EE97,98;CE96,EE96..05S 左側 |
1 | ||
| 82162-13010 |
CE97,EE97,98;CE96,EE96..05S 右側 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-13020 |
CE97,EE97,98;CE96,EE96..05S 左側 |
1 | ||
| 82162-13010 |
CE97,EE97,98;CE96,EE96..05S 右側 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-13030 |
EE96..GL;EE96..DX..02S;CE96,97,EE97,98..DX,GL ｱﾘ(*PW) |
1 | ||
| 82163-13020 |
EE96..GL;EE96..02S;CE96,97,EE97,98 |
1 | ||
| 82163-13030 |
EE98..3FC,5F;CE96..DX..05S ｱﾘ(*RW) |
1 | ||
| 82163-13030 |
CE96,EE98..(3FC,4FC,5F)..DX..05S ｱﾘ(*RW) |
1 | ||
| 82163-13020 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S ﾊｲﾙ-ﾌ & ｱﾘ(*RWD) |
1 | ||
| 82163-13080 |
EE98..3FC..DX;CE96,EE96..MTM..DX..05S ｱﾘ(*BDEL) |
1 | ||
| 82163-13090 |
EE98..3FC..DX;CE96,EE96..MTM..DX..05S ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ & ﾊﾞﾂｸ ﾄﾞｱ ｵ-ﾌﾟﾅ) |
1 | ||
| 82163-13030 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S ｱﾘ(*RW) |
1 | ||
| 82163-13100 |
CE96,EE96,98..CTD,DX,STD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-13010 |
AE91,CE96,97,EE96,97,98..V,WG |
1 | ||
| 82171-13010 |
CE96,97,EE96,97,98 |
1 | ||
| 82171-13011 |
AE91,CE96,97,EE96,97,98..V,WG |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-13010 |
AE91,CE96,97,EE96,97,98..(V,WG)..(DX,G,GL,L,LT) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-13030 |
EE96..GL;EE96..DX..02S;CE96,97,EE97,98..DX,GL ｱﾘ(*RW) |
1 | ||
| 82184-13020 |
EE96..GL;EE96..02S;CE96,97,EE97,98 |
1 | ||
| 82184-13030 |
CE96,97,EE96,97,98..DX,GL,L ｱﾘ(*RW) |
1 | ||
| 82184-13080 |
CE96,97,EE96,97,98..DX,GL,L ｱﾘ(*BDEL) |
1 | ||
| 82184-13020 |
CE96,97,EE96,97,98..DX,GL,L |
1 | ||
| 82184-13110 |
EE96..3FC..(DX,GL);CE96,97,EE97,98..DX,GL,L ｱﾘ(*BDEL & *RW) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-13020 |
EE96..GL;EE96..DX..02S;CE96,97,EE97,98..DX,GL ｱﾘ(*RW) |
1 | ||
| 82185-13010 |
EE96..GL;EE96..02S;CE96,97,EE97,98 |
1 | ||
| 82185-13010 |
EE96..3FC..CTD;EE96..DX,GL,STD;CE96,97,EE97,98 |
1 | ||
| 82185-13090 |
CE96,97,EE96,97,98..DX,GL,L ｱﾘ(*BDEL & *RW) |
1 | ||
| 82185-13080 |
CE96,97,EE96,97,98..DX,GL,L ｱﾘ(*BDEL) |
1 | ||
| 82185-13020 |
CE96,97,EE96,97,98..DX,GL,L ｱﾘ(*RW) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-13010 |
AE91,CE96,97,EE96,97,98..V,WG |
1 | ||
| 82186-13010 |
EE96..4F;EE96..3FC..GL;AE91,CE96,97,EE97,98..V,WG |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-13010 |
AE91,CE96,97,EE96,97,98..V,WG |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE9#,CE9#,EE9# |
1 | ||
| 82817-16100 |
AE91..SE..EFI;AE91,92,CE96,97,EE9#..3D,5D,V,WG |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-13040 |
CE96,97,EE96,97,98 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
