EE98V-AXHDS (1987)

Toyota Corolla

Production Aug 1987 - Sep 1991
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8905- )2E,3E..EE90,96,98..3FC

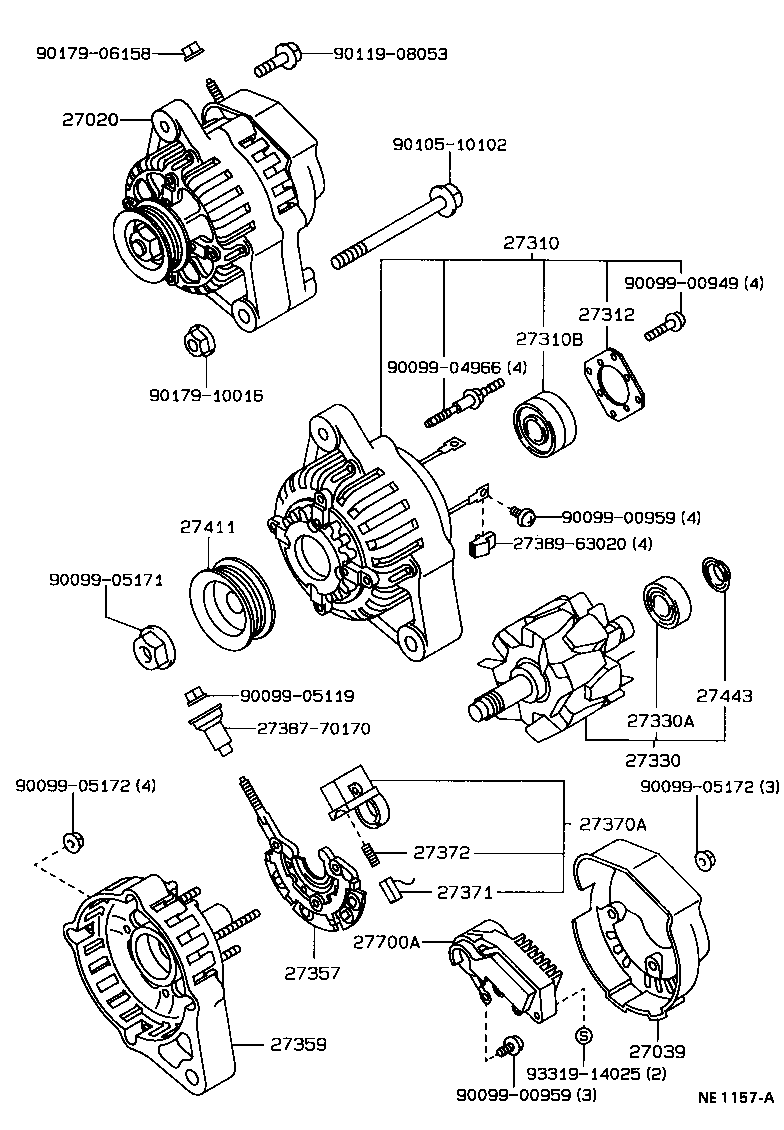

Click highlighted areas on diagram

12V 60A,70A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370A 27371 27372 2738770170 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9010510102 9011908053 9017906158 9017910016 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-10100

2E,3E..EE9#

12V 50A

 1
27060-11080

3E..EE98

12V 50A

 1
27060-11030

2E,3E..EE96,98..3FC

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72150

3E..EE98;2E..EE90,96,97..4F

 1
27039-72150

2E,3E..EE9#

 1
27039-72010

4A#,5AF#..AE9#..MTM;2E,3E..EE90,96,98..3FC

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-10090

2E,3E..EE9#

 1
27310-16102

3E..EE98..3FC;4AGE..AE92..5F

 1
27310-16102

2E,3E..EE96,98..3FC

 1
27310-10090

3E..EE98;2E..EE90,96,97..4F

12V 50A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10170

2E,3E..EE9#

 1
90099-10170

3E..EE98;2E..EE90,96,97..4F

 1
27312 - PLATE, RETAINER
27312-72120

2E,3E..EE9#

 1
27312-72120

3E..EE98;2E..EE90,96,97..4F

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72150

2E,3E..EE9#

 1
27330-72150

3E..EE98;2E..EE90,96,97..4F

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10154

3E..EE98;2E..EE90,96,97..4F

 1
90099-10154

2E,3E..EE9#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-72150

2E,3E..EE9#

 1
27357-72150

3E..EE98;2E..EE90,96,97..4F

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72150

2E,3E..EE9#

 1
27359-72150

3E..EE98;2E..EE90,96,97..4F

12V 50A

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011

4AGE,2E,3E..AE92,EE9#..3FC,4F,5F

 1
27370-16011

4AGE,2E,3E..AE92,EE9#

 1
27371 - BRUSH, ALTERNATOR
27371-63020

4AF,5AF,2E,3E..AE91,95,EE9#;4AGE,4AFE,5AFE,5AFHE..AE9#..MTM

 2
27371-63020

4A#,5AF#,2E,3E..AE9#,EE9#

 2
27371-63020

4AGE,2E,3E..AE92,EE9#..3FC,4F,5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

4A#,5AF#,2E,3E..AE9#,EE9#

 2
27372-63020

2E,3E..EE90,96,98;4A#,5AF#,2E..AE9#,EE97..MTM

 2
27372-72100

4AGE,5AFE..AE91,92..5F;4AF,5AF,2E,3E..AE91,95,EE9#

 2
27372-72100

5AF,2E,3E..AE91,EE96,97,98

 2
27411 - PULLEY, ALTERNATOR
27411-10051

3E..EE98;2E..EE90,96,97..4F

 1
27411-10051

2E,3E..EE9#

 1
27411-65010

2E,3E..EE90,96,98..3FC

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4AGE,4AF#,5AF#,2E,3E..AE9#,EE9#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-10050

2E,3E..EE9#

 1
27700-10050

3E..EE98

 1
27700-70030

4AFE,5AF#..AE91,95;2E,3E..EE90,98..3FC

 1
27700-10080

2E,3E..EE9#

 1
Common parts
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90105-10102
90119-08053
90179-06158
90179-10016
93319-14025
