EE97G-AWKNS (1987)
Toyota Corolla
(8705-8905)CE90 ; (8905-8908)CE96,97

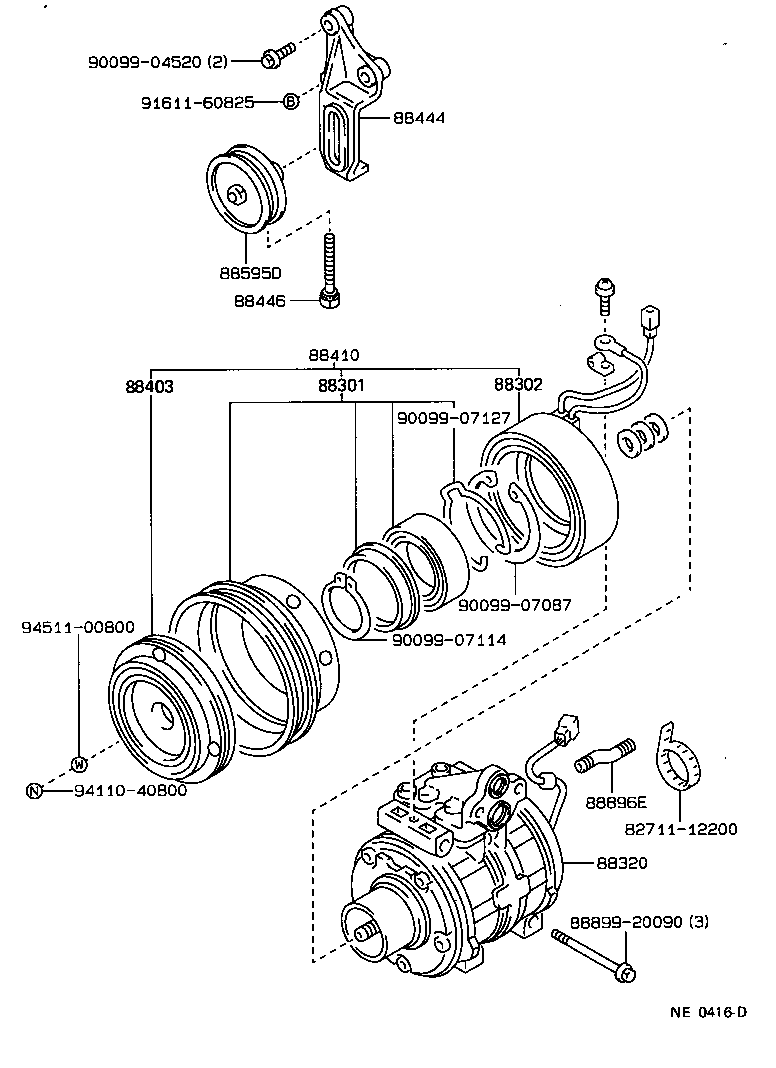

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-16050 |
EE96..3FC;EE90,97,98 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-16021 |
EE96..3FC;EE90,97,98 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-12570 |
EE97,98;EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88320-12530 |
EE97,98;EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88320-12580 |
EE9# |
1 | ||
| 88320-12600 |
EE9# |
1 | ||
| 88320-12620 |
EE9# |
1 | ||
| 88320-12630 |
EE97,98;EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88320-12680 |
EE9# |
1 | ||
| 88320-12670 |
EE97,98;EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88320-12630 |
EE96,97,98;EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88320-12670 |
EE96,97,98;EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88320-12360 |
CE96,97..DX,GL |
1 | ||
| 88320-12680 |
EE96,97,98 |
1 | ||
| 88320-12620 |
EE96,97,98 |
1 | ||
| 88320-12610 |
CE96,97..DX,GL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88320-12630 |
EE96,97,98 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
EE96..3FC;EE90,97,98 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-16050 |
EE90,97,98 |
1 | ||
| 88410-12160 |
CE96,97..DX,GL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 88410-12170 |
CE96,97..DX,GL |
1 | ||
| 88410-16050 |
EE97,98 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-12040 |
CE96,97 |
1 | ||
| 88444-10031 |
EE90,97;EE96..3FC |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
CE90..DX,TX;AE91,95,CE96,97,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 88446-12030 |
EE90;CE90..DX,TX;AE91,CE96,97,EE97,98..DX,GL,STD |
1 | ||
| 88446-12030 |
EE90;AE91,CE96,97,EE97,98..DX,GL,STD |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-12170 |
EE90;CE9#,EE97,98..DX,GL,STD |
1 | ||
| 88440-12170 |
CE96,97,EE90,97,98 |
1 | ||
| 88440-12170 |
EE90;CE9#,EE97,98..DX,GL,STD,TX |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88899-20090 | ||||
| 90099-04520 | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-07127 | ||||
| 91611-60825 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
