EE96V-AXKRS (1987)

Toyota Corolla

Production Aug 1987 - Aug 1989
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

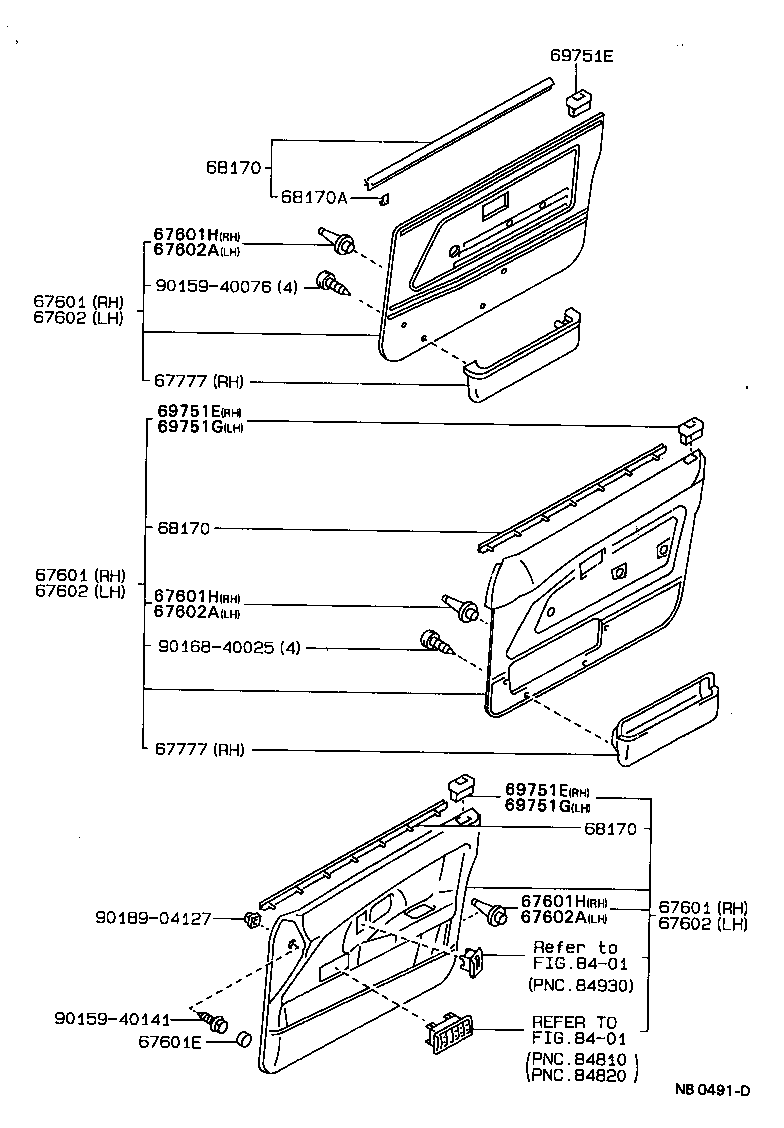

ILLUST NO. 2 OF 2(8708-8908)V,WG

Click highlighted areas on diagram

diagram 67601 67601 67601 67601E 67601H 67601H 67601H 67602 67602 67602 67602A 67602A 67602A 67777 67777 68170 68170 68170 68170A 69751E 69751E 69751E 69751G 69751G 8401 8401 9015940076 9015940141 9016840025 9018904127
Part # Description Qty Price
67601H - RETAINER, DOOR TRIM, RH
67771-12040

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

 14
67601H - RETAINER, DOOR TRIM, RH
67771-12040

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

 14
67601H - RETAINER, DOOR TRIM, RH
67771-12040

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

 14
67602A - RETAINER, DOOR TRIM, LH
67771-12040

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

 14
67602A - RETAINER, DOOR TRIM, LH
67771-12040

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

 14
67602A - RETAINER, DOOR TRIM, LH
67771-12040

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

 14
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-12270

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

右側

 1
68220-12190

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

左側

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-12270

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

右側

 1
68220-12190

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

左側

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-12270

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

右側

 1
68220-12190

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

左側

 1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-10030

CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD

 12
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2003103

CE97,EE97..DX;AE91,CE90,96,EE90,96,98..DX,GL,STD

GRAY,TRIM1#

 2
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2003103

CE97,EE97..DX;AE91,CE90,96,EE90,96,98..DX,GL,STD

GRAY,TRIM1#

 2
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2003103

CE97,EE97..DX;AE91,CE90,96,EE90,96,98..DX,GL,STD

GRAY,TRIM1#

 2
Common parts
90159-40076
90159-40141
90168-40025
90189-04127
Linked diagrams
8401
