EE96V-AXKNS (1987)

Toyota Corolla

Production Aug 1987 - Sep 1991
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CE97,EE97,98 ; (8708- )CE96,EE96..05S

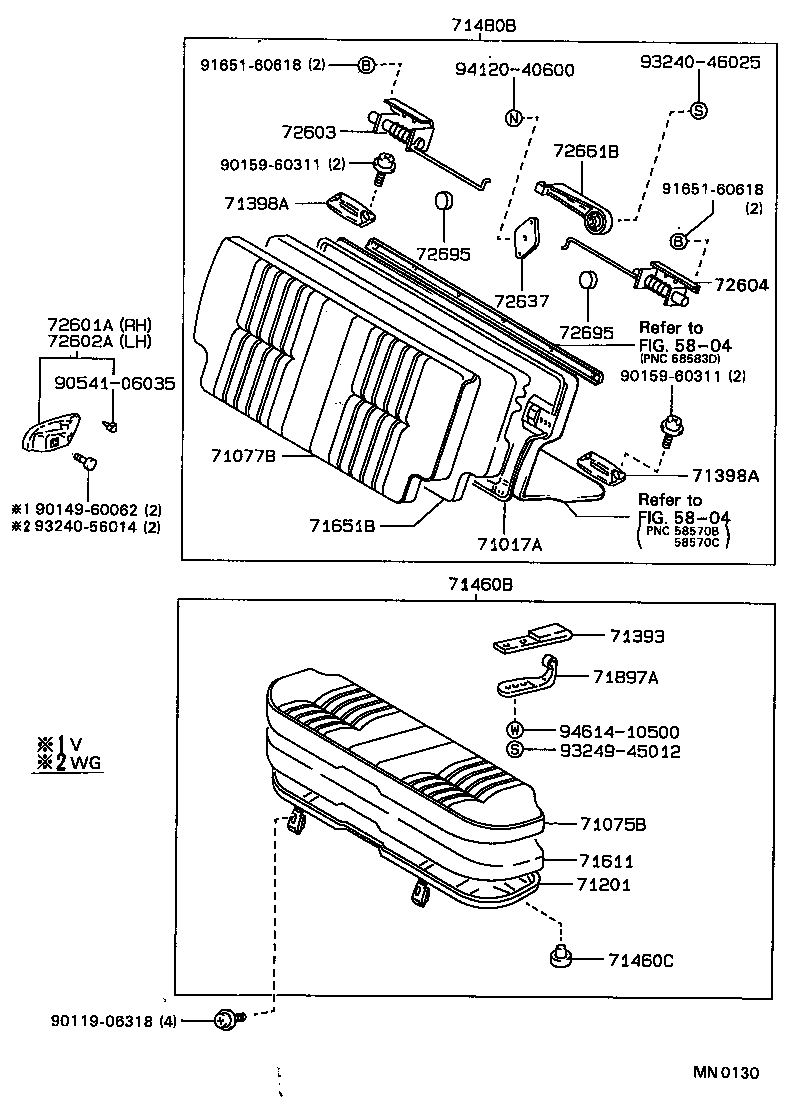

Click highlighted areas on diagram

diagram 5804 5804 71017A 71075B 71077B 71201 71393 71398A 71398A 71460B 71460C 71480B 71611 71651B 71897A 72601A 72602A 72603 72604 72637 72661B 72695 72695 9011906318 9014960062 9015960311 9015960311 9054106035 9165160618 9165160618 9324046025 9324056014 9324945012 9412040600 9461410500
Part # Description Qty Price
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-13080

CE96,EE96,98..(DX,GL)..05S

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1334003

CE96,97,EE96,97,98..GL

SHADOW GRAY,TRIM1#

 1
71075-1334005

CE96,97,EE96,97,98..GL

DARK BEIGE,TRIM4#

 1
71075-1334104

CE96,EE96,98..GL

DARK BLUE,TRIM8#

 1
71075-1334103

CE96,EE96,98..GL

SHADOW GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1334003

CE96,97,EE96,97,98..GL

SHADOW GRAY,TRIM1#

 1
71077-1334005

CE96,97,EE96,97,98..GL

DARK BEIGE,TRIM4#

 1
71077-1334103

CE96,EE96,98..GL

SHADOW GRAY,TRIM1#

 1
71077-1334104

CE96,EE96,98..GL

DARK BLUE,TRIM8#

 1
71201 - PANEL SUB-ASSY, REAR SEAT CUSHION
71201-13111

CE96,EE96,98..05S

 1
71201-13112

EE96..05S

 1
71398A - HOLDER, REAR SEAT BACK
71398-1303005

CE97,EE97,98;CE96,EE96..(DX,GL)..05S

DARK BEIGE,TRIM4#

 2
71398-1303004

CE97,EE97,98;CE96,EE96..05S

DARK BLUE,TRIM8#

 2
71398-1303003

CE97,EE97,98;CE96,EE96..05S

SHADOW GRAY,TRIM1#

 2
71398A - HOLDER, REAR SEAT BACK
71398-1303005

CE97,EE97,98;CE96,EE96..(DX,GL)..05S

DARK BEIGE,TRIM4#

 2
71398-1303004

CE97,EE97,98;CE96,EE96..05S

DARK BLUE,TRIM8#

 2
71398-1303003

CE97,EE97,98;CE96,EE96..05S

SHADOW GRAY,TRIM1#

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1348003

CE96,EE96,98..GL

SHADOW GRAY,TRIM1#

 1
71460-1348005

CE96,EE96,98..GL

DARK BEIGE,TRIM4#

 1
71460-1348203

CE96,EE96,98..GL

***,SHADOW GRAY,TRIM1#

 1
71460-1348205

CE96,EE96,98..GL

***,DARK BEIGE,TRIM4#

 1
71460-1348104

CE96,EE96,98..GL

***,DARK BLUE,TRIM8#

 1
71460-1348103

CE96,EE96,98..GL

***,SHADOW GRAY,TRIM1#

 1
71460C - CUSHION (FOR REAR SEAT CUSHION)
90541-09057

CE97,EE97,98;CE96,EE96..05S

 5
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1349003

CE96,EE96,98..GL

***,SHADOW GRAY,TRIM1#

 1
71480-1349005

CE96,EE96,98..GL

***,DARK BEIGE,TRIM4#

 1
71480-1366003

EE96..GL

***,LPGﾊﾞﾝ,SHADOW GRAY,TRIM1#

 1
71480-1366005

EE96..GL

***,LPGﾊﾞﾝ,DARK BEIGE,TRIM4#

 1
71480-1349103

CE96,EE96,98..GL

***,SHADOW GRAY,TRIM1#

 1
71480-1366103

EE96..4F..GL

***,LPGﾊﾞﾝ,SHADOW GRAY,TRIM1#

 1
71480-1366104

EE96..4F..GL

***,LPGﾊﾞﾝ,DARK BLUE,TRIM8#

 1
71480-1349104

CE96,EE96,98..GL

***,DARK BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71611-13140

CE96,97,EE96,97,98..GL

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-13130

CE96,97,EE96,97,98..GL

 1
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-1305003

CE97,EE97,98;CE96,EE96..05S

SHADOW GRAY,TRIM1#

 1
72601-1305005

CE97,EE97,98;CE96,EE96..(DX,GL)..05S

DARK BEIGE,TRIM4#

 1
72601-1305004

CE97,EE97,98;CE96,EE96..05S

DARK BLUE,TRIM8#

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72602-1302004

CE97,EE97,98;CE96,EE96..05S

DARK BLUE,TRIM8#

 1
72602-1302003

CE97,EE97,98;CE96,EE96..05S

SHADOW GRAY,TRIM1#

 1
72602-1302005

CE97,EE97,98;CE96,EE96..(DX,GL)..05S

DARK BEIGE,TRIM4#

 1
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-13080

CE97,EE97,98;CE96,EE96..05S

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-13080

CE97,EE97,98;CE96,EE96..05S

 1
72637 - LEVER, REAR SEAT BACK ROD CONTROL, INNER
72637-13030

CE97,EE97,98;CE96,EE96..05S

 1
72661B - LEVER, REAR SEAT BACK ROD CONTROL, OUTER
72661-1302003

CE97,EE97,98;CE96,EE96..05S

SHADOW GRAY,TRIM1#

 1
72661-1302005

CE97,EE97,98;CE96,EE96..(DX,GL)..05S

DARK BEIGE,TRIM4#

 1
72661-1302004

CE97,EE97,98;CE96,EE96..05S

DARK BLUE,TRIM8#

 1
72695 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD
72695-13020

CE97,EE97,98;CE96,EE96..05S

 2
72695 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD
72695-13020

CE97,EE97,98;CE96,EE96..05S

 2
Common parts
90119-06318
90149-60062
90159-60311
90541-06035
91651-60618
93240-46025
93240-56014
93249-45012
94120-40600
94614-10500
Linked diagrams
5804
