EE96V-AXKDS (1987)
Toyota Corolla
Production
Aug 1987
-
Sep 1991
Engine
2E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )2E..EE96

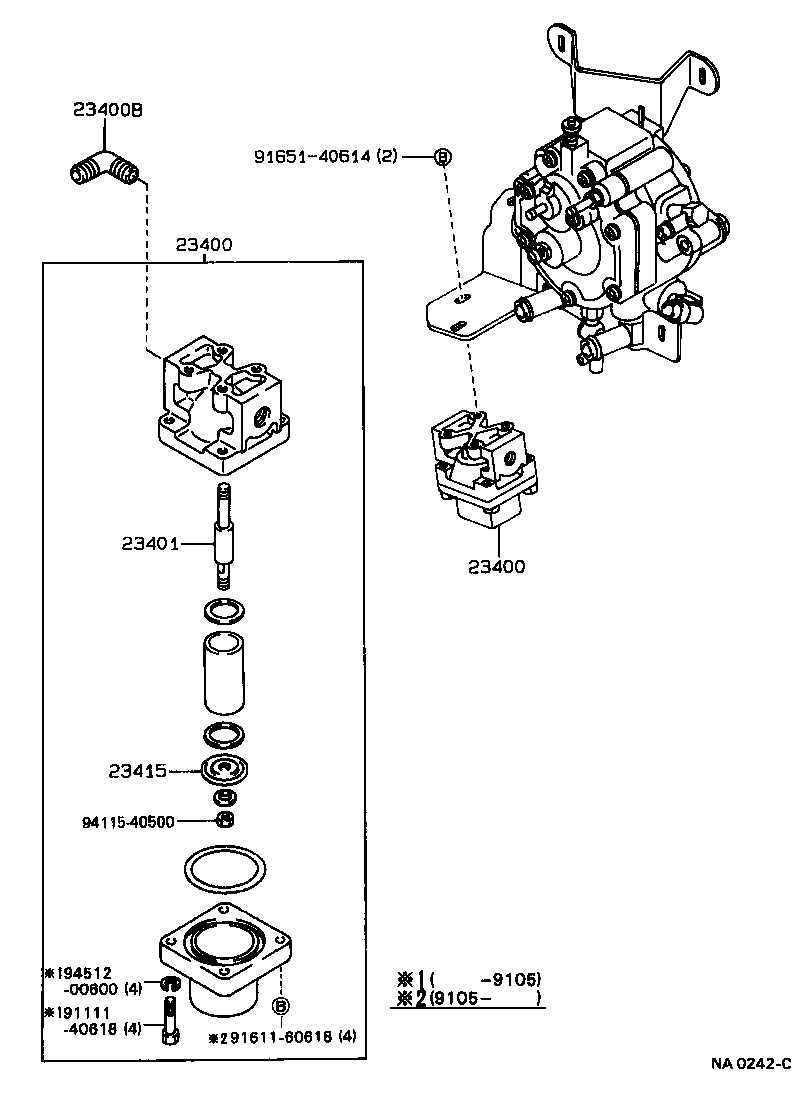

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23400 - FILTER ASSY, LPG | ||||
| 23400-40024 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 23400 - FILTER ASSY, LPG | ||||
| 23400-40024 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 23400B - UNION, LPG FILTER INLET | ||||
| 90407-14023 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 23401 - BOLT SUB-ASSY, STUD(FOR LPG FILTER) | ||||
| 23401-40020 |
2E..EE96 LPG ﾊﾞﾝ |
1 | ||
| 23401-40020 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 23415 - PLATE, ELEMENT | ||||
| 23415-40010 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 23415-40010 |
2E..EE96 LPG ﾊﾞﾝ |
1 | ||
| Common parts | ||||
| 91111-40618 | ||||
| 91611-60618 | ||||
| 91651-40614 | ||||
| 94115-40500 | ||||
| 94512-00600 | ||||
