EE96V-AUKRS (1987)
Toyota Corolla

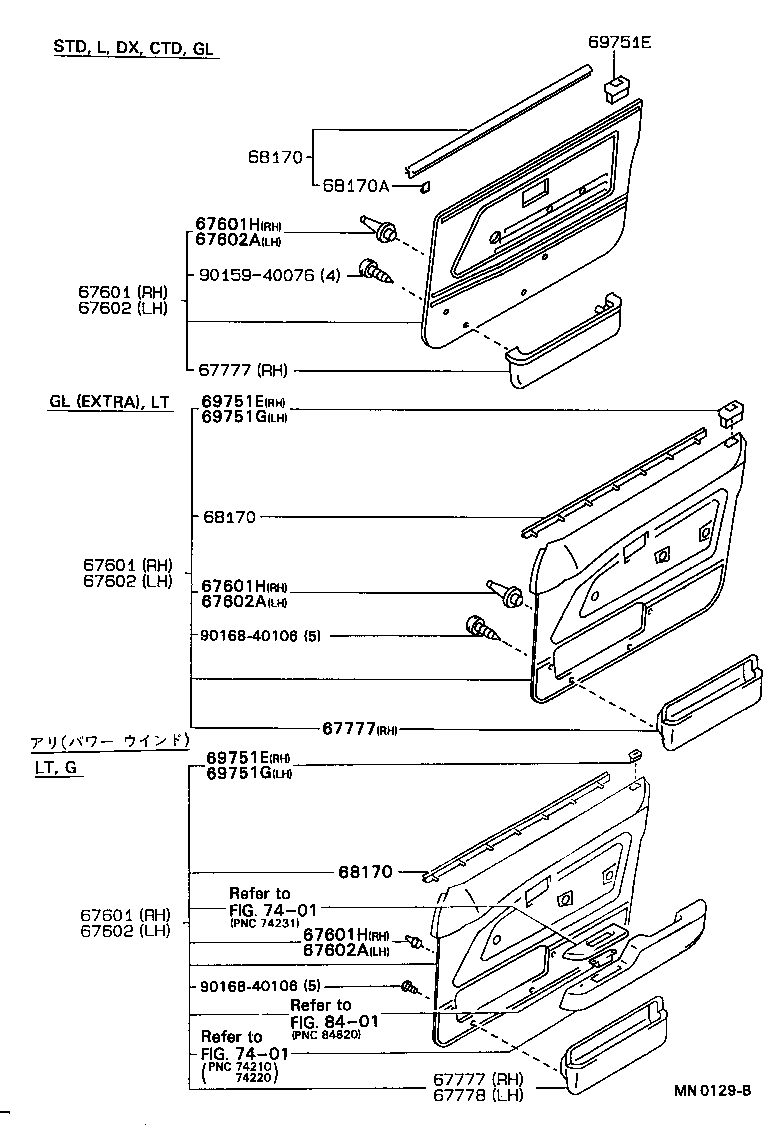

ILLUST NO. 2 OF 2(8908- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1309003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1309003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1309003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1304003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1304003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1304003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12270 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 右側 |
1 | ||
| 68220-12190 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 左側 |
1 | ||
| 68170-12270 |
CE9#,EE9# 右側 |
1 | ||
| 68220-12190 |
CE9#,EE9# 左側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12270 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 右側 |
1 | ||
| 68220-12190 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 左側 |
1 | ||
| 68170-12270 |
CE9#,EE9# 右側 |
1 | ||
| 68220-12190 |
CE9#,EE9# 左側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12270 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 右側 |
1 | ||
| 68220-12190 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 左側 |
1 | ||
| 68170-12270 |
CE9#,EE9# 右側 |
1 | ||
| 68220-12190 |
CE9#,EE9# 左側 |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
CE9#,EE9# |
12 | ||
| 68211-10030 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
12 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2003103 |
CE97,EE97..DX;AE91,CE90,96,EE90,96,98..DX,GL,STD GRAY,TRIM1# |
2 | ||
| 69751-1202003 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD SHADOW GRAY,TRIM1# |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2003103 |
CE97,EE97..DX;AE91,CE90,96,EE90,96,98..DX,GL,STD GRAY,TRIM1# |
2 | ||
| 69751-1202003 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD SHADOW GRAY,TRIM1# |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2003103 |
CE97,EE97..DX;AE91,CE90,96,EE90,96,98..DX,GL,STD GRAY,TRIM1# |
2 | ||
| 69751-1202003 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-40076 | ||||
| 90168-40106 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8708-8908)V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1309003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1309003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1309003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1304003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1304003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1304003 |
CE96,EE96..CTD,STD SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
14 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12270 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 右側 |
1 | ||
| 68220-12190 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 左側 |
1 | ||
| 68170-12270 |
CE9#,EE9# 右側 |
1 | ||
| 68220-12190 |
CE9#,EE9# 左側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12270 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 右側 |
1 | ||
| 68220-12190 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 左側 |
1 | ||
| 68170-12270 |
CE9#,EE9# 右側 |
1 | ||
| 68220-12190 |
CE9#,EE9# 左側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12270 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 右側 |
1 | ||
| 68220-12190 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD 左側 |
1 | ||
| 68170-12270 |
CE9#,EE9# 右側 |
1 | ||
| 68220-12190 |
CE9#,EE9# 左側 |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
CE9#,EE9# |
12 | ||
| 68211-10030 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD |
12 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2003103 |
CE97,EE97..DX;AE91,CE90,96,EE90,96,98..DX,GL,STD GRAY,TRIM1# |
2 | ||
| 69751-1202003 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD SHADOW GRAY,TRIM1# |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2003103 |
CE97,EE97..DX;AE91,CE90,96,EE90,96,98..DX,GL,STD GRAY,TRIM1# |
2 | ||
| 69751-1202003 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD SHADOW GRAY,TRIM1# |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2003103 |
CE97,EE97..DX;AE91,CE90,96,EE90,96,98..DX,GL,STD GRAY,TRIM1# |
2 | ||
| 69751-1202003 |
CE97,EE97..DX,L;AE91,CE90,96,EE90,96,98..CTD,DX,GL,STD SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-40076 | ||||
| 90159-40141 | ||||
| 90168-40025 | ||||
| 90189-04127 | ||||
| Linked diagrams | ||||
| 8401 | ||||
