EE96V-AUKRS (1987)
Toyota Corolla
Production
Aug 1987
-
Sep 1991
Engine
2E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )2E..EE96

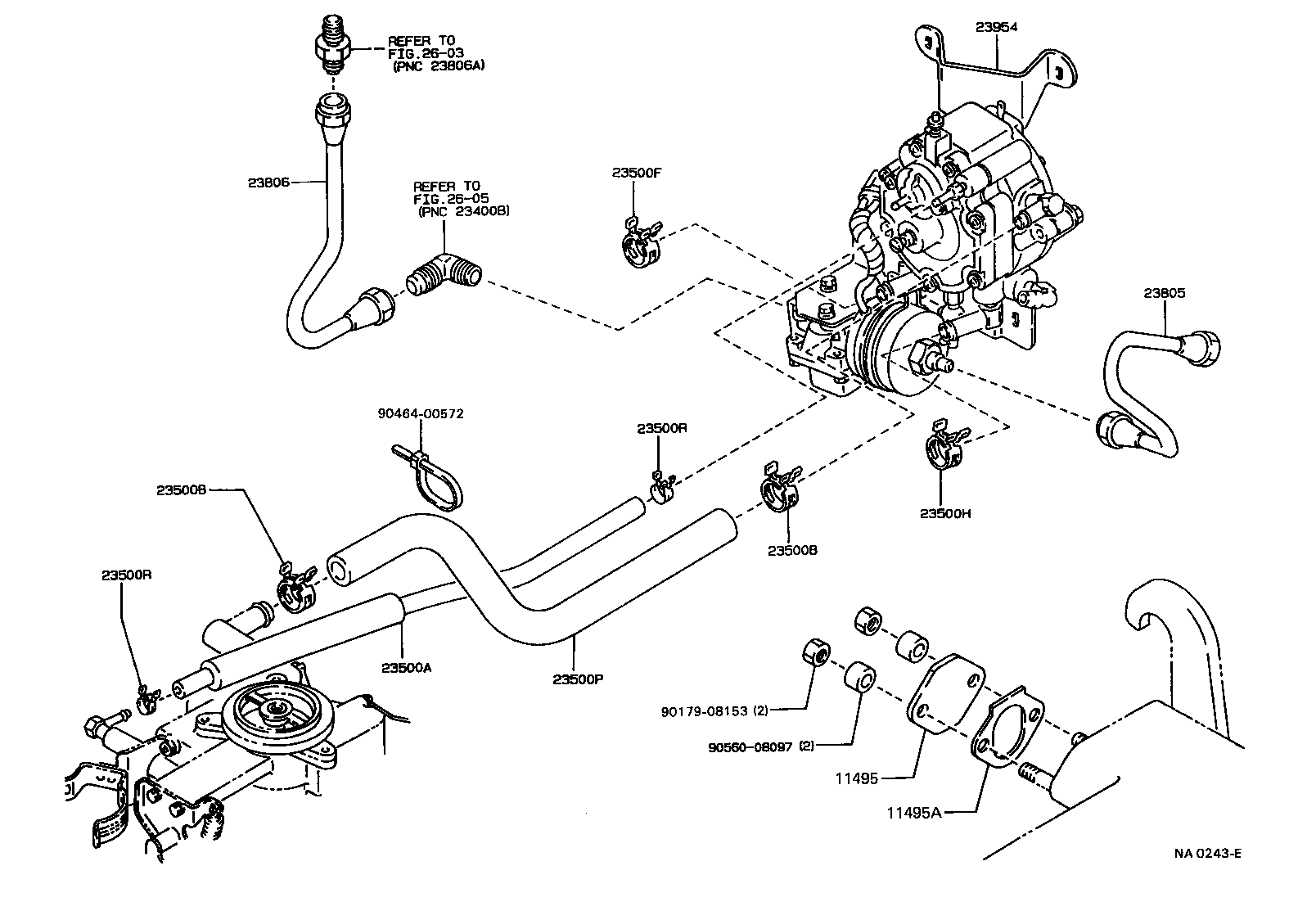

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11495 - PLUG, PLATE(FOR CYLINDER BLOCK) | ||||
| 11495-10010 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 11495-10010 |
2E..EE96..GL,STD LPG ﾊﾞﾝ |
1 | ||
| 11495A - GASKET, FUEL PUMP(FOR CYLINDER BLOCK PLATE PLUG) | ||||
| 90923-05017 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 90923-05017 |
2E..EE96..GL,STD LPG ﾊﾞﾝ |
1 | ||
| 23500A - HOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR) | ||||
| 90447-14065 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 90445-22028 |
2E..EE96 LPG ﾊﾞﾝ |
1 | ||
| 23500B - CLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR | ||||
| 90467-20134 |
2E..EE96..4F LPG ﾊﾞﾝ |
2 | ||
| 23500B - CLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR | ||||
| 90467-20134 |
2E..EE96..4F LPG ﾊﾞﾝ |
2 | ||
| 23500F - CLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE) | ||||
| 90467-22003 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 23500H - CLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE) | ||||
| 90467-22003 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 23500P - HOSE, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR) | ||||
| 23271-11040 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 90445-11087 |
2E..EE96 LPG ﾊﾞﾝ |
1 | ||
| 23500R - CLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR | ||||
| 96132-30400 |
2E..EE96 LPG ﾊﾞﾝ |
2 | ||
| 96132-30800 |
2E..EE96..4F LPG ﾊﾞﾝ |
2 | ||
| 96132-30400 |
2E..EE96 LPG ﾊﾞﾝ |
4 | ||
| 23500R - CLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR | ||||
| 96132-30400 |
2E..EE96 LPG ﾊﾞﾝ |
2 | ||
| 96132-30800 |
2E..EE96..4F LPG ﾊﾞﾝ |
2 | ||
| 96132-30400 |
2E..EE96 LPG ﾊﾞﾝ |
4 | ||
| 23805 - PIPE SUB-ASSY, LPG REGULATOR | ||||
| 23805-10010 |
2E..EE96 LPG ﾊﾞﾝ |
1 | ||
| 23805-10011 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 23806 - PIPE SUB-ASSY, LPG REGULATOR, NO.2 | ||||
| 23806-10010 |
2E..EE96 LPG ﾊﾞﾝ |
1 | ||
| 23806-10011 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 23954 - BRACKET, LPG REGULATOR | ||||
| 23954-10010 |
2E..EE96 LPG ﾊﾞﾝ |
1 | ||
| 23954-10011 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 90464-00572 | ||||
| 90560-08097 | ||||
| Linked diagrams | ||||
| 2603 | ||||
| 2605 | ||||
