EE90-AHKNS (1987)
Toyota Corolla
Production
May 1987
-
May 1989
Engine
2E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )

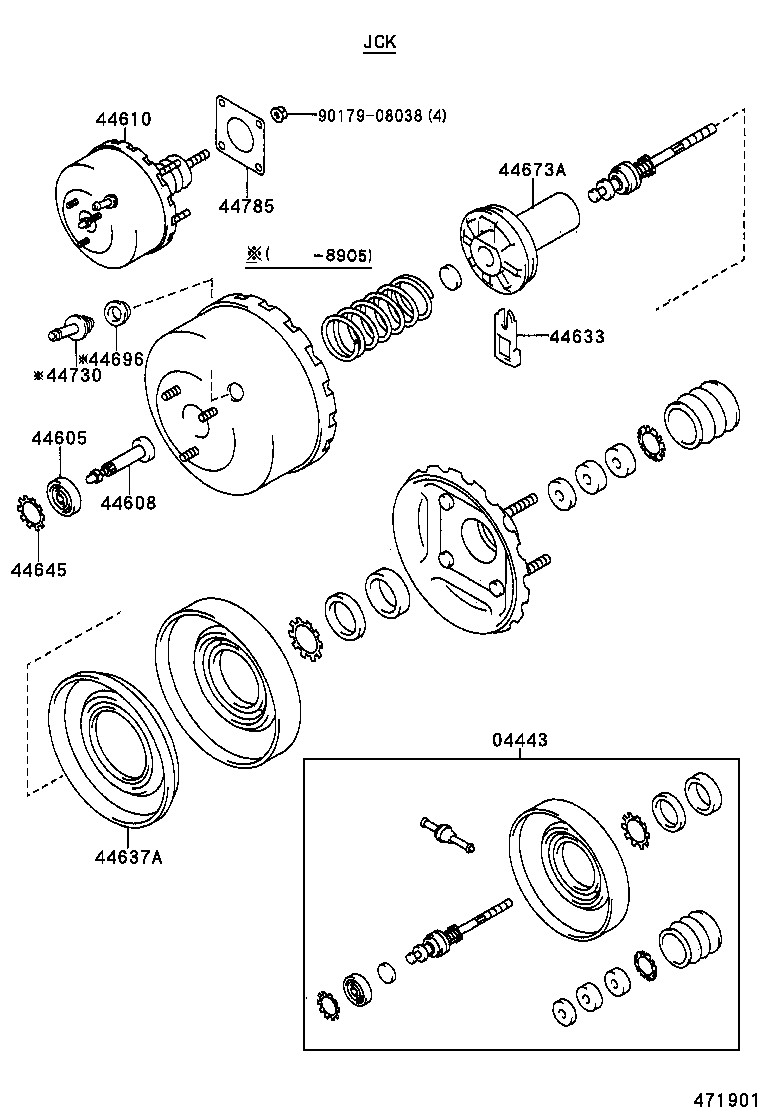

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12570 |
EE90 JKC |
1 | ||
| 04443-12540 |
EE90 AISIN |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-10080 |
AE91,95,CE9#,EE9# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
AE91,95,CE9#,EE9# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12670 |
AE95,EE90;AE91,CE9#..DSL,EFI |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
AE91,95,CE9#,EE9# |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32020 |
AE91,95,CE9#,EE90..DX,FXD,FXG,FXL,FXZI,GL,SE,STD,TX,XE |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
AE91,95,CE9#,EE9# |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32020 |
AE91,95,CE9#,EE90..DX,FXD,FXG,FXL,FXZI,GL,SE,STD,TX,XE |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE9# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
(8705- )

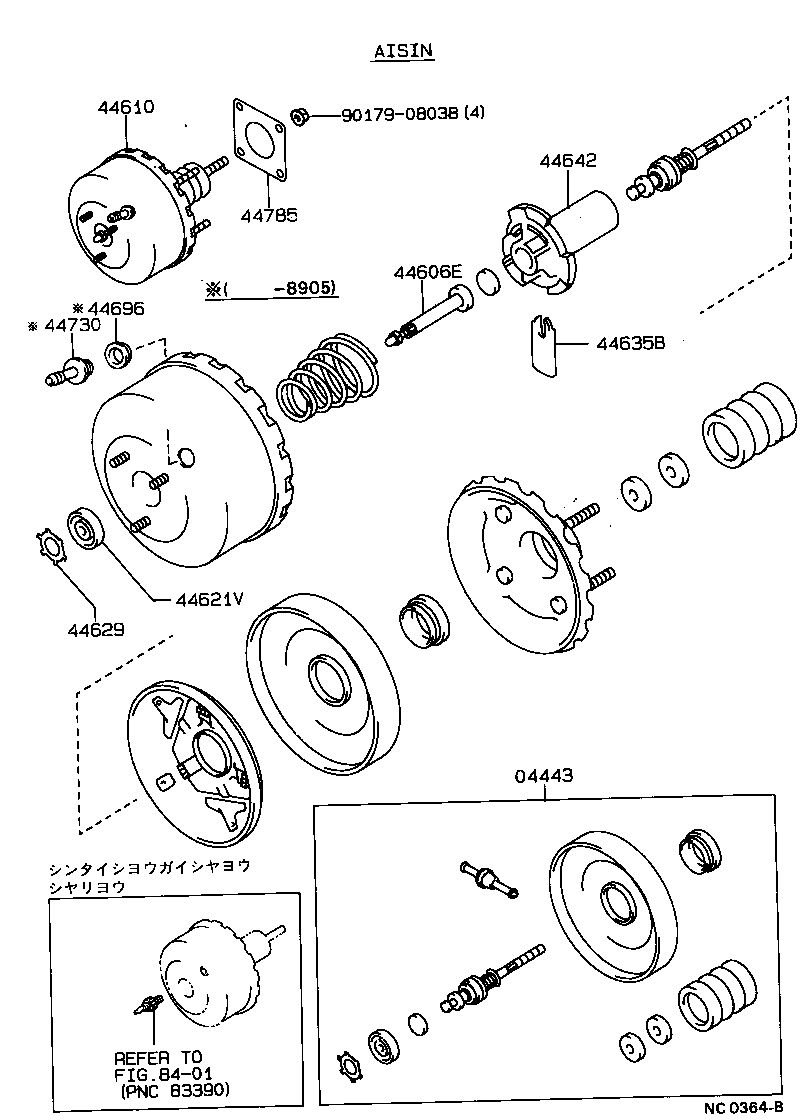

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12570 |
EE90 JKC |
1 | ||
| 04443-12540 |
EE90 AISIN |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
AE9#,CE9#,EE9# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12670 |
AE95,EE90;AE91,CE9#..DSL,EFI |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AE9#,CE9#,EE9# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
AE9#,CE9#,EE9# |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-12630 |
AE9#,CE9#,EE9# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
EE90 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE9# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| Linked diagrams | ||||
| 8401 | ||||

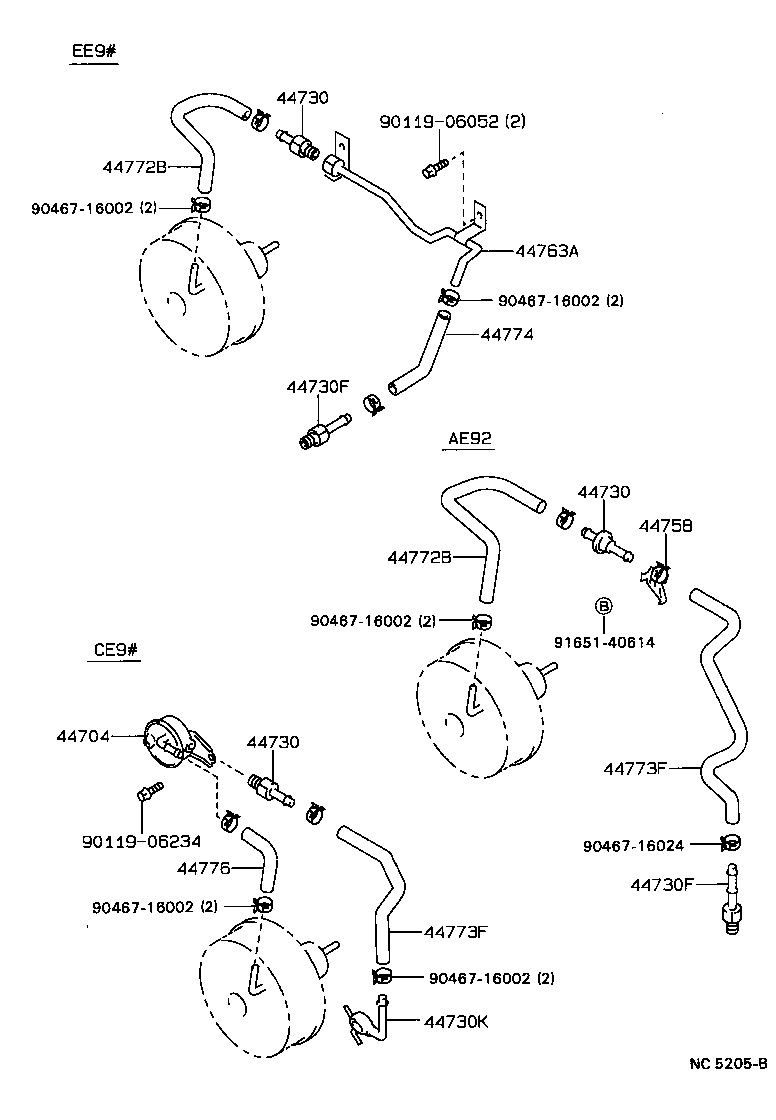

(8705- )AE92,CE9#,EE9#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE9# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE9# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE9# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51034 |
EE9# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51034 |
EE9# |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12070 |
EE9# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12360 |
EE9# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12360 |
EE9# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12090 |
EE9# |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90119-06234 | ||||
| 90467-16002 | ||||
| 90467-16024 | ||||
| 91651-40614 | ||||
