EE90-AHHNS (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )EE9#

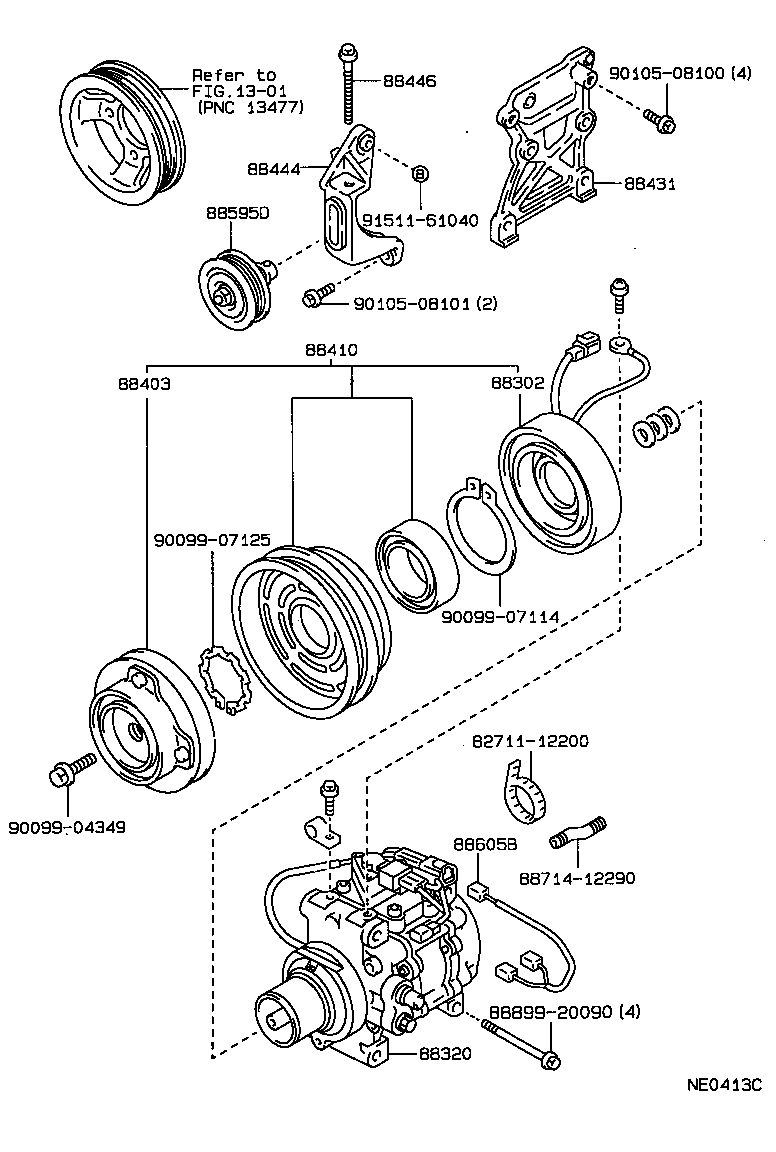

Click highlighted areas on diagram

diagram 1301 8271112200 88302 88320 88403 88410 88431 88444 88446 88595D 88605B 8871412290 8889920090 9009904349 9009907114 9009907125 9010508100 9010508101 9151161040
Part # Description Qty Price
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-16021

EE96..3FC;EE90,97,98

 1
88320 - COMPRESSOR ASSY, COOLER
88320-12570

EE97,98;EE90..FXD,FXL,TX,XE

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88320-12530

EE97,98;EE90..FXD,FXL,TX,XE

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88320-12580

EE9#

 1
88320-12600

EE9#

 1
88320-12620

EE9#

 1
88320-12630

EE97,98;EE90..FXD,FXL,TX,XE

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88320-12680

EE9#

 1
88320-12670

EE97,98;EE90..FXD,FXL,TX,XE

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88320-12630

EE96,97,98;EE90..FXD,FXL,TX,XE

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88320-12670

EE96,97,98;EE90..FXD,FXL,TX,XE

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

EE96..3FC;EE90,97,98

 1
88410 - CLUTCH ASSY, MAGNET
88410-16050

EE90,97,98

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12370

EE96..3FC;EE90,97,98

 1
88444 - BRACKET, IDLE PULLEY
88444-10031

EE90,97;EE96..3FC

 1
88446 - BOLT, IDLE PULLEY
88446-12030

CE90..DX,TX;AE91,95,CE96,97,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE

 1
88446-12030

EE90;CE90..DX,TX;AE91,CE96,97,EE97,98..DX,GL,STD

 1
88595D - PULLEY ASSY, IDLE
88440-12170

EE90;CE9#,EE97,98..DX,GL,STD

 1
88440-12170

EE90;CE9#,EE97,98..DX,GL,STD,TX

 1
88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-1A750

EE97,98;EE90..FXD,FXL,TX,XE

 1
Common parts
82711-12200
88714-12290
88899-20090
90099-04349
90099-07114
90099-07125
90105-08100
90105-08101
91511-61040
Linked diagrams
1301
