EE90-AHHNS (1987)
Toyota Corolla
ILLUST NO. 1 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12380 |
CE90,96..5F..(DX,GL,STD,TX,XE);AE91,95,CE97,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-12040 |
AE9#,CE90,EE90..DX,FXD,FXG,FXGT,FXL,FXZI,GT,TX,XE |
1 | ||
| 88463-12040 |
AE91..4FC..EFI;AE91,95..MTM..(DX,FXG,FXL,FXZI,G,TX,XE);AE92,CE9#,EE90,97,98..DX,FXD,FXGT,FXL,GL,GT,STD,TX,XE |
1 | ||
| 88463-12040 |
AE91..4FC..EFI;AE91..(3FC,4F,5F)..(DX,FXG,FXL,FXZI,G,TX,XE);AE92,CE9#,EE9#..DX,FXD,FXGT,FXL,GL,GT,STD,TX,XE |
1 | ||
| 88463-12040 |
AE91..4FC..EFI;AE91..(3FC,4F,5F)..(DX,FXG,FXL,FXZI,G,TX,XE);AE92,95,CE9#,EE90,97,98..DX,FXD,FXGT,FXL,GL,GT,STD,TX,XE |
1 | ||
| 88463-12041 |
AE95,EE90,98..(3FC,4F,5F)..(DX,FXD,FXL,GL,TX,XE);AE91,CE9#,EE97..(4F,4FC,5F)..(DX,FXL,GL,STD,TX,XE) |
1 | ||
| 88463-12041 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 88463-12041 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12081 |
AE95,EE90,98..(3FC,4F,5F)..(DX,FXD,FXL,GL,TX,XE);AE91,CE9#,EE97..(4F,4FC,5F)..(DX,FXL,GL,STD,TX,XE) |
2 | ||
| 88467-12081 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
2 | ||
| 88467-12081 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
2 | ||
| 88467-12080 |
AE95,EE90,98..(3FC,4F,5F)..(DX,FXD,FXL,GL,TX,XE);AE91,CE9#,EE97..(4F,4FC,5F)..(DX,FXL,GL,STD,TX,XE) |
2 | ||
| 88467-12080 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.1 |
4 | ||
| 88467-20040 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.2 |
4 | ||
| 88467-20040 |
EE90;AE91,EE97,98..DX,GL NO.2 |
4 | ||
| 88467-14070 |
EE90;AE91,EE97,98..DX,GL NO.1 |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.1 |
4 | ||
| 88467-20040 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.2 |
4 | ||
| 88467-20040 |
EE90;AE91,EE97,98..DX,GL NO.2 |
4 | ||
| 88467-14070 |
EE90;AE91,EE97,98..DX,GL NO.1 |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.1 |
4 | ||
| 88467-20040 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.2 |
4 | ||
| 88467-20040 |
EE90;AE91,EE97,98..DX,GL NO.2 |
4 | ||
| 88467-14070 |
EE90;AE91,EE97,98..DX,GL NO.1 |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.1 |
4 | ||
| 88467-20040 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.2 |
4 | ||
| 88467-20040 |
EE90;AE91,EE97,98..DX,GL NO.2 |
4 | ||
| 88467-14070 |
EE90;AE91,EE97,98..DX,GL NO.1 |
4 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-12020 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE L=167 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12040 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE 400G |
1 | ||
| 90986-02001 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE 400G |
2 | ||
| 90986-02004 |
EE90;AE91,CE9#,EE97,98..DX,GL,STD 250G |
1 | ||
| 90986-02004 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE 250G |
1 | ||
| 90986-02002 |
EE90;AE91,CE9#,EE97,98..DX,GL,STD 300G |
1 | ||
| 90986-02001 |
EE90;AE91,CE9#,EE97,98..DX,GL,STD 400G |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12240 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| Common parts | ||||
| 88467-12081 | ||||
| 88578-12120 | ||||
| 88688-12590 | ||||
| 88688-12600 | ||||
| 88688-12770 | ||||
| 90091-20609 | ||||
| 90091-20613 | ||||
| 90091-20621 | ||||
| 90091-20809 | ||||
| 90119-06336 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
ILLUST NO. 2 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-12050 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-12050 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12100 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12100 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.1 |
4 | ||
| 88467-20040 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.2 |
4 | ||
| 88467-20040 |
EE90;AE91,EE97,98..DX,GL NO.2 |
4 | ||
| 88467-14070 |
EE90;AE91,EE97,98..DX,GL NO.1 |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14070 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.1 |
4 | ||
| 88467-20040 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.2 |
4 | ||
| 88467-20040 |
EE90;AE91,EE97,98..DX,GL NO.2 |
4 | ||
| 88467-14070 |
EE90;AE91,EE97,98..DX,GL NO.1 |
4 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12120 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12120 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12170 |
EE90,98;AE91,95,EE97..MTM..(DX,FXL,GL,TX,XE) |
1 | ||
| 88590-12170 |
EE90,98;AE91,95,EE96,97..MTM..(DX,FXL,GL,STD,TX,XE) |
1 | ||
| 88590-12170 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12170 |
EE90,98;AE91,95,EE97..MTM..(DX,FXL,GL,TX,XE) |
1 | ||
| 88590-12170 |
EE90,98;AE91,95,EE96,97..MTM..(DX,FXL,GL,STD,TX,XE) |
1 | ||
| 88590-12170 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88688-12780 | ||||
| 88718-22420 | ||||
| 88892-12180 | ||||
| 90099-04376 | ||||
| 90119-06336 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||

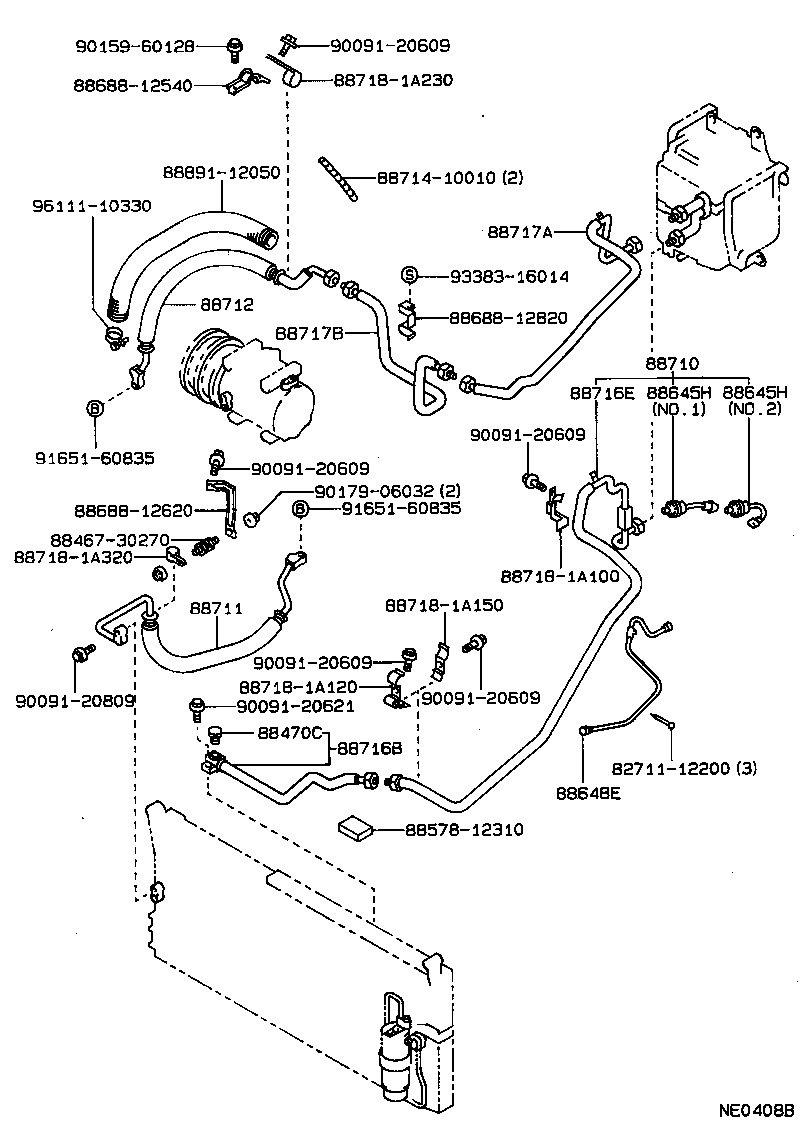

ILLUST NO. 3 OF 3(8705- )EE9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
CE90..DX,TX;AE91,95,CE96,97,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12050 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.1 |
1 | ||
| 88645-32020 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.2 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12050 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.1 |
1 | ||
| 88645-32020 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE NO.2 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-12410 |
AE91,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 88648-12410 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88706-12040 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12500 |
EE96..3FC;EE90,97,98 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12610 |
EE96..3FC;EE90,97,98 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-12280 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-12260 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12400 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-12490 |
AE91,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 88717-12490 |
AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-30270 | ||||
| 88578-12310 | ||||
| 88688-12540 | ||||
| 88688-12620 | ||||
| 88688-12820 | ||||
| 88714-10010 | ||||
| 88718-1A100 | ||||
| 88718-1A120 | ||||
| 88718-1A150 | ||||
| 88718-1A230 | ||||
| 88718-1A320 | ||||
| 88891-12050 | ||||
| 90091-20609 | ||||
| 90091-20621 | ||||
| 90091-20809 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 91651-60835 | ||||
| 93383-16014 | ||||
| 96111-10330 | ||||
