EE90-AGKNS (1987)

Toyota Corolla

Production May 1987 - May 1989
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE9#,CE90,95,EE90 ; (8908- )CE97,EE97

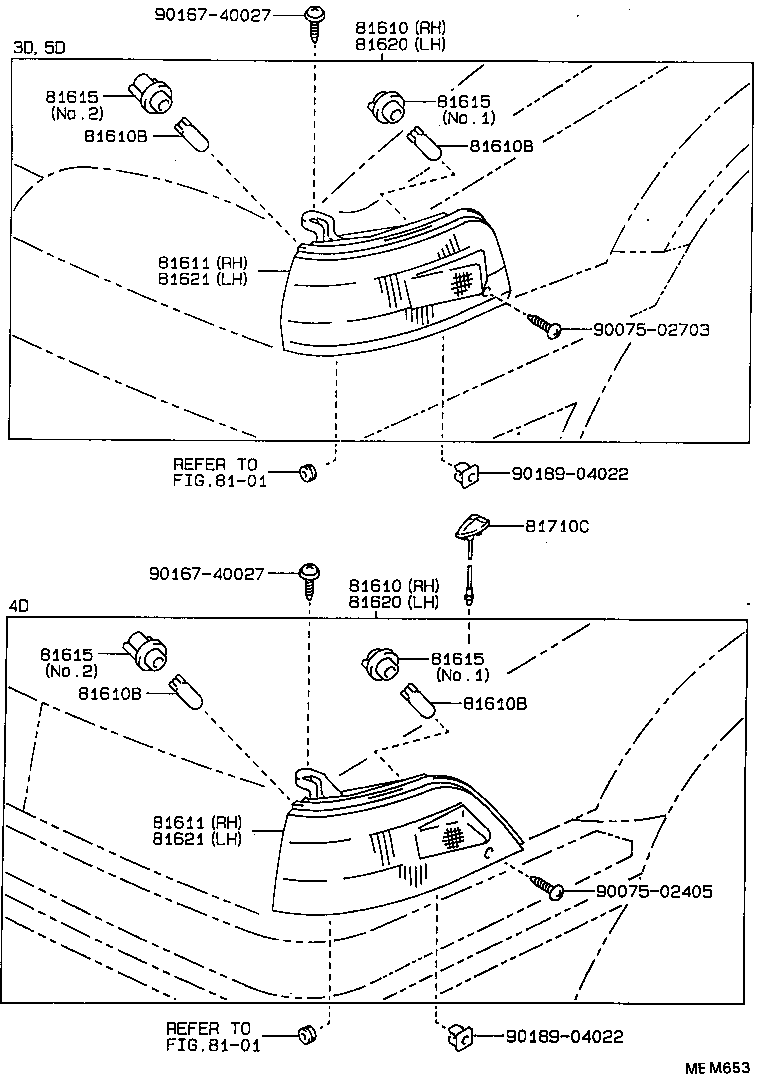

Click highlighted areas on diagram

diagram 8101 8101 81610 81610 81610B 81610B 81610B 81610B 81611 81611 81615 81615 81615 81615 81620 81620 81621 81621 81710C 9007502405 9007502703 9016740027 9016740027 9018904022 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-12471

AE91,92,EE90..3D,5D

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-12471

AE91,92,EE90..3D,5D

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CE97,EE97..L;AE9#,CE90,95,EE90

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CE97,EE97..L;AE9#,CE90,95,EE90

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CE97,EE97..L;AE9#,CE90,95,EE90

12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CE97,EE97..L;AE9#,CE90,95,EE90

12V 5W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-12471

AE91,92,EE90..3D,5D

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-12471

AE91,92,EE90..3D,5D

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
90075-99006

CE97,EE97..L;AE9#,CE90,95,EE90

NO.2

 2
90075-99007

CE97,EE97..L;AE9#,CE90,95,EE90

NO.1

 2
81615 - SOCKET AND WIRE, CLEARANCE LAMP
90075-99006

CE97,EE97..L;AE9#,CE90,95,EE90

NO.2

 2
90075-99007

CE97,EE97..L;AE9#,CE90,95,EE90

NO.1

 2
81615 - SOCKET AND WIRE, CLEARANCE LAMP
90075-99006

CE97,EE97..L;AE9#,CE90,95,EE90

NO.2

 2
90075-99007

CE97,EE97..L;AE9#,CE90,95,EE90

NO.1

 2
81615 - SOCKET AND WIRE, CLEARANCE LAMP
90075-99006

CE97,EE97..L;AE9#,CE90,95,EE90

NO.2

 2
90075-99007

CE97,EE97..L;AE9#,CE90,95,EE90

NO.1

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-12471

AE91,92,EE90..3D,5D

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-12471

AE91,92,EE90..3D,5D

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-12471

AE91,92,EE90..3D,5D

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-12471

AE91,92,EE90..3D,5D

 1
Common parts
90075-02405
90075-02703
90167-40027
90189-04022
Linked diagrams
8101
