EE90-AGKDS (1987)
Toyota Corolla
(8705-8905) ; (8905-8908)AE91,CE96,97,EE96,97,98..CBR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80007 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84112-80005 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84140-12220 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12800 |
AE91,95,CE9#,EE9#..CTD,DX,FXD,L,STD,TX |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84312-12040 |
CE9#,EE90,97,98..DX,FXD,SE,STD,TX 東海理化 |
1 | ||
| 84312-12050 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84312-12050 |
CE9#,EE90,97,98..DX,FXD,SE,STD,TX MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 84329-12010 |
AE9#,CE9#,EE9#..DX,FXD,FXG,FXGT,FXZI,G,GT,SE,STD,TX |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12250 |
AE91,95,CE90,EE90..CBR,DSL |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE9#,CE9#,EE9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12440 |
AE91,95,CE9#,EE9#..CTD,DX,FXD,L,STD,TX 東海理化 |
1 | ||
| 84652-12430 |
AE91,95,CE9#,EE9#..CTD,DX,FXD,L,STD,TX MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20100 |
EE90 1-ﾎﾞﾀﾝ |
1 | ||
| 84660-20090 |
CE96,97,EE9# |
1 | ||
| 84670 - SWITCH ASSY, REAR WIPER & DEFOGGER | ||||
| 84670-1201003 |
AE91,CE96,97,EE9#..(3D,5D,V,WG)..(DX,FXD,FXL,GL)..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 84670-1201005 |
AE91,CE96,97,EE9#..(3D,5D,V,WG)..(DX,FXD,FXL,GL)..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12230 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# LEVER TYPE |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12230 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# LEVER TYPE |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# 14V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1222003 |
EE98..MTM;EE98..3FC..GL;CE96,EE96..GL,STD;CE96,EE96..DX..02S;AE91,95,CE90,97,EE90,97..DX,FXD,GL,SE,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1222005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,SE,TX,XE DARK BEIGE,TRIM4# |
1 | ||
| 84790-1222003 |
AE91,95,CE9#,EE9#..DX,FXD,GL,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1222005 |
EE98..3FC..GL;CE96,EE96..DX..02S;CE97,EE97,98..4F,4FC,5F;AE91,95,CE90,96,EE90,96..FXD,GL,SE,TX,XE DARK BEIGE,TRIM4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9#,CE9#,EE9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9#,CE9#,EE9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||
(8705-8905) ; (8905-8908)AE91,CE96,97,EE96,97,98..CBR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE9#,CE9#,EE9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE9#,CE9#,EE9# 30A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE9#,CE9#,EE9# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-12030 |
AE91,95,EE90,97..CBR |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12770 |
EE90,97..4F |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12770 |
EE90,97..4F |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06070 | ||||
| 90560-06201 | ||||
| 91655-40616 | ||||
| 93319-15010 | ||||
(8705-8905) ; (8905-8908)AE91,CE96,97,EE96,97,98..CBR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80075 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.A31-32 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80075 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.A31-32 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE9#,CE9#,EE9# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9#,CE9#,EE9# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
AE91..FXZI;AE91,EE90..(FXG,G,SE,TX,XE)..CBR;AE92,95,CE90,EE98..(3FC,4FC,5F)..(FXGT,GL,GT,SE,XE) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12250 |
EE90,97 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90159-60229 | ||||
| 90189-06048 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06009 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93315-15010 | ||||

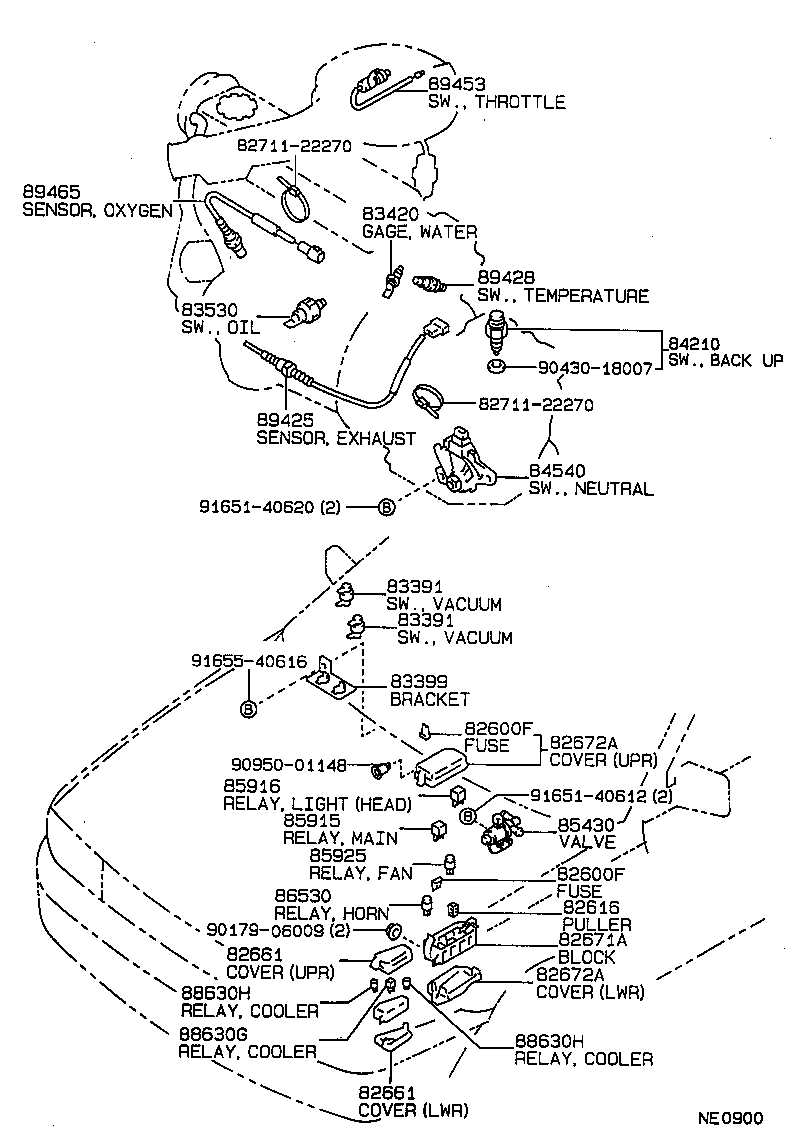

(8705-8905)EE9# ; (8905-8908)EE96,97,98
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12050 |
AE91,95,EE90,98..CBR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12010 |
AE91,95,EE9#..CBR 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12010 |
AE91,95,EE9#..CBR 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
AE91,EE90..CBR MARK=80FM,TOKAIRIKA |
1 | ||
| 83391-12210 |
EE90..4F;AE91,EE97..CBR MARK=80FM,TOKAIRIKA |
1 | ||
| 83391-12230 |
EE90,97 MARK=250FB,TOKAIRIKA |
1 | ||
| 83391-12240 |
EE90,97 MARK=250FB,AISIN |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12210 |
AE91,EE90..CBR MARK=80FM,TOKAIRIKA |
1 | ||
| 83391-12210 |
EE90..4F;AE91,EE97..CBR MARK=80FM,TOKAIRIKA |
1 | ||
| 83391-12230 |
EE90,97 MARK=250FB,TOKAIRIKA |
1 | ||
| 83391-12240 |
EE90,97 MARK=250FB,AISIN |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-12100 |
EE90,97 |
1 | ||
| 83399-12100 |
EE90,97..4F |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE91,95,EE9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
AE92,EE9#..CTD,DX,FXD,FXGT,FXL,GL,GT,L,STD,TX,XE |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE91,95,CE9#,EE9#..MTM |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09034 |
EE9# |
1 | ||
| 90925-09024 |
EE9# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE9#,CE9#,EE9# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
2 | ||
| 90987-02004 |
EE90;AE91,CE9#,EE97,98..DX,GL,STD |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
2 | ||
| 90987-02004 |
EE90;AE91,CE9#,EE97,98..DX,GL,STD |
2 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12250 |
EE90,97 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10100 |
EE9# AISIN |
1 | ||
| 89428-10110 |
EE9# NIPPONDENSO |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-16010 |
EE90,97,98 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-32060 |
AE91..EFI;EE90..4F..DX;EE90..FXD,FXL,TX,XE |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90179-06009 | ||||
| 90430-18007 | ||||
| 90950-01148 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
