EE90-AEKNS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )EE9#

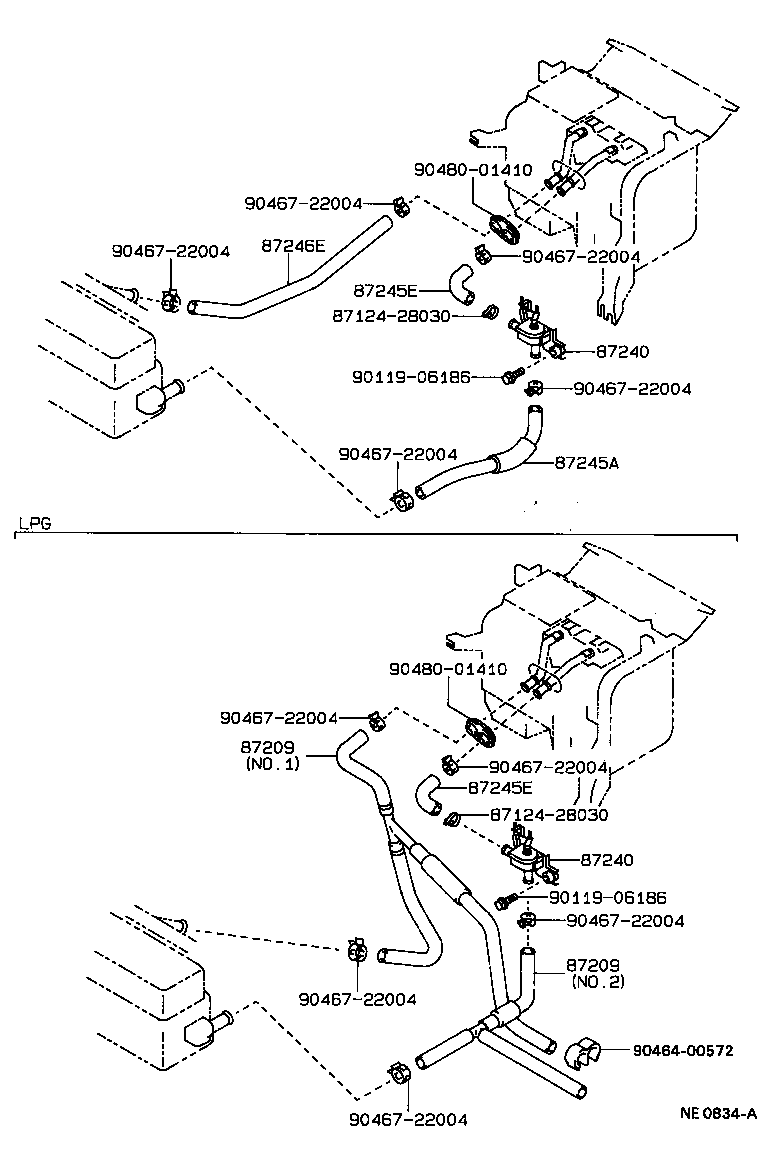

Click highlighted areas on diagram

diagram 8712428030 8712428030 87209 87209 87240 87240 87245A 87245E 87245E 87246E 9011906186 9011906186 9046400572 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9048001410 9048001410
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-12230

AE9#,CE9#,EE9#

 1
87240 - VALVE ASSY, HEATER WATER
87240-12230

AE9#,CE9#,EE9#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12840

AE91,95,EE9#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1A300

AE9#,CE90,EE90..3D,4D,5D

 1
87245-1A300

AE9#,CE9#,EE9#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1A300

AE9#,CE90,EE90..3D,4D,5D

 1
87245-1A300

AE9#,CE9#,EE9#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1A210

EE9#

 1
Common parts
87124-28030
90119-06186
90464-00572
90467-22004
90480-01410
