EE90-AEKNS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE9#,CE90,95,EE90..4D,WG ; (8908-)CE97,EE97

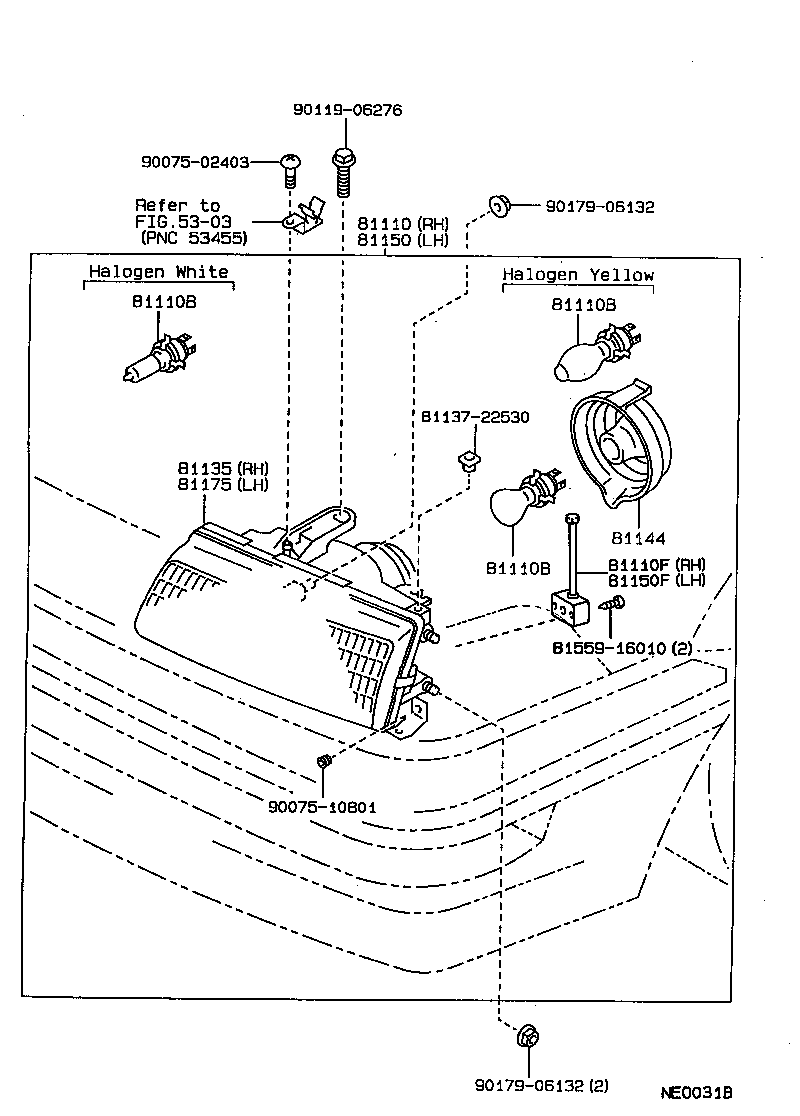

Click highlighted areas on diagram

diagram 5303 81110 81110B 81110B 81110B 81110F 81135 8113722530 81144 81150 81150F 81175 8155916010 9007502403 9007510801 9011906276 9017906132 9017906132
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-1A590

AE9#,CE90,EE90..G,GT,SE,XE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AE95..SE,XE;AE91,92,CE90,EE90

12V 60/55W,*HAL *WH

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AE95..SE,XE;AE91,92,CE90,EE90

12V 60/55W,*HAL *WH

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AE95..SE,XE;AE91,92,CE90,EE90

12V 60/55W,*HAL *WH

 2
81110F - GEAR UNIT ASSY, RH NO.1
90075-99077

AE9#,CE90,95,EE90

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-1A590

AE9#,CE90,EE90..G,GT,SE,XE

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

CE97,EE97..L;AE9#,CE90,95,EE90

 2
81150 - HEADLAMP ASSY, LH
81160-1A590

AE9#,CE90,EE90..G,GT,SE,XE

 1
81150F - GEAR UNIT ASSY, LH NO.1
90075-99077

AE9#,CE90,95,EE90

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-1A590

AE9#,CE90,EE90..G,GT,SE,XE

 1
Common parts
81137-22530
81559-16010
90075-02403
90075-10801
90119-06276
90179-06132
Linked diagrams
5303
