EE90-AEKNS (1987)
Toyota Corolla
Production
May 1987
-
Jun 1991
Engine
2E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8905- )2E..EE90 ; (8908- )2E,3E..EE96,97,98
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04211 - CARBURETOR KIT | ||||
| 04211-11090 |
2E..EE90 |
1 | ||
| 04211-11090 |
2E,3E..EE9# |
1 | ||
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-11040 |
2E..EE90,96,97 |
1 | ||
| 04212-11040 |
2E..EE90,96,97 |
1 | ||
| 04212-11070 |
2E..EE90 |
1 | ||
| 04212-11070 |
2E,3E..EE9# |
1 | ||
| 04212-11040 |
2E,3E..EE9# |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-11231 |
2E..EE90..4F |
1 | ||
| 21100-11232 |
2E..EE90,97..4F |
1 | ||
| 21100-11233 |
2E..EE90,97..4F |
1 | ||
| 21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1 | ||||
| 21901-11010 |
2E..EE90,96,97 |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||

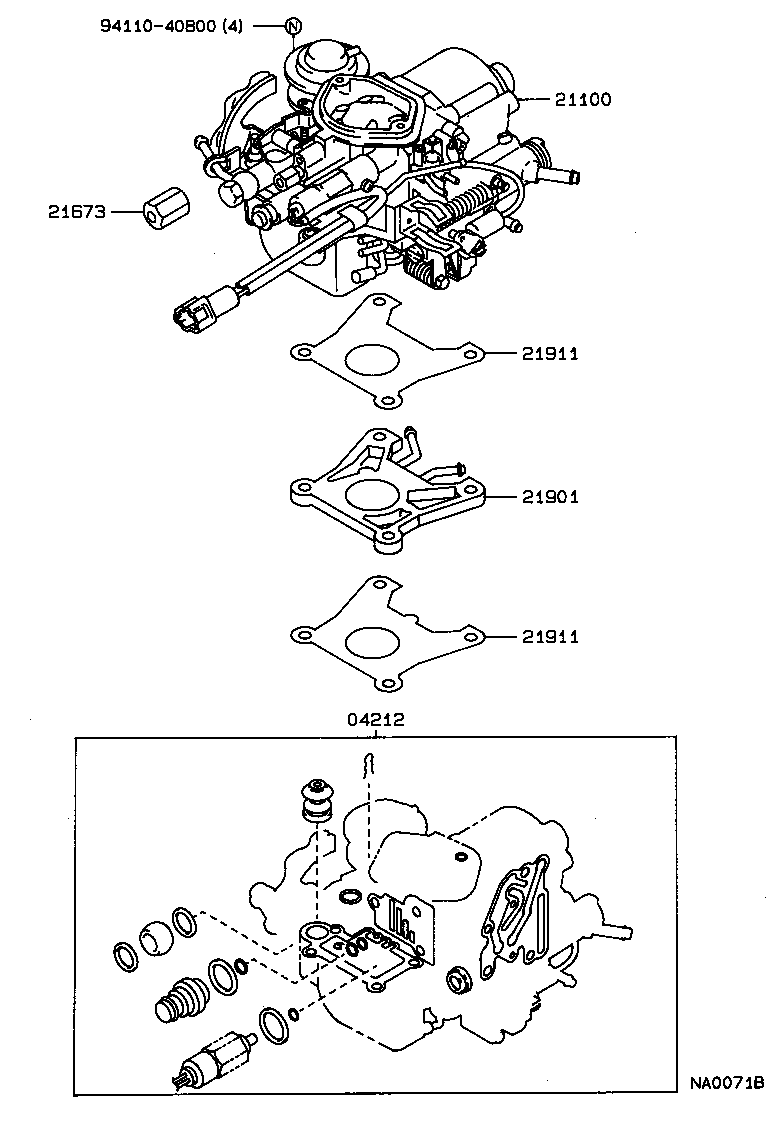

(8705-8905)2E..EE90 ; (8708-8908)2E,3E..EE96,97,98
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-11040 |
2E..EE90,96,97 |
1 | ||
| 04212-11040 |
2E..EE90,96,97 |
1 | ||
| 04212-11070 |
2E..EE90 |
1 | ||
| 04212-11070 |
2E,3E..EE9# |
1 | ||
| 04212-11040 |
2E,3E..EE9# |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-11231 |
2E..EE90..4F |
1 | ||
| 21100-11232 |
2E..EE90,97..4F |
1 | ||
| 21100-11233 |
2E..EE90,97..4F |
1 | ||
| 21673 - CAP, IDLE LIMIT | ||||
| 21673-13280 |
2E,3E..EE9# |
1 | ||
| 21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1 | ||||
| 21901-11010 |
2E..EE90,96,97 |
1 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-11020 |
2E..EE90,96,97 |
2 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-11020 |
2E..EE90,96,97 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
