EE90-AEKDS (1987)
Toyota Corolla
(8705- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-1A330 |
AE91,95,CE90,EE90..DX,TX |
1 | ||
| 64401-1A330 |
AE91,95,CE90,EE90..DX,TX |
1 | ||
| 64401-1A332 |
AE91,95,CE90,95,EE90..DX,TX |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-20002 |
AE9#,CE90,EE90..4D ﾘﾔ |
4 | ||
| 90541-20002 |
AE9#,CE90,EE90..4D ﾘﾔ |
4 | ||
| 90541-20002 |
AE9#,CE90,95,EE90..4D ﾘﾔ |
4 | ||
| 64459-12010 |
AE9#,CE90,95,EE90..4D ﾘﾔ |
4 | ||
| 90541-06076 |
AE9#,CE90,95,EE90..4D ﾌﾛﾝﾄ |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-20002 |
AE9#,CE90,EE90..4D ﾘﾔ |
4 | ||
| 90541-20002 |
AE9#,CE90,EE90..4D ﾘﾔ |
4 | ||
| 90541-20002 |
AE9#,CE90,95,EE90..4D ﾘﾔ |
4 | ||
| 64459-12010 |
AE9#,CE90,95,EE90..4D ﾘﾔ |
4 | ||
| 90541-06076 |
AE9#,CE90,95,EE90..4D ﾌﾛﾝﾄ |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-12350 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-12030 |
AE9#,CE90,95,EE90..4D |
2 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-12030 |
AE9#,CE90,95,EE90..4D |
2 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-12240 |
AE91,95,CE90,95,EE90..DX,TX |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-12230 |
AE91,95,CE90,95,EE90..DX,TX |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-09014 |
AE9#,CE90,95,EE90..4D |
2 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-09014 |
AE9#,CE90,95,EE90..4D |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-32010 |
AE9#,CE90,95,EE90..4D |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-32010 |
AE9#,CE90,95,EE90..4D |
2 | ||
| 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64571-30020 |
AE9#,CE90,95,EE90..4D |
2 | ||
| 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64571-30020 |
AE9#,CE90,95,EE90..4D |
2 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-12060 |
AE9#,CE90,95,EE90..GT,SE,TX,XE |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
AE9#,CE90,EE90..GT,SE,TX,XE |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
AE9#,CE90,EE90..GT,SE,TX,XE |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-12351 |
AE9#,CE90,95,EE90..GT,SE,TX,XE |
1 | ||
| 64607-12350 |
AE91,95,CE90,EE90..(SE,TX,XE)..(CBR,DSL) |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-12100 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-07013 |
AE9#,CE90,95,EE90..4D WD=0.65,CW=12.5 |
1 | ||
| 90506-07013 |
AE9#,CE90,EE90..4D |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-12070 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 69565B - FUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69565-12040 |
AE9#,CE90,95,EE90..4D |
1 | ||
| Common parts | ||||
| 69759-24050 | ||||
| 90105-06037 | ||||
| 90105-06051 | ||||
| 90119-06457 | ||||
| 90467-0710403 | ||||
| 90467-11030 | ||||
| 90959-01334 | ||||
| 91651-40612 | ||||

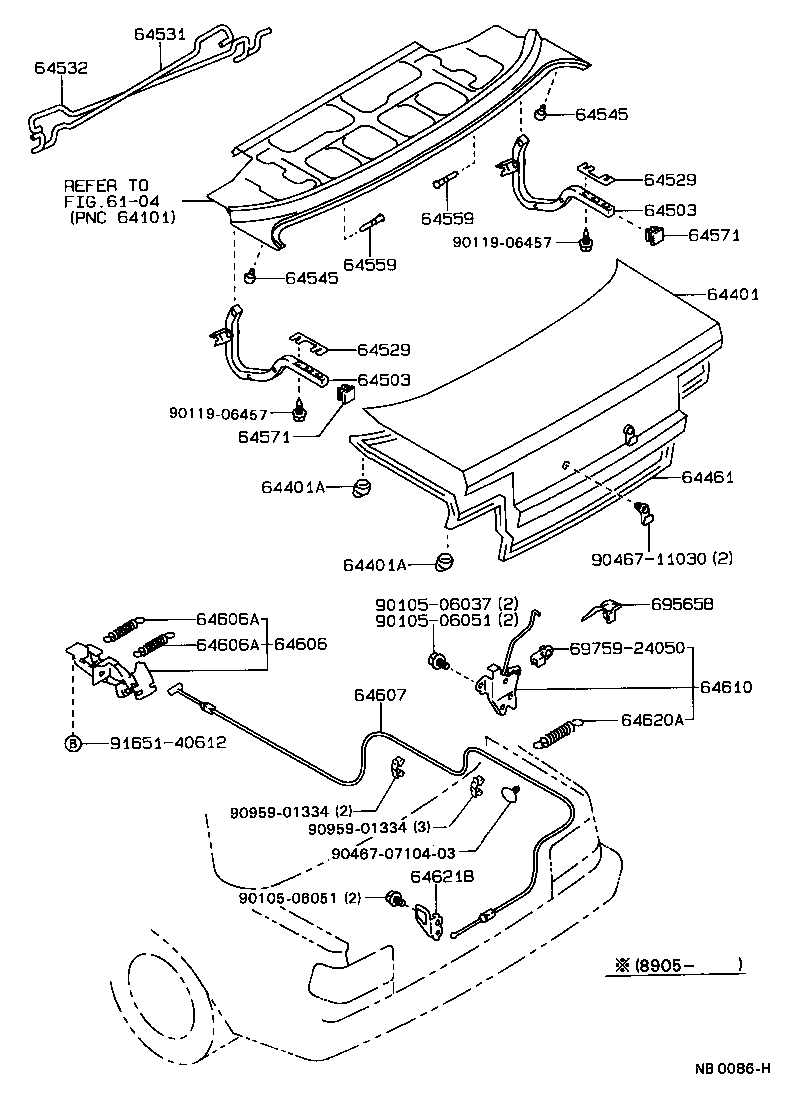

| Linked diagrams | ||||
| 6104 | ||||
