EE90-AEKBS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )EE9#

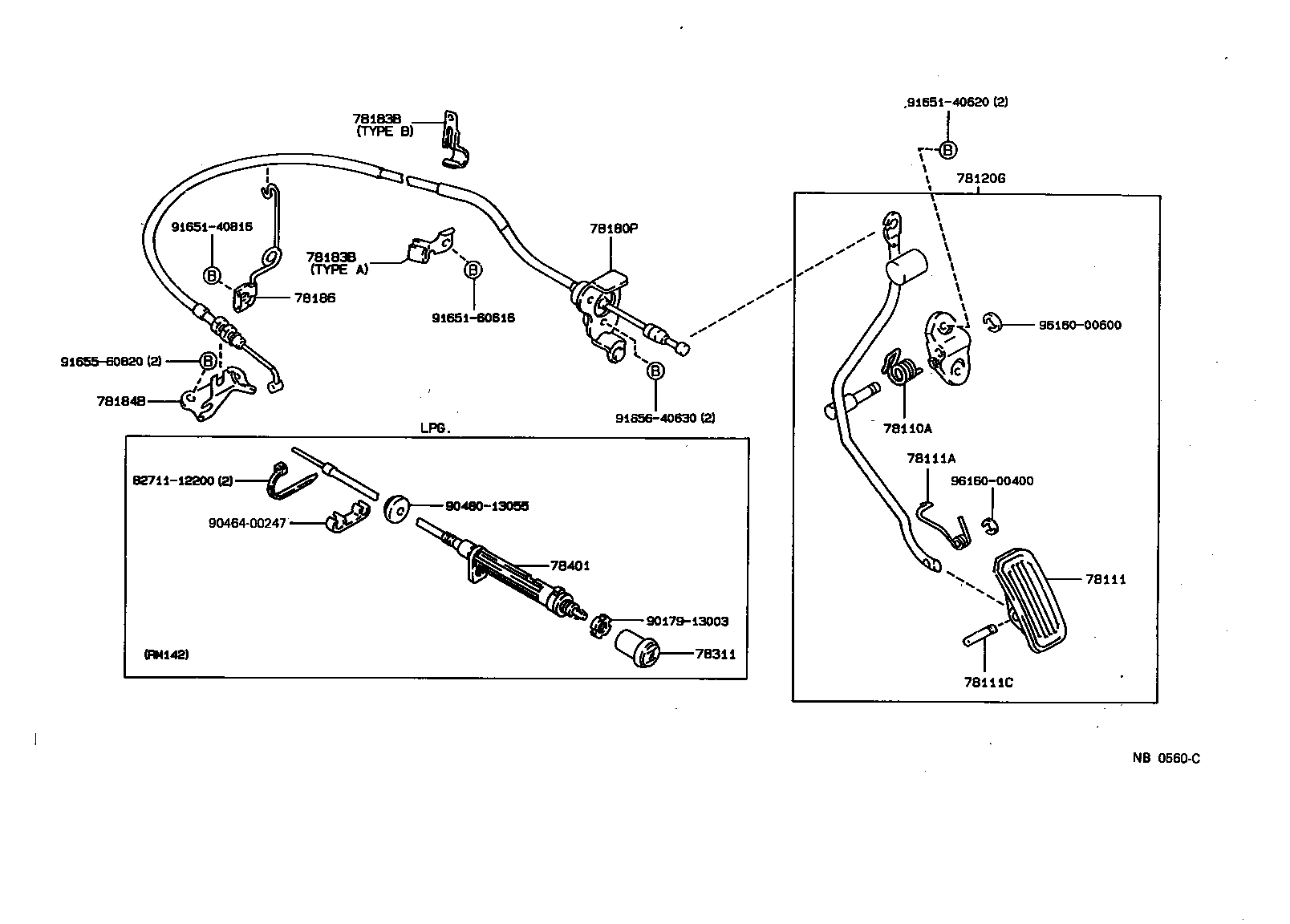

Click highlighted areas on diagram

diagram 78110A 78111 78111A 78111C 78120G 78180P 78183B 78183B 78184B 78186 78311 78401 8271112200 9017913003 9046400247 9048013055 9165140620 9165140816 9165160616 9165560820 9165640630 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18025

AE91,95,EE90..CBR

 1
90508-18025

AE91,95,EE96,97,98;AE92,CE9#,EE90..4F,4FC

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AE9#,CE9#,EE9#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056

AE9#,CE9#,EE9#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AE9#,CE9#,EE9#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12080

AE91,95,EE90..CBR

 1
78120-12080

AE91,95,EE96,97,98;AE92,CE9#,EE90..4F,4FC

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-12840

EE90,97

 1
78180-12840

EE90,96,97..4F..(DX,GL,STD,XE)

 1
78180-1A320

EE90,96,97

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12100

AE91,95,CE90,EE90..CBR,DSL

ﾀｲﾌﾟ A

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12100

AE91,95,CE90,EE90..CBR,DSL

ﾀｲﾌﾟ A

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-10070

EE9#

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12180

EE90,97

 1
Common parts
82711-12200
90179-13003
90464-00247
90480-13055
91651-40620
91651-40816
91651-60616
91655-60820
91656-40630
96160-00400
96160-00600
