EE90-AEHNS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )2E,3E

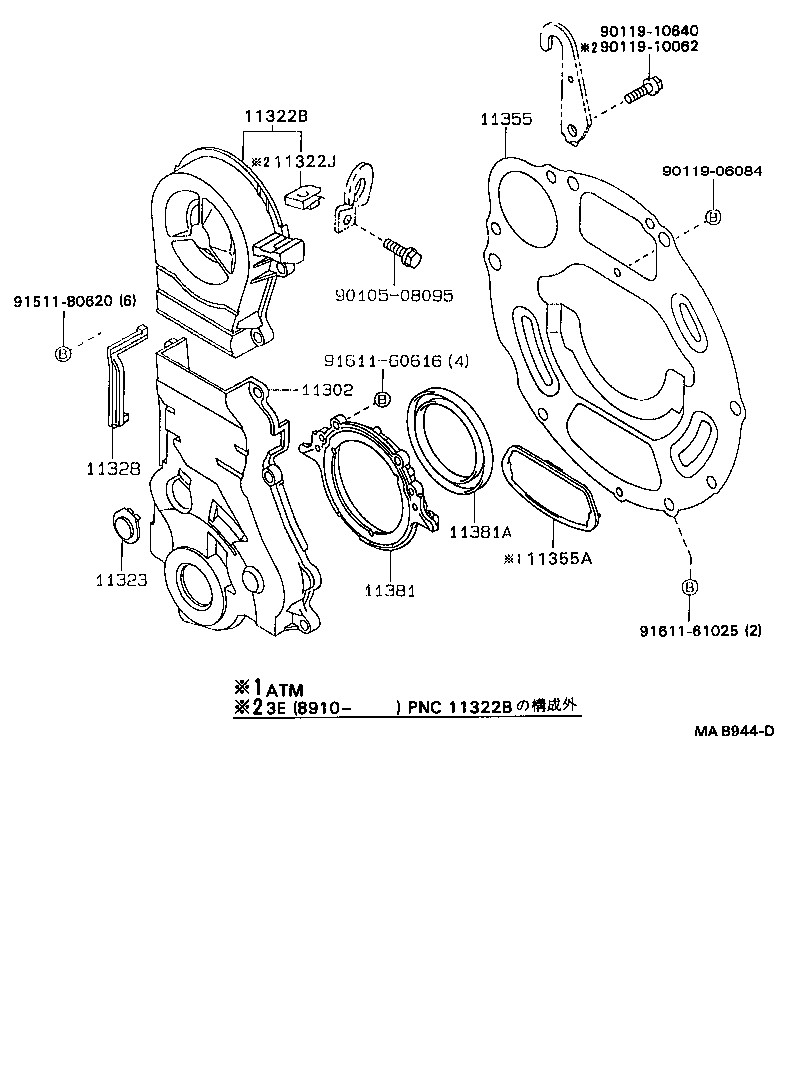

Click highlighted areas on diagram

diagram 11302 11322B 11322J 11323 11328 11355 11355A 11381 11381A 9010508095 9011906084 9011910062 9011910640 91511B0620 9161160616 9161161025
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-11041

2E..EE90

 1
11322B - COVER, TIMING BELT, NO.2
11303-10022

2E..EE90,96,97

 1
11323 - COVER, TIMING GEAR, NO.3
11323-10011

2E,3E..EE9#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-11031

2E..EE90,96,97

 1
11355 - PLATE, REAR END
11355-11011

2E,3E..EE90,96,98..3FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01548

2E,3E..EE90,98..3FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-10020

2E,3E..EE9#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75004

2E..EE90,96,97

 1
90311-75004

2E..EE90..4D

 1
90311-75004

2E..EE90,96,97

 1
Common parts
90105-08095
90119-06084
90119-10062
90119-10640
91511-B0620
91611-60616
91611-61025
