EE90-AEHDS (1987)
Toyota Corolla
ILLUST NO. 1 OF 5(8705- )EE9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
EE9# NO.1 |
1 | ||
| 90980-07293 |
EE9# NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
EE9# NO.1 |
1 | ||
| 90980-07293 |
EE9# NO.2 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1A210 |
CE90,EE90;AE91,95..(FXG,FXL,G,SE)..CBR |
1 | ||
| 82111-1A570 |
CE90,95,EE90;AE92,95,CE97,EE97..FXGT,FXGTV,GT,L,SE;AE91..(FXG,FXL,FXV,FXVS,FXZS,G,LT,SE)..(EFI,EFIS) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-12040 |
AE9#,CE9#,EE9# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1A130 |
EE90..3FC |
1 | ||
| 82121-1E150 |
EE90..3FC |
1 | ||
| 82121-1H110 |
EE90..3FC ｱﾘ(PS) |
1 | ||
| 82121-1H111 |
EE90..3FC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12140 |
AE91,EE90,96,98..3FC |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1A580 |
EE90 |
1 | ||
| 82131-1A581 |
EE90 |
1 | ||
| 82131-1E880 |
EE90 |
1 | ||
| 82131-1E881 |
EE90 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08190 |
EE9# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08253 |
EE90..3FC;AE91,92..EFI,EFIS 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
AE91,92;EE90..3FC 80A,ｵｽ端子,黒 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08190 |
EE9# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08253 |
EE90..3FC;AE91,92..EFI,EFIS 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
AE91,92;EE90..3FC 80A,ｵｽ端子,黒 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08190 |
EE9# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08188 |
AE9#,CE9#,EE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08253 |
EE90..3FC;AE91,92..EFI,EFIS 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
AE91,92;EE90..3FC 80A,ｵｽ端子,黒 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12040 |
EE9# NO.3 |
1 | ||
| 82345-12050 |
EE96..GL;EE96..02S;AE91,95..ATM..CBR;AE92,EE90,97,98..3FC,4F,5F NO.4 |
1 | ||
| 82345-12050 |
EE96..GL;EE96..02S;AE91..ATM..(CBR,EFI);AE92,EE90,97,98..3FC,4F,5F NO.4 |
1 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-12010 |
EE9# |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12120 |
AE91,95,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12070 |
AE91,CE90,EE90..DX,FXD,FXL,TX,XE NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12070 |
AE91,CE90,EE90..DX,FXD,FXL,TX,XE NO.2 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12081 |
AE9#,CE90,EE90..3D,4D,5D |
1 | ||
| 82672-12080 |
AE9#,CE9#,EE9# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE9#,EE9# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE9#,EE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE9#,EE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE9#,EE9# |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12180 |
AE91,EE90 BATTERY TERMINAL |
1 | ||
| 82821-12190 |
AE92,CE9#,EE9# BATTERY TERMINAL |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AE9#,EE9# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
AE9#,CE9#,EE9# NO.1 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
AE9#,CE9#,EE9# NO.1 |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08063 | ||||
| 90119-08443 | ||||
| 90167-45011 | ||||
| 90179-06132 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12300 | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-1A330 | ||||
| 82711-1A400 | ||||
| 82711-1A410 | ||||
| 82711-1A420 | ||||
| 82711-1A430 | ||||
| 82711-1A440 | ||||
| 82711-1A450 | ||||
| 82711-1A500 | ||||
| 82711-1A510 | ||||
| 82711-1A540 | ||||
| 82711-1A630 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-24210 | ||||
| 82711-30130 | ||||
| 82711-95718 | ||||
ILLUST NO. 2 OF 5(8705- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

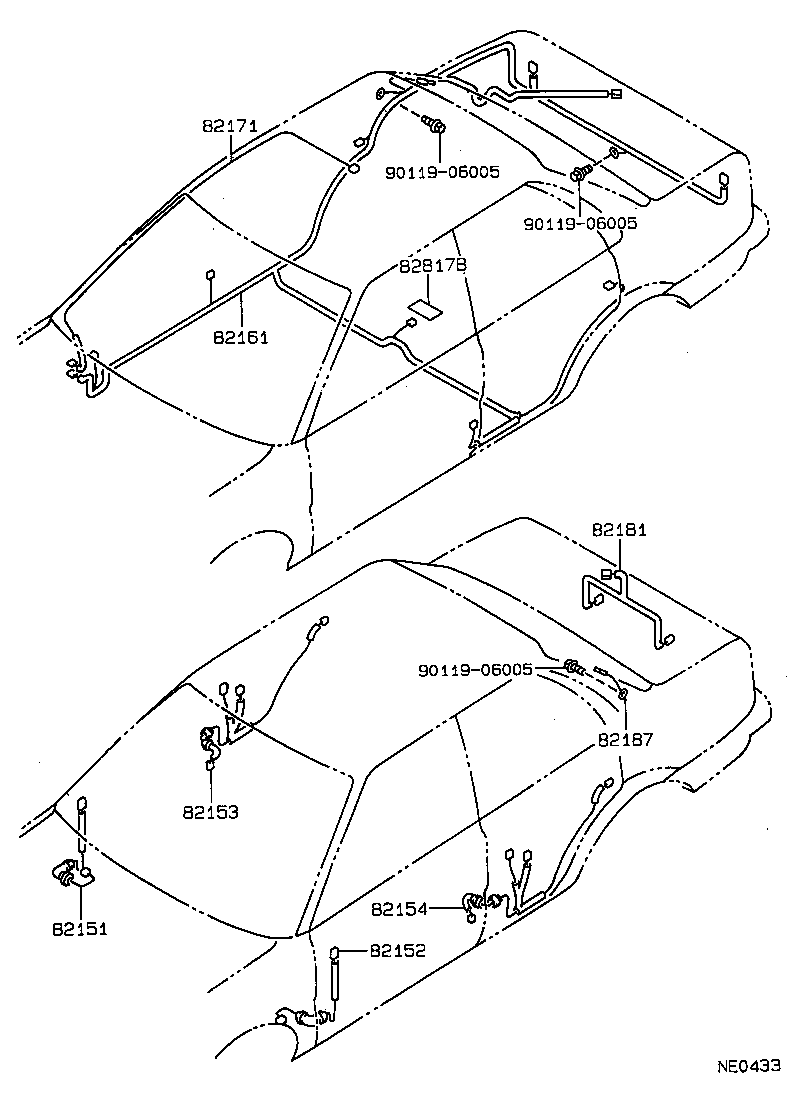

| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12260 |
EE90..TX |
1 | ||
| 82151-12260 |
AE91..5D..EFI;AE92,95,CE90..GT,SE,XE;AE91,EE90..(4D,5D,WG)..(FXG,G,SE,TX,XE)..CBR |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12400 |
AE91..5D..EFI;AE92,95,CE90..GT,SE,XE;AE91,EE90..(4D,5D,WG)..(FXG,G,SE,TX,XE)..CBR |
1 | ||
| 82152-12400 |
CE90..SE;EE90..TX;AE91..4F..TX;AE92,95..GT,SE,XE;AE91..(4D,5D,WG)..(3FC,4FC,5F)..(FXG,FXZI,G,SE,TX,XE) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1A590 |
AE91,CE90,EE90..DX,TX,XE |
1 | ||
| 82161-12460 |
CE90,EE90..DX,TX |
1 | ||
| 82161-12460 |
CE90,EE90..DX,TX,XE |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12140 |
AE91,95,CE90,EE90..(3D,4D,5D)..(CBR,DSL) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-12111 |
AE9#,CE90,EE90..4D |
1 | ||
| 82181-12110 |
AE9#,CE90,EE90..4D |
1 | ||
| 82181-12140 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12130 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE9#,CE9#,EE9# |
1 | ||
| 82817-12140 |
AE91..4D..CBR;AE92,CE90,EE90..4D |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 3 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12040 |
EE9# NO.3 |
1 | ||
| 82345-12050 |
EE96..GL;EE96..02S;AE91,95..ATM..CBR;AE92,EE90,97,98..3FC,4F,5F NO.4 |
1 | ||
| 82345-12050 |
EE96..GL;EE96..02S;AE91..ATM..(CBR,EFI);AE92,EE90,97,98..3FC,4F,5F NO.4 |
1 | ||
| Common parts | ||||
| 82345-32020 | ||||
ILLUST NO. 3 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12040 |
EE9# NO.3 |
1 | ||
| 82345-12050 |
EE96..GL;EE96..02S;AE91,95..ATM..CBR;AE92,EE90,97,98..3FC,4F,5F NO.4 |
1 | ||
| 82345-12050 |
EE96..GL;EE96..02S;AE91..ATM..(CBR,EFI);AE92,EE90,97,98..3FC,4F,5F NO.4 |
1 | ||
| Common parts | ||||
| 82345-12010 | ||||
| 82345-12030 | ||||
| 82345-12040 | ||||
| 82345-12050 | ||||
| 82345-20050 | ||||
| 82345-22051 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-17010 | ||||
| 82982-13010 | ||||
| 82982-14030 | ||||
| 82983-10020 | ||||
| 82984-20010 | ||||
| 82985-13010 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82991-12030 | ||||
| 82991-12040 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16470 | ||||
| 82711-1A620 | ||||
| 82711-22270 | ||||
| 82715-12010 | ||||
| 82715-12020 | ||||
| 82715-12030 | ||||
| 82715-89113 | ||||
