EE90-AEHDS (1987)
Toyota Corolla

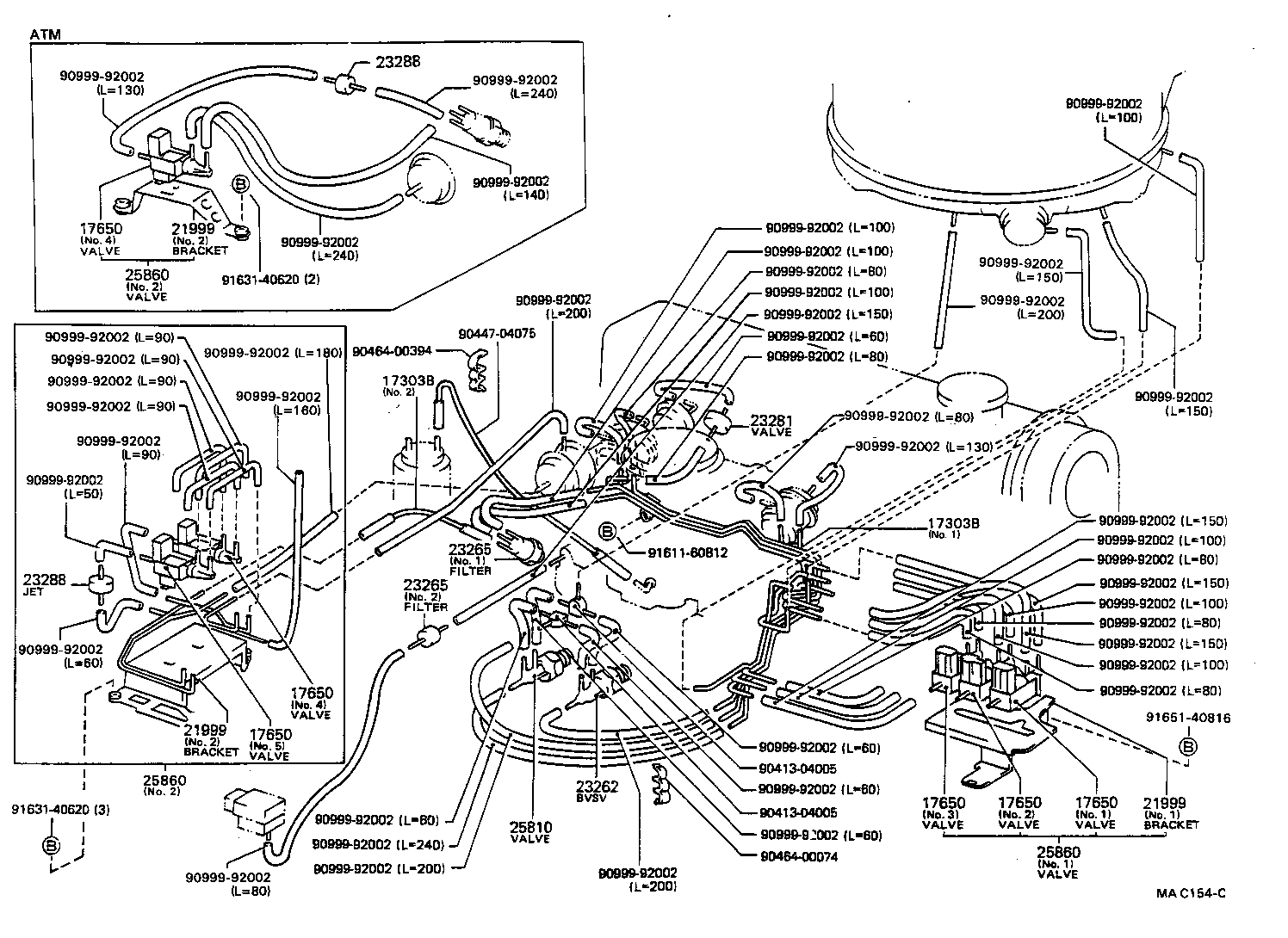

(8705- )2E,3E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
(8905- )2E..EE90,97
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11310 |
2E..EE97;2E..EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 17303-11071 |
2E..EE90,97 |
1 | ||
| 17303-11072 |
2E..EE90,97 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11310 |
2E..EE97;2E..EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 17303-11071 |
2E..EE90,97 |
1 | ||
| 17303-11072 |
2E..EE90,97 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12008 |
2E,3E..EE90,97,98 NO.1 |
1 | ||
| 90910-12009 |
2E,3E..EE90,97,98 NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12008 |
2E,3E..EE90,97,98 NO.1 |
1 | ||
| 90910-12009 |
2E,3E..EE90,97,98 NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12008 |
2E,3E..EE90,97,98 NO.1 |
1 | ||
| 90910-12009 |
2E,3E..EE90,97,98 NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12008 |
2E,3E..EE90,97,98 NO.1 |
1 | ||
| 90910-12009 |
2E,3E..EE90,97,98 NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12008 |
2E,3E..EE90,97,98 NO.1 |
1 | ||
| 90910-12009 |
2E,3E..EE90,97,98 NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12008 |
2E,3E..EE90,97,98 NO.1 |
1 | ||
| 90910-12009 |
2E,3E..EE90,97,98 NO.2 |
1 | ||
| 21999 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 21999-11080 |
2E..EE90..3FC NO.2 |
1 | ||
| 21999 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 21999-11080 |
2E..EE90..3FC NO.2 |
1 | ||
| 21999 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 21999-11080 |
2E..EE90..3FC NO.2 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-11040 |
2E..EE90 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2E..EE90,97 |
1 | ||
| 90917-11027 |
2E..EE90..3FC NO.1 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2E..EE90,97 |
1 | ||
| 90917-11027 |
2E..EE90..3FC NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01099 |
2E..EE90,97 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 89470-12060 |
2E..EE90..3FC NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 89470-12060 |
2E..EE90..3FC NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 89470-12060 |
2E..EE90..3FC NO.2 |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90447-04075 | ||||
| 90464-00074 | ||||
| 90464-00394 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| 91631-40620 | ||||
| 91651-40816 | ||||

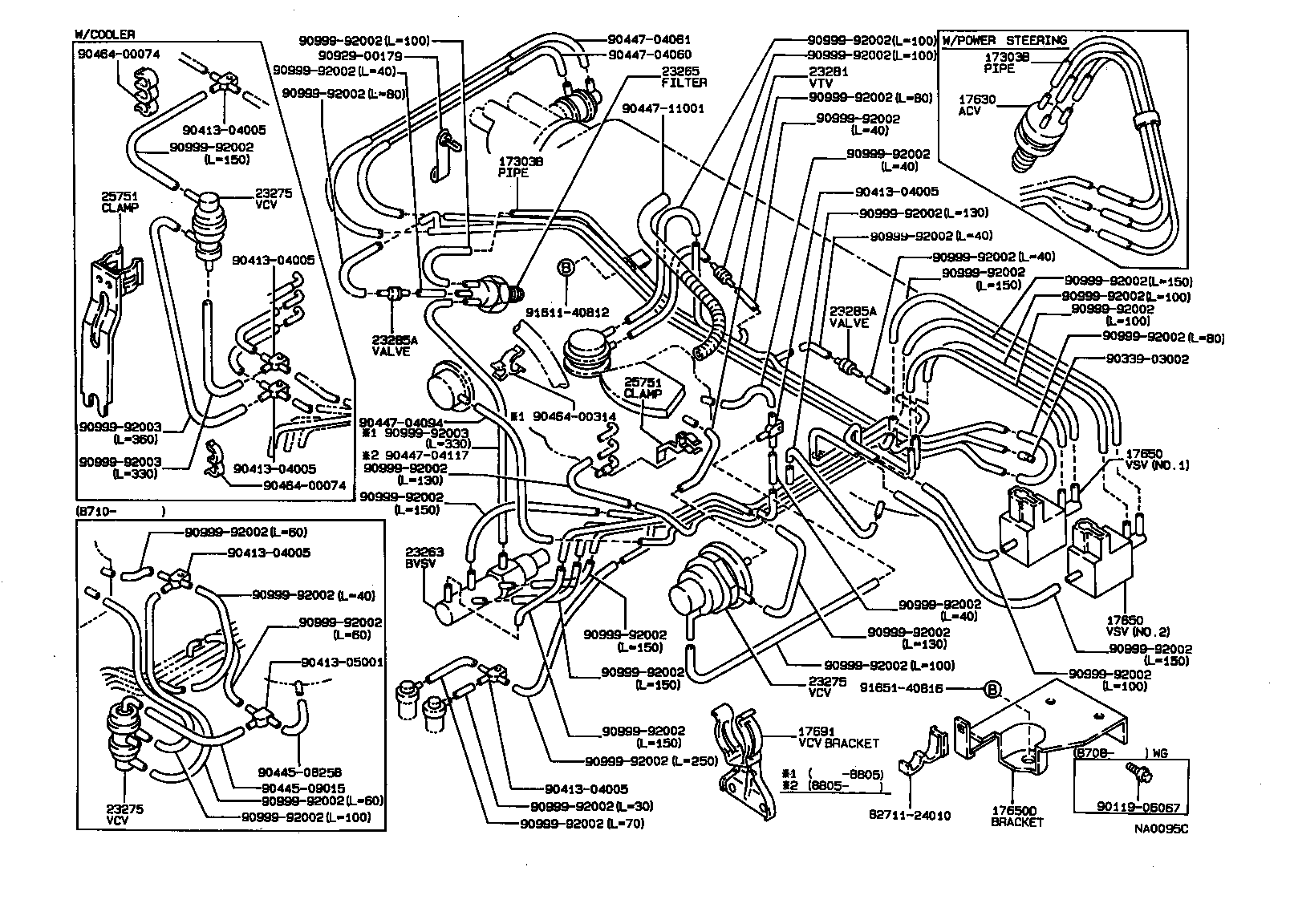

(8705-8905)2E..EE90 ; (8708-8908)2E..EE97
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11310 |
2E..EE97;2E..EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 17303-11310 |
2E..EE97;2E..EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 17303-11071 |
2E..EE90,97 |
1 | ||
| 17303-11071 |
2E..EE90,97 |
1 | ||
| 17303-11072 |
2E..EE90,97 |
1 | ||
| 17303-11072 |
2E..EE90,97 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11310 |
2E..EE97;2E..EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 17303-11310 |
2E..EE97;2E..EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 17303-11071 |
2E..EE90,97 |
1 | ||
| 17303-11071 |
2E..EE90,97 |
1 | ||
| 17303-11072 |
2E..EE90,97 |
1 | ||
| 17303-11072 |
2E..EE90,97 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28020 |
2E,3E..EE97,98;2E..EE90..FXD,FXL,TX,XE |
1 | ||
| 17630-28020 |
2E,3E..EE97,98;2E..EE90..FXD,FXL,TX,XE |
1 | ||
| 17630-28020 |
2E,3E..EE96,97,98;2E..EE90..FXD,FXL,TX,XE |
1 | ||
| 17630-28020 |
2E,3E..EE96,97,98;2E..EE90..FXD,FXL,TX,XE |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12008 |
2E,3E..EE90,97,98 NO.1 |
1 | ||
| 90910-12008 |
2E,3E..EE90,97,98 NO.1 |
1 | ||
| 90910-12009 |
2E,3E..EE90,97,98 NO.2 |
1 | ||
| 90910-12009 |
2E,3E..EE90,97,98 NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12008 |
2E,3E..EE90,97,98 NO.1 |
1 | ||
| 90910-12008 |
2E,3E..EE90,97,98 NO.1 |
1 | ||
| 90910-12009 |
2E,3E..EE90,97,98 NO.2 |
1 | ||
| 90910-12009 |
2E,3E..EE90,97,98 NO.2 |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 21999-11011 |
2E,3E..EE90,97,98 |
1 | ||
| 21999-11011 |
2E,3E..EE90,97,98 |
1 | ||
| 17691 - BRACKET, VACUUM CONTROL VALVE, NO.1 | ||||
| 17691-11010 |
2E..EE90,97 |
1 | ||
| 17691-11010 |
2E..EE90,97 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-02081 |
2E..EE90,97 |
1 | ||
| 90925-02081 |
2E..EE90,97 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2E..EE90,97 |
1 | ||
| 90917-11024 |
2E..EE90,97 |
1 | ||
| 90917-11027 |
2E..EE90..3FC NO.1 |
1 | ||
| 90917-11027 |
2E..EE90..3FC NO.1 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03171 |
2E..EE90,97 |
1 | ||
| 90925-03171 |
2E..EE90,97 |
1 | ||
| 90925-03156 |
2E,3E..EE9# |
1 | ||
| 90925-03156 |
2E,3E..EE9# |
1 | ||
| 90925-03173 |
2E,3E..EE90,98..3FC ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 90925-03173 |
2E,3E..EE90,98..3FC ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03171 |
2E..EE90,97 |
1 | ||
| 90925-03171 |
2E..EE90,97 |
1 | ||
| 90925-03156 |
2E,3E..EE9# |
1 | ||
| 90925-03156 |
2E,3E..EE9# |
1 | ||
| 90925-03173 |
2E,3E..EE90,98..3FC ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 90925-03173 |
2E,3E..EE90,98..3FC ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03171 |
2E..EE90,97 |
1 | ||
| 90925-03171 |
2E..EE90,97 |
1 | ||
| 90925-03156 |
2E,3E..EE9# |
1 | ||
| 90925-03156 |
2E,3E..EE9# |
1 | ||
| 90925-03173 |
2E,3E..EE90,98..3FC ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 90925-03173 |
2E,3E..EE90,98..3FC ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01099 |
2E..EE90,97 |
1 | ||
| 90925-01099 |
2E..EE90,97 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90..4D..3FC |
2 | ||
| 90917-10049 |
2E..EE90..4D..3FC |
2 | ||
| 90917-10049 |
2E,3E..EE90,98 NO.1 |
2 | ||
| 90917-10049 |
2E,3E..EE90,98 NO.1 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2E..EE90..4D..3FC |
2 | ||
| 90917-10049 |
2E..EE90..4D..3FC |
2 | ||
| 90917-10049 |
2E,3E..EE90,98 NO.1 |
2 | ||
| 90917-10049 |
2E,3E..EE90,98 NO.1 |
2 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11040 |
2E..EE90,97 |
1 | ||
| 25751-11040 |
2E..EE90,97 |
1 | ||
| 25751-11020 |
2E,3E..EE9# |
1 | ||
| 25751-11020 |
2E,3E..EE9# |
1 | ||
| 25751-11020 |
2E..EE90,97 ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 25751-11020 |
2E..EE90,97 ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11040 |
2E..EE90,97 |
1 | ||
| 25751-11040 |
2E..EE90,97 |
1 | ||
| 25751-11020 |
2E,3E..EE9# |
1 | ||
| 25751-11020 |
2E,3E..EE9# |
1 | ||
| 25751-11020 |
2E..EE90,97 ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 25751-11020 |
2E..EE90,97 ｱﾘ(ｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 82711-24010 | ||||
| 90119-06067 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90413-05001 | ||||
| 90445-08258 | ||||
| 90445-09015 | ||||
| 90447-04060 | ||||
| 90447-04061 | ||||
| 90447-04094 | ||||
| 90447-04117 | ||||
| 90447-11001 | ||||
| 90464-00074 | ||||
| 90464-00314 | ||||
| 90929-00179 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-40812 | ||||
| 91651-40816 | ||||

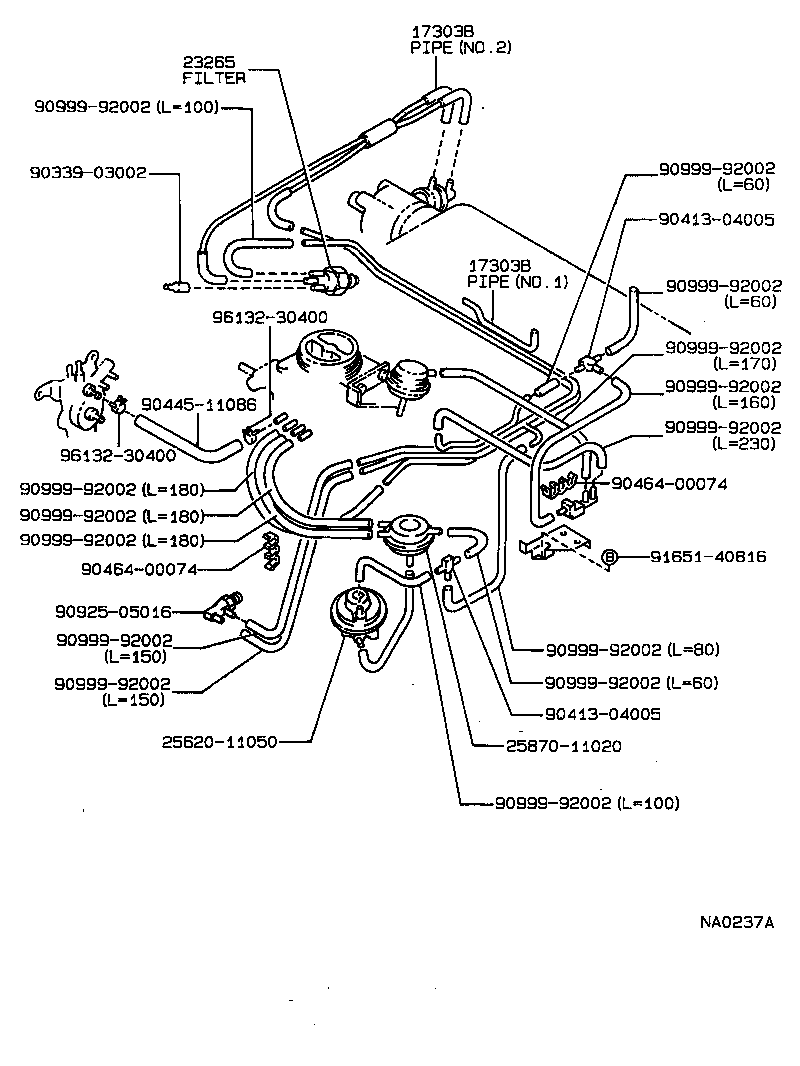

(8708-8908)2E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11310 |
2E..EE97;2E..EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 17303-11071 |
2E..EE90,97 |
1 | ||
| 17303-11072 |
2E..EE90,97 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11310 |
2E..EE97;2E..EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 17303-11071 |
2E..EE90,97 |
1 | ||
| 17303-11072 |
2E..EE90,97 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2E..EE90,97 |
1 | ||
| 90917-11027 |
2E..EE90..3FC NO.1 |
1 | ||
| Common parts | ||||
| 25620-11050 | ||||
| 25870-11020 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90445-11086 | ||||
| 90464-00074 | ||||
| 90925-05016 | ||||
| 90999-92002 | ||||
| 91651-40816 | ||||
| 96132-30400 | ||||
