EE80-EHKNS (1985)

Toyota Corolla

Production May 1985 - Apr 1987
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8505- )EE80

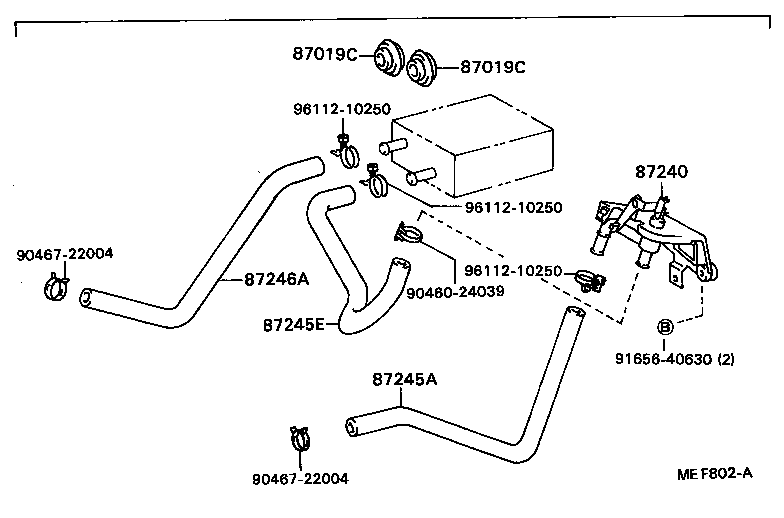

Click highlighted areas on diagram

diagram 87019C 87019C 87240 87245A 87245E 87246A 9046024039 9046722004 9046722004 9165640630 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
96531-13517

AE8#,CE80,EE80

 2
87019C - GROMMET, HEATER HOSE
96531-13517

AE8#,CE80,EE80

 2
87240 - VALVE ASSY, HEATER WATER
87240-12190

AE8#,CE80,EE80

 1
87245A - HOSE, HEATER WATER, INLET A
87245-1A070

EE80

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12670

AE8#,CE80,EE80

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-1A080

EE80

 1
Common parts
90460-24039
90467-22004
91656-40630
96112-10250
