EE80-EHKNS (1985)

Toyota Corolla

Production May 1985 - Apr 1987
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8505- )EE80..4F

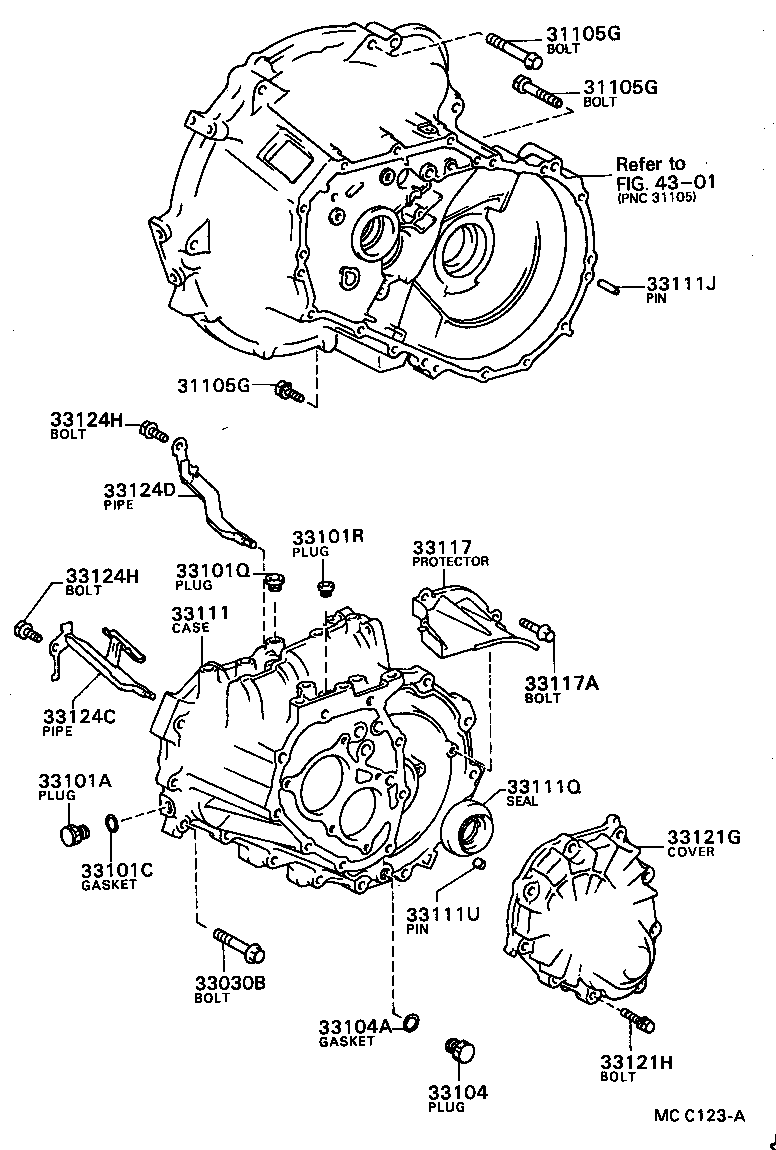

Click highlighted areas on diagram

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33101Q 33101R 33104 33104A 33111 33111J 33111Q 33111U 33117 33117A 33121G 33121H 33124C 33124D 33124H 33124H 4301
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10097

EE80..4F

*10−1.25PX60−22,*10-1.25PX60-22

 1
91611-61025

EE80..4F

*10−1.25PX25−25,*10-1.25PX25-19.8

 1
91621-60614

EE80..4F

*6−1.00PX14−14,*6-1.0PX14-10.4

 3
91619-61260

EE80..4F

*12−1.25PX60−30,*12-1.25PX60-30

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10097

EE80..4F

*10−1.25PX60−22,*10-1.25PX60-22

 1
91611-61025

EE80..4F

*10−1.25PX25−25,*10-1.25PX25-19.8

 1
91621-60614

EE80..4F

*6−1.00PX14−14,*6-1.0PX14-10.4

 3
91619-61260

EE80..4F

*12−1.25PX60−30,*12-1.25PX60-30

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10097

EE80..4F

*10−1.25PX60−22,*10-1.25PX60-22

 1
91611-61025

EE80..4F

*10−1.25PX25−25,*10-1.25PX25-19.8

 1
91621-60614

EE80..4F

*6−1.00PX14−14,*6-1.0PX14-10.4

 3
91619-61260

EE80..4F

*12−1.25PX60−30,*12-1.25PX60-30

 3
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086

EE80..4F

*8−1.25PX45−27.5,*8-1.25PX45-27.5

 3
90105-08064

AE8#,EE80..MTM

*8−1.25PX51−28

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

AE8#,EE80..MTM

 1
33101Q - PLUG, NO.1(FOR TRANSMISSION CASE)
90341-14008

AE80,81,EE80..4F

 1
33101R - PLUG, NO.2(FOR TRANSMISSION CASE)
90341-10065

AE80,81,EE80..4F

 1
33111 - CASE, MANUAL TRANSMISSION
33111-16040

AE8#,EE80..MTM

 1
33111-12170

AE8#,EE80..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

AE8#,CE80,EE80..MTM

長さ=23,外径=8

 6
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34008

AE8#,EE80..MTM

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

AE8#,EE80..MTM

長さ=11,外径=11

 2
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-12011

AE8#,EE80..MTM..(CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX)

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

AE8#,CE80,EE80..MTM

 2
33121G - COVER, MANUAL TRANSMISSION CASE
33102-12010

AE80,81,EE80..4F

 1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
91611-60835

AE8#,EE80..MTM

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-12010

AE8#,EE80..MTM

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12020

AE8#,EE80..MTM

 1
Linked diagrams
4301
