EE80-EHKNS (1985)

Toyota Corolla

Production May 1985 - Apr 1987
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8505- )2ELU

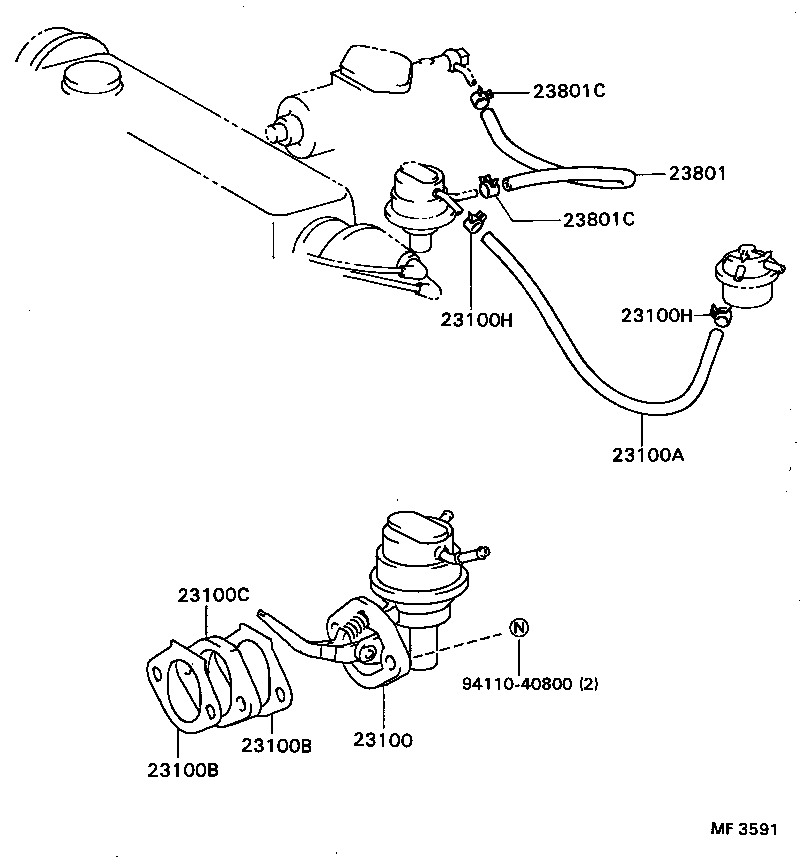

Click highlighted areas on diagram

diagram 23100 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801C 23801C 9411040800
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-11030

2ELU..EE80

 1
23100A - HOSE, FUEL
95332-06040

2ELU..EE80

*H,L=360

 1
95333-06036

2ELU..EE80

*H,L=360

 1
95333-06040

2ELU..EE80

 1
23100B - GASKET, FUEL PUMP
90923-05017

2ELU..EE80

 2
23100B - GASKET, FUEL PUMP
90923-05017

2ELU..EE80

 2
23100C - INSULATOR, FUEL PUMP
23915-10020

2ELU..EE80

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2ELU..EE80

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2ELU..EE80

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06030

2ELU..EE80

*H,L=220

 1
95333-06030

2ELU..EE80

*H,L=300

 1
95333-06022

2ELU..EE80

*H,L=220

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2ELU..EE80

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2ELU..EE80

 2
Common parts
94110-40800
