EE80-EHHNS (1985)
Toyota Corolla
Production
May 1985
-
Apr 1987
Engine
2ELU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8505- )EE80..3FC

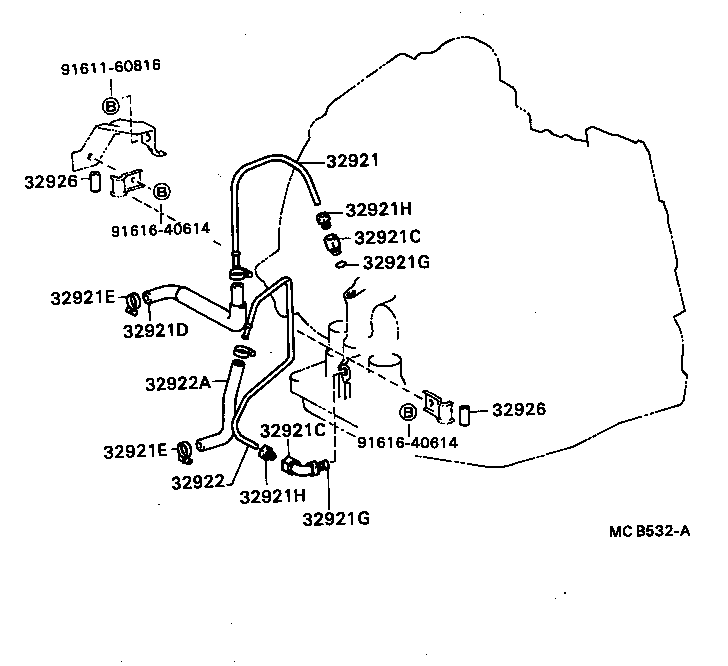

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-12250 |
EE80..3FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE80,81,CE80,EE80..3FC INLET |
1 | ||
| 90407-14003 |
EE80..3FC OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE80,81,CE80,EE80..3FC INLET |
1 | ||
| 90407-14003 |
EE80..3FC OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-12110 |
EE80..3FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE8#,CE80,EE80..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE8#,CE80,EE80..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-12220 |
EE80..3FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
AE8#,CE80,EE80..ATM 長さ=25,内径=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
AE8#,CE80,EE80..ATM 長さ=25,内径=8 |
2 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91616-40614 | ||||
