Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
99132-12034	AE8#,CE80,EE80 12V 3.4W,12V 3.4W	05/1983 - 04/1987	8
90981-11018	AE8#,CE80,EE80..FXG,FXL,FXR,FXT,GL,GT,SE,SR,SX,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W	05/1983 - 04/1987	12
83100G - GLASS, COMBINATION METER
83138-12670	AE81,CE80,EE80..CTD,DX,FXD,FXL,GL W/CLOCK,W/O TACHOMETER	05/1985 - 04/1987	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	AE8#,CE80,EE80 OD=18,W/ANALOGUE METER	05/1983 - 04/1987	8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	AE8#,CE80,EE80 OD=18,W/ANALOGUE METER	05/1983 - 04/1987	8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1A470	AE81,EE80..4F..(FXL,GL) W/O TACHOMETER	05/1985 - 04/1987	1
83109 - BULB, COMBINATION METER, NO.2
83109-24030	AE80,81,CE80,EE80 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	05/1983 - 04/1987	3
83110 - SPEEDOMETER ASSY
83110-1A412	AE81,EE80..4F..(FXL,GL) W/O TACHOMETER	05/1985 - 04/1987	1
83128 - KNOB, TRIP COUNTER
83128-12690	AE80,81,CE80,EE80..CTD,DX,FXD,FXL,GL W/O TACHOMETER	05/1983 - 04/1987	1
83132 - CASE, COMBINATION METER
83132-12510	AE80,81,CE80,EE80..CTD,DX,FXD,FXL,GL W/O TACHOMETER	05/1983 - 04/1987	1
83133 - PLATE, COMBINATION METER, NO.1
83133-1A050	AE81,EE80..3FC,4F W/O TACHOMETER	05/1985 - 04/1987	1
83145A - LENS, METER, NO.2
83145-1A490	AE81,EE80..3FC,4F W/O TACHOMETER	05/1985 - 04/1987	1
83310 - GAGE ASSY, FUEL RECEIVER
83243-12510	AE80,81,CE80,EE80..CTD,DX,FXD,FXL,GL W/O TACHOMETER	05/1983 - 04/1987	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-12730	AE80,81,CE80,EE80..CTD,DX,FXD,FXL,GL W/O TACHOMETER	05/1983 - 04/1987	1
Common parts
90093-00416
90099-00153
90099-00909
90099-00910
90099-00929
90183-05103
93567-55016
94115-40400
94511-00400
Linked diagrams
8401

EE80-EGKNS (1985)

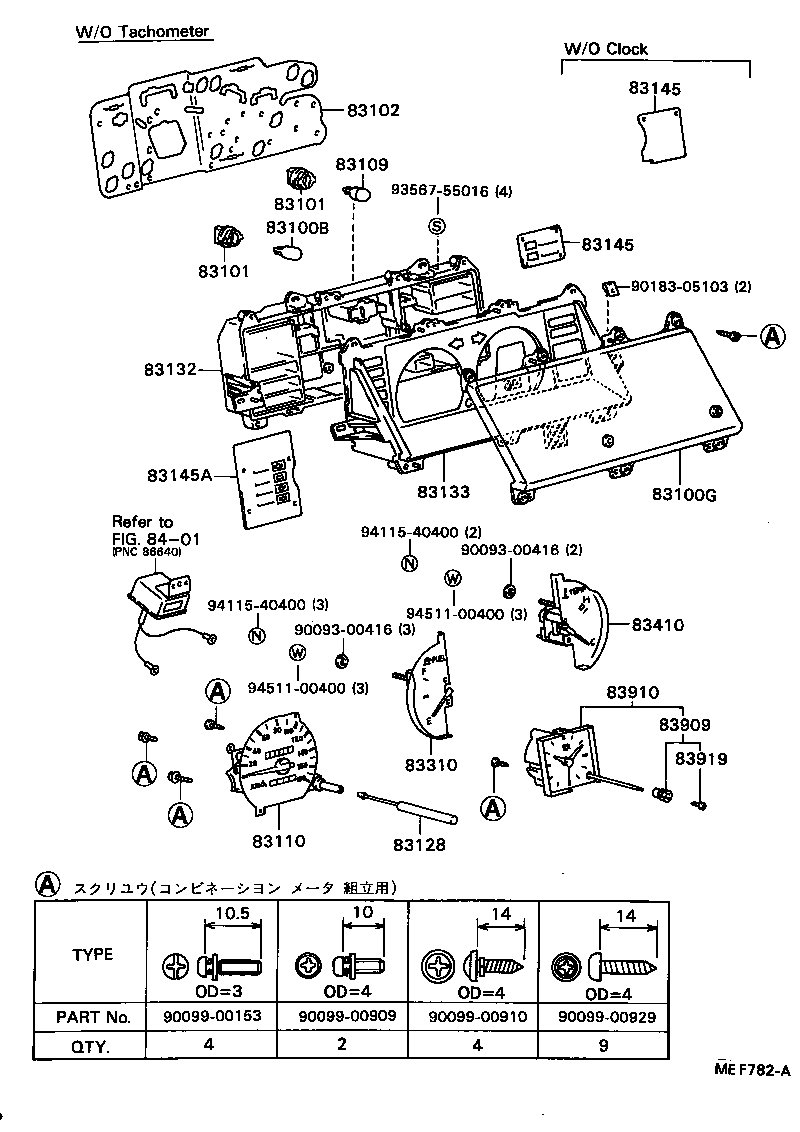

ILLUST NO. 1 OF 2(8505- )CTD,DX,FXD,FXL,GL
