EE80-EGKDS (1985)
Toyota Corolla

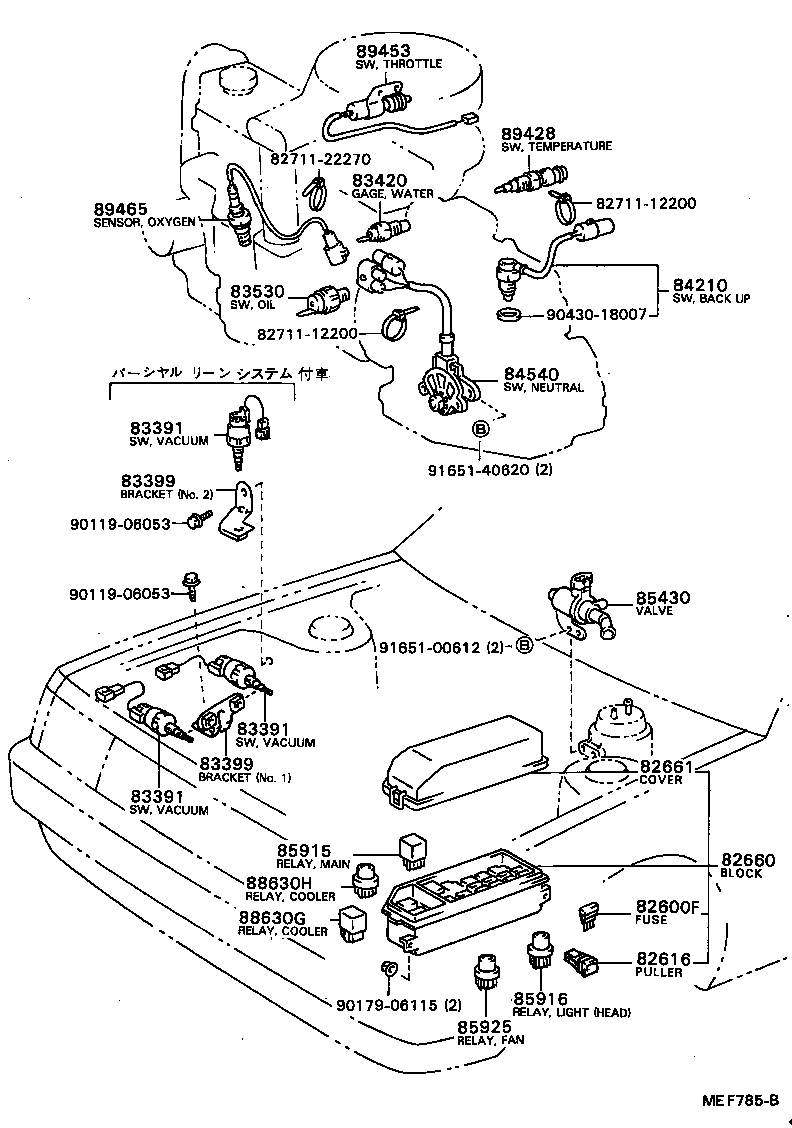

ILLUST NO. 1 OF 4(8505- )EE80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE8#,CE80,EE80 30A,緑,30A |
1 | ||
| 90982-09005 |
AE8#,CE80,EE80 7.5A,7.5A |
7 | ||
| 90982-09003 |
AE8#,CE80,EE80 15A,15A |
8 | ||
| 90982-09004 |
AE8#,CE80,EE80 20A,黄,20A |
2 | ||
| 90982-09002 |
AE8#,CE80,EE80 10A,10A |
8 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AE8#,CE80,EE80 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12090 |
AE8#,CE80,EE80 COWL SIDE |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12140 |
EE80..CTD,FXD MARK=355M,*52 |
1 | ||
| 83391-12130 |
EE80..CTD,FXD MARK=200B,*52 |
1 | ||
| 83391-12120 |
EE80..4F MARK=125M |
1 | ||
| 83391-12130 |
EE80 MARK=200B |
1 | ||
| 83391-22070 |
EE80..CTD,FXD MARK=85M,*52 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12130 |
EE80..CTD,FXD MARK=200B,*52 |
1 | ||
| 83391-12140 |
EE80..CTD,FXD MARK=355M,*52 |
1 | ||
| 83391-12120 |
EE80..4F MARK=125M |
1 | ||
| 83391-12130 |
EE80 MARK=200B |
1 | ||
| 83391-22070 |
EE80..CTD,FXD MARK=85M,*52 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12140 |
EE80..CTD,FXD MARK=355M,*52 |
1 | ||
| 83391-12130 |
EE80..CTD,FXD MARK=200B,*52 |
1 | ||
| 83391-12120 |
EE80..4F MARK=125M |
1 | ||
| 83391-12130 |
EE80 MARK=200B |
1 | ||
| 83391-22070 |
EE80..CTD,FXD MARK=85M,*52 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-12110 |
EE80..4F NO.1 |
1 | ||
| 83399-12090 |
EE80..CTD,FXD NO.1,*52 |
1 | ||
| 83399-27030 |
EE80..CTD,FXD NO.2,*52 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-12110 |
EE80..4F NO.1 |
1 | ||
| 83399-12090 |
EE80..CTD,FXD NO.1,*52 |
1 | ||
| 83399-27030 |
EE80..CTD,FXD NO.2,*52 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EE80 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
AE8#,EE80 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
AE8#,CE80,EE80..MTM |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09003 |
AE81,EE80 AISAN |
1 | ||
| 90925-09004 |
AE81,EE80 DENSO |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85913-30020 |
AE8#,CE80,EE80 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AE8#,CE80,EE80 |
2 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE8#,CE80,EE80 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE8#,CE80,EE80 W/COOLER |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE8#,CE80,EE80 W/COOLER |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10100 |
EE80 COOLING FAN,AISIN |
1 | ||
| 89428-10110 |
EE80 COOLING FAN,DENSO |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-14010 |
EE80 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-10010 |
EE80 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 90119-06053 | ||||
| 90179-06115 | ||||
| 90430-18007 | ||||
| 91651-00612 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF 4(8505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-12010 |
AE8#,CE80,EE80 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19485 |
AE80,81,CE80,EE80..CTD,DX,FXD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19225 |
AE80,81,CE80,EE80..CTD,DX,FXD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12560 |
AE80,81,CE80,EE80..CTD,DX,FXD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
AE80,81,CE80,EE80..CTD,DX,FXD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19195 |
AE80,81,CE80,EE80..CTD,DX,FXD |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-12150 |
AE8#,CE80,EE80..CTD,DX,FXD,GL,GT,SE |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-17030 |
AE8#,CE80,EE80 |
1 | ||
| 84450-12120 |
AE8#,CE80,EE80 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-80001 |
AE80,81,CE80,EE80..CTD,DX,FXD |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-12140 |
AE8#,CE80,EE80..3D,5D2,5D3 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12050 |
AE8#,CE80,EE80 2-BUTTON |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12110 |
AE81,CE80,EE80 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE81,CE80,EE80 14V 1.4W,12V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-12040 |
AE81,CE80,EE80..CTD,DX,FXD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12170 |
AE8#,CE80,EE80 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12181 |
AE82..SE;AE81,CE80,EE80 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AE8#,CE80,EE80 14V 1.4W,12V 1.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
AE82..SE;AE81,CE80,EE80 |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-12010 |
AE8#,CE80,EE80 |
2 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93568-14512 | ||||
