EE80-EGKDS (1985)
Toyota Corolla

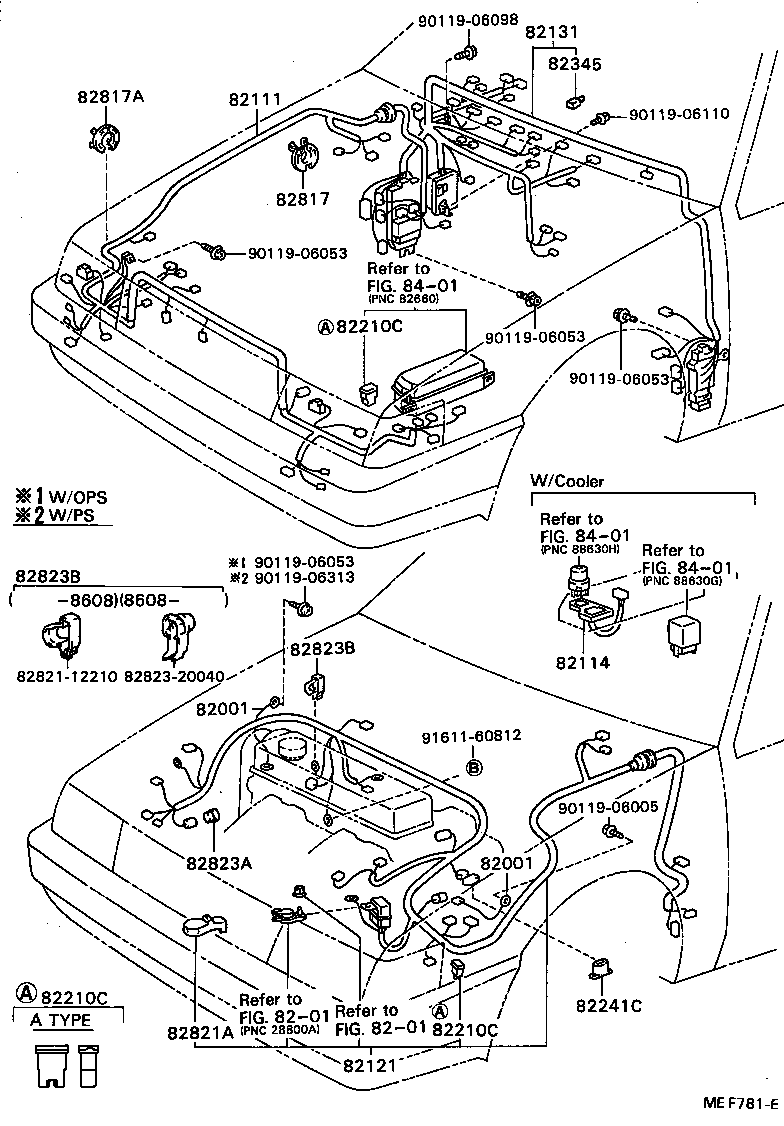

ILLUST NO. 1 OF 4(8505- )EE80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
EE80 L=150,FENDER,LH |
1 | ||
| 90980-07248 |
EE80 L=260,FENDER,RH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
EE80 L=150,FENDER,LH |
1 | ||
| 90980-07248 |
EE80 L=260,FENDER,RH |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-12800 |
EE80 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32010 |
AE8#,CE80,EE80 W/COOLER |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-12751 |
EE80..CTD,FXD *52 |
1 | ||
| 82121-12740 |
EE80 |
1 | ||
| 82121-12750 |
EE80..CTD,FXD *52 |
1 | ||
| 82121-12741 |
EE80 |
1 | ||
| 82121-12742 |
EE80 |
1 | ||
| 82121-12752 |
EE80..CTD,FXD *52 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1A230 |
EE80..CTD,FXD *52 |
1 | ||
| 82131-1A220 |
EE80 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AE80,81,EE80 60A,ﾒｽ端子,黄,60A,A TYPE |
1 | ||
| 90982-08188 |
AE8#,CE80,EE80 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,A TYPE |
3 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AE80,81,EE80 60A,ﾒｽ端子,黄,60A,A TYPE |
1 | ||
| 90982-08188 |
AE8#,CE80,EE80 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,A TYPE |
3 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
AE80,81,EE80 60A,ﾒｽ端子,黄,60A,A TYPE |
1 | ||
| 90982-08188 |
AE8#,CE80,EE80 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,A TYPE |
3 | ||
| 82241C - WIRE, RELAY | ||||
| 82824-12110 |
CE80,EE80..MTM |
1 | ||
| 82824-12110 |
EE80..4F |
1 | ||
| 82345 - DIODE | ||||
| 82345-22010 |
AE81,EE80;AE82..FXT,GT 4-POLE CONNECTOR |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14360 |
AE8#,CE80,EE80 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE8#,CE80,EE80 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12190 |
AE80,81,EE80 |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-30010 |
AE8#,EE80 4-POLE CONNECTOR |
1 | ||
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-20040 |
EE80 |
1 | ||
| 82823-22050 |
EE80 |
1 | ||
| 82821-12210 |
EE80 |
1 | ||
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-20040 |
EE80 |
1 | ||
| 82823-22050 |
EE80 |
1 | ||
| 82821-12210 |
EE80 |
1 | ||
| Common parts | ||||
| 82821-12210 | ||||
| 82823-20040 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-06098 | ||||
| 90119-06110 | ||||
| 90119-06313 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
