EE80-EGKDS (1985)

Toyota Corolla

Production May 1985 - Apr 1987
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8505- )EE80..DX,FXD,FXL,GL

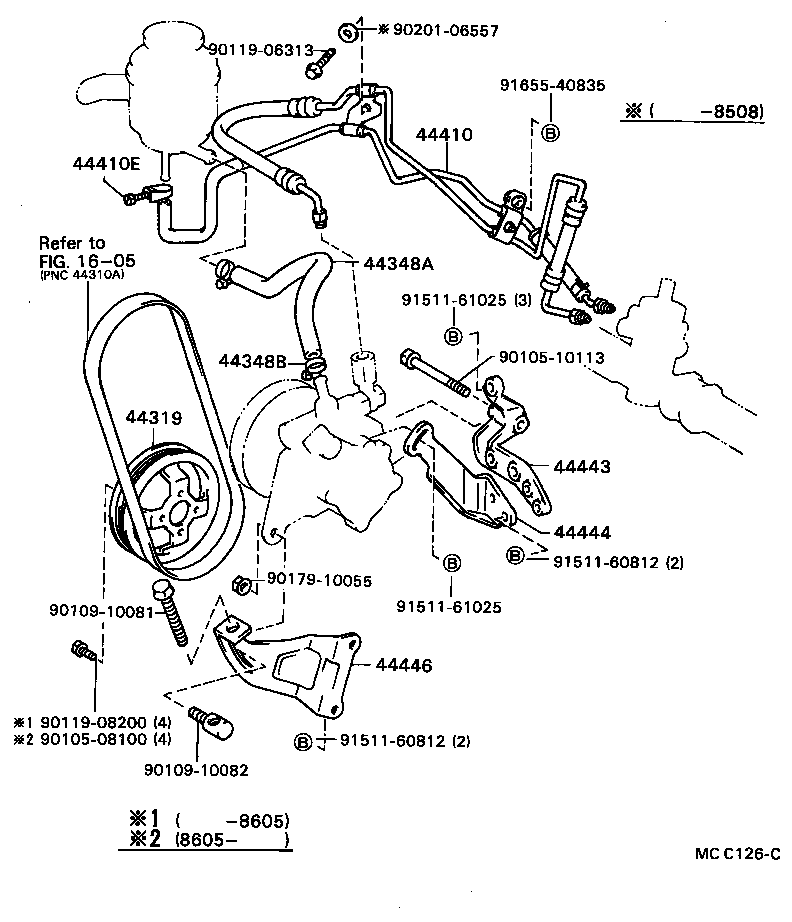

Click highlighted areas on diagram

diagram 1605 44319 44348A 44348B 44410 44410E 44443 44444 44446 9010508100 9010510113 9010910081 9010910082 9011906313 9011908200 9017910055 9020106557 9151160812 9151160812 9151161025 9151161025 9165540835
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
88451-12031

EE80..DX,FXD,FXL,GL

 1
88451-12030

EE80..DX,FXD,FXL,GL

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-12050

EE80..DX,FXD,FXL,GL

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

CE80,EE80..DX,FXD,FXG,FXL,GL,SE

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-12211

EE80..DX,FXD,FXL,GL

 1
44410-12210

EE80..DX,FXD,FXL,GL

 1
44410E - CLAMP(FOR PRESSURE FEED TUBE)
90460-01001

CE80,EE80..DX,FXD,FXG,FXL,GL,SE

 1
44443 - BRACKET, PUMP
44443-10010

EE80..DX,FXD,FXL,GL

 1
44444 - STAY, PUMP, REAR
44444-10010

EE80..DX,FXD,FXL,GL

 1
44446 - STRUT, ADJUSTING
44446-10010

EE80..DX,FXD,FXL,GL

 1
Common parts
90105-08100
90105-10113
90109-10081
90109-10082
90119-06313
90119-08200
90179-10055
90201-06557
91511-60812
91511-61025
91655-40835
Linked diagrams
1605
