EE80-EGKDS (1985)
Toyota Corolla
(8505- )EE80..DX,FXD,FXL,GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-12030 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18008 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-32001 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32010 |
CE80,EE80..DX,FXD,FXG,FXL,GL,SE |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-12130 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-10011 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44311-10010 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12010 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX ﾏｰｸ無し,NO MARK |
1 | ||
| 44313-12030 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX ﾏｰｸ 2,MARK 2 |
1 | ||
| 44313-12020 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX ﾏｰｸ 1,MARK 1 |
1 | ||
| 44313-12040 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX ﾏｰｸ 3,MARK 3 |
1 | ||
| 44313-12050 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX ﾏｰｸ 4,MARK 4 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-10010 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-63002 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12090 |
EE80..DX,FXD,FXL,GL ﾏｰｸ 3,MARK 3 |
1 | ||
| 44325-12060 |
EE80..DX,FXD,FXL,GL ﾏｰｸ無し,NO MARK |
1 | ||
| 44325-12100 |
EE80..DX,FXD,FXL,GL ﾏｰｸ 4,MARK 4 |
1 | ||
| 44325-12080 |
EE80..DX,FXD,FXL,GL ﾏｰｸ 2,MARK 2 |
1 | ||
| 44325-12070 |
EE80..DX,FXD,FXL,GL ﾏｰｸ 1,MARK 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
EE80..DX,FXD,FXL,GL 長さ=25,外径=5.0,L=25 |
1 | ||
| 90250-05017 |
EE80..DX,FXD,FXL,GL 長さ=43.5,外径=5.0,L=43.5 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12080 |
AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX ﾏｰｸ B,MARK B |
1 | ||
| 44330-12070 |
AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX ﾏｰｸ A,MARK A |
1 | ||
| 44330-12100 |
AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX ﾏｰｸ D,MARK D |
1 | ||
| 44330-12110 |
AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX ﾏｰｸ E,MARK E |
1 | ||
| 44330-12120 |
AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX ﾏｰｸ F,MARK F |
1 | ||
| 44330-12090 |
AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX ﾏｰｸ C,MARK C |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX |
1 | ||
| 90501-12447 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-02200 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-12040 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-32013 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44308-32011 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
EE80..DX,FXD,FXL,GL 外径=17.0,内径=13.0,OD=17.6 |
1 | ||
| 90301-22001 |
EE80..DX,FXD,FXL,GL 外径=25.5,内径=22.5,OD=25.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
EE80..DX,FXD,FXL,GL 外径=17.0,内径=13.0,OD=17.6 |
1 | ||
| 90301-22001 |
EE80..DX,FXD,FXL,GL 外径=25.5,内径=22.5,OD=25.5 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-21001 |
EE80..DX,FXD,FXL,GL INNER |
1 | ||
| 90301-56002 |
EE80..DX,FXD,FXL,GL OUTER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-21001 |
EE80..DX,FXD,FXL,GL INNER |
1 | ||
| 90301-56002 |
EE80..DX,FXD,FXL,GL OUTER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-22010 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-30004 |
EE80..DX,FXD,FXL,GL OUTER |
1 | ||
| 90301-13004 |
EE80..DX,FXD,FXL,GL INNER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-30004 |
EE80..DX,FXD,FXL,GL OUTER |
1 | ||
| 90301-13004 |
EE80..DX,FXD,FXL,GL INNER |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12030 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19019 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12040 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX 長さ=14.991,L=14.990-14.992,ROTOR MARK 3 |
10 | ||
| 44345-12020 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX 長さ=14.995,L=14.994-14.996,ROTOR MARK 1 |
10 | ||
| 44345-12030 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX 長さ=14.993,L=14.992-14.994,ROTOR MARK 2 |
10 | ||
| 44345-12050 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX 長さ=14.989,L=14.988-14.990,ROTOR MARK 4 |
10 | ||
| 44345-12010 |
AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX 長さ=14.997,L=14.996-14.998,ROTOR NO MARK |
10 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44360-12020 |
CE80,EE80..DX,FXD,FXG,FXL,GL,SE |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-20030 |
CE80,EE80..DX,FXD,FXG,FXL,GL,SE |
1 | ||
| 44413F - TUBE, PRESSURE FEED, NO.2 | ||||
| 44413-12050 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44413G - BOLT, UNION(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90401-16005 |
EE80..DX,FXD,FXL,GL |
1 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
EE80..DX,FXD,FXL,GL |
2 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
EE80..DX,FXD,FXL,GL |
2 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90179-12022 | ||||
| 90206-30001 | ||||
| 91611-60814 | ||||
| 91611-61016 | ||||
| 91651-40614 | ||||
| 91651-60612 | ||||

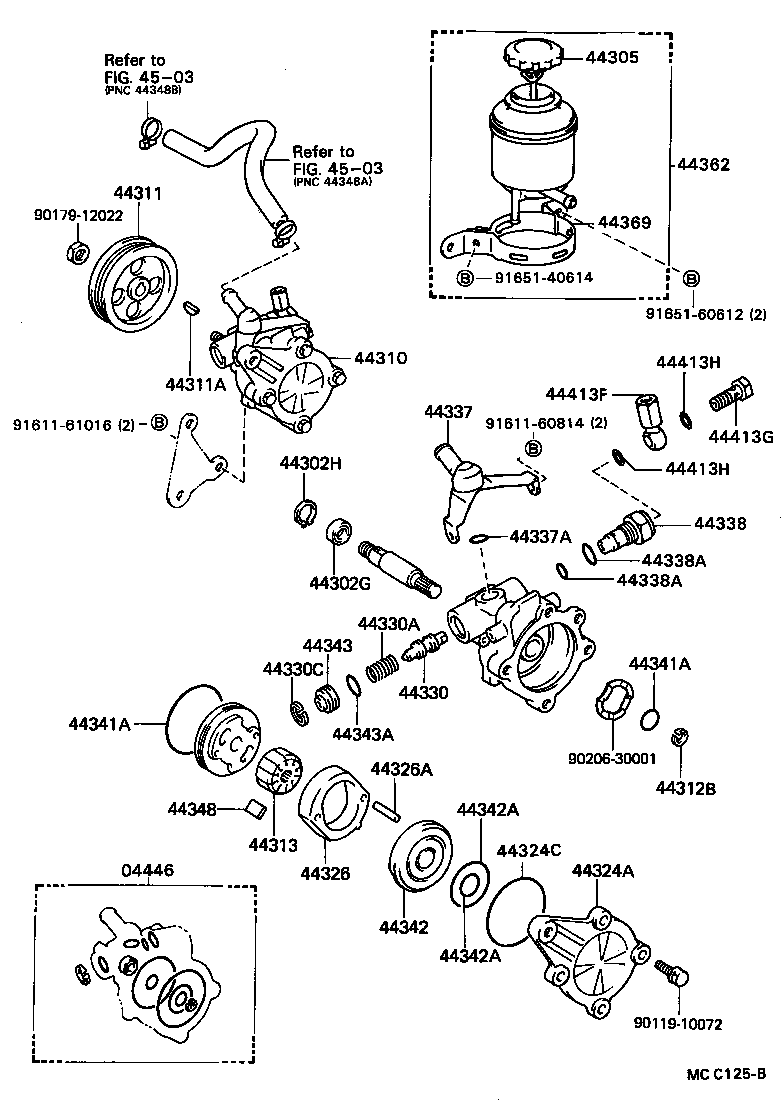

| Linked diagrams | ||||
| 4503 | ||||
