EE80-EGKDS (1985)

Toyota Corolla

Production May 1985 - Apr 1987
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

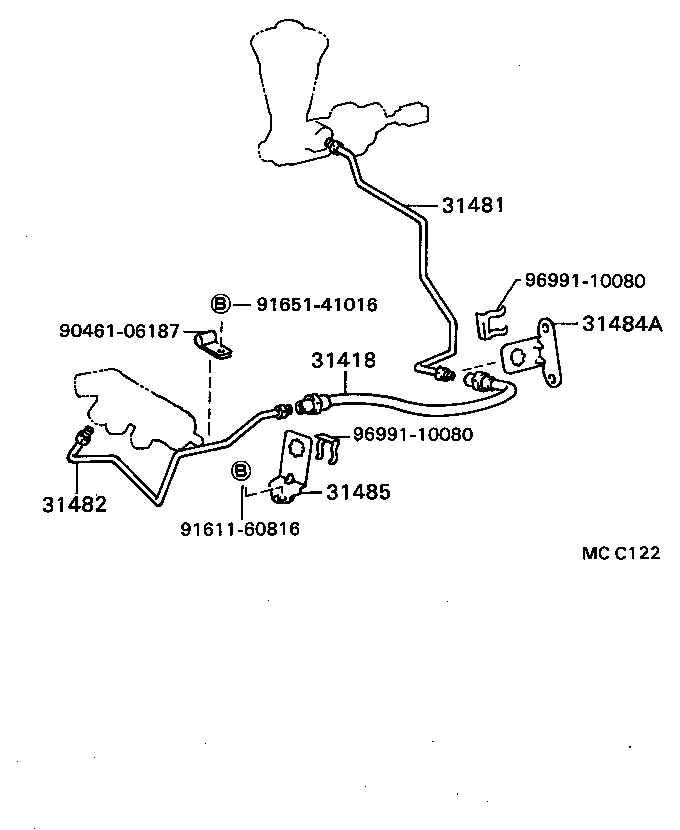

ILLUST NO. 2 OF 2(8505- )EE80..4F

Click highlighted areas on diagram

diagram 31418 31481 31482 31484A 31485 9046106187 9161160816 9165141016 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
96816-50335

AE8#,EE80..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12100

AE8#,EE80..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12030

EE80..4F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12050

AE8#,CE80,EE80..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12080

EE80..4F

 1
Common parts
90461-06187
91611-60816
91651-41016
96991-10080
